Name: Rear Brake Discs And Calipers (Solihull Plant Build) (Front Disc And Caliper Size 20) ((V) FROMJA000001)
Rating: 4.8 (1 reviews)

Rear Brake Discs And Calipers (Solihull Plant Build) (Front Disc And Caliper Size 20) ((V) FROMJA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] - Rear Brake Discs And Calipers (Solihull Plant Build) (Front Disc And Caliper Size 20) ((V)...

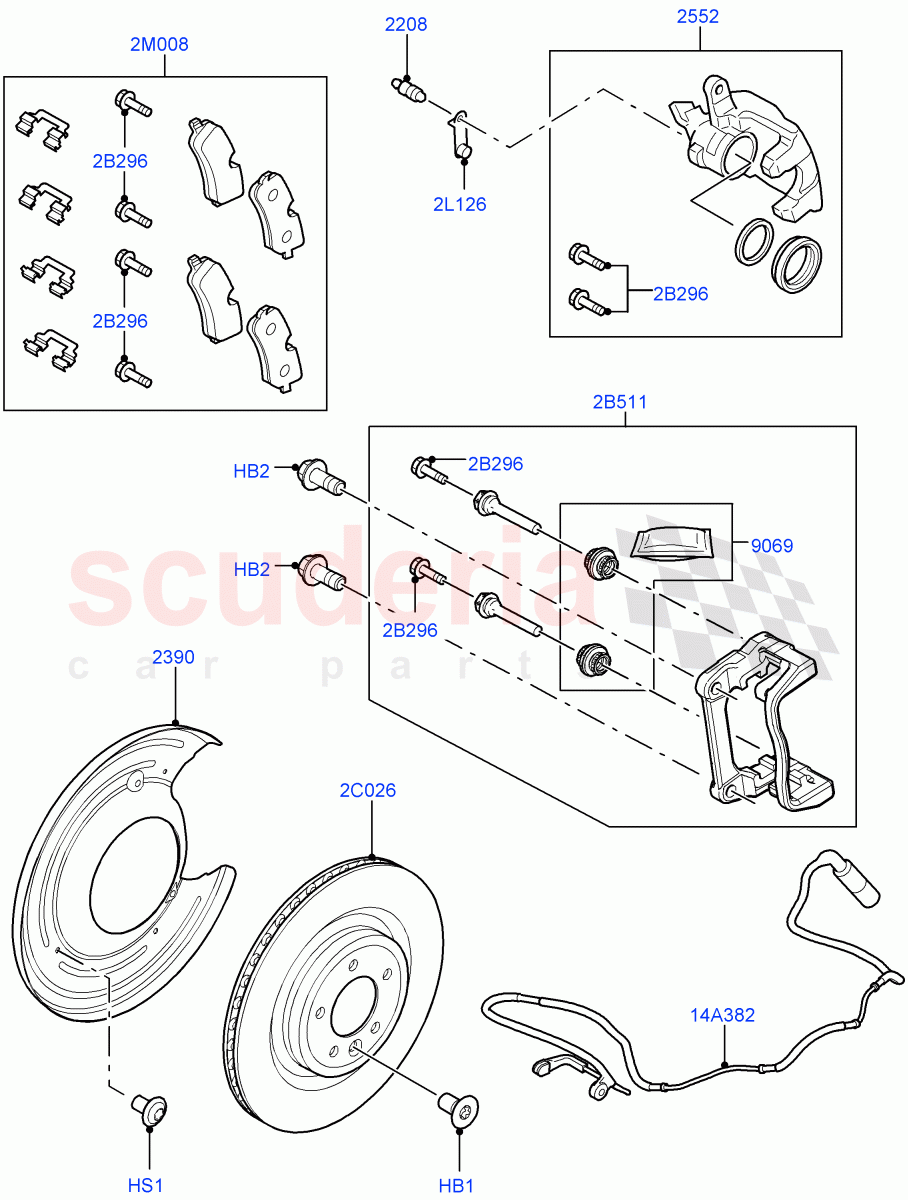

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR002080	BOLT	$3.22	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	SYG000013	BOLT	$3.42	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR018509	SCREW	$1.25	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR015523	SCREW - BLEED	$6.77	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR082225	SHIELD - BRAKE DISC SPLASH	$97.70	To Order
	LR082553	SHIELD - BRAKE DISC SPLASH	$95.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR102243	CALIPER - BRAKE	$282.31	To Order
	LR102246	CALIPER - BRAKE	$282.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015525	COVER - DUST	$24.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031319	BOLT	$3.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR110403	BRACKET - BRAKE CALIPER	$334.46	To Order
	LR110404	BRACKET - BRAKE CALIPER	$344.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR099038	DISC - BRAKE	$193.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084117	CAP - BLEED SCREW	$11.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123717	KIT - BRAKE LINING	$235.68	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084071	WIRE - BRAKE PAD WEAR WARNING	$36.69	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR002080	BOLT IN STOCK	LR002080 BOLT M10 X 20MM, Torx / From: JA000001 IN STOCK	$3.22	2
HB2	SYG000013	BOLT IN STOCK	SYG000013 BOLT External Torx Head, M12 X 35MM / From: JA000001 IN STOCK	$3.42	4
HS1	LR018509	SCREW IN STOCK	LR018509 SCREW M6 X 10MM, Torx / From: JA000001 IN STOCK	$1.25	6
2B296	LR031319	BOLT IN STOCK	LR031319 BOLT Pin - Guide / From: JA000001 IN STOCK	$3.34	4
2B511	LR110403	BRACKET - BRAKE CALIPER	LR110403 BRACKET - BRAKE CALIPER RH / From: JA000001	$334.46	1
2B511	LR110404	BRACKET - BRAKE CALIPER	LR110404 BRACKET - BRAKE CALIPER LH / From: JA000001	$344.96	1
2C026	LR099038	DISC - BRAKE	LR099038 DISC - BRAKE 365mm / From: JA000001	$193.20	2
2L126	LR084117	CAP - BLEED SCREW	LR084117 CAP - BLEED SCREW From: JA000001	$11.94	2
2M008	LR123717	KIT - BRAKE LINING	LR123717 KIT - BRAKE LINING Axle Set, With Clips / From: JA000001	$235.68	1
14A382	LR084071	WIRE - BRAKE PAD WEAR WARNING	LR084071 WIRE - BRAKE PAD WEAR WARNING From: JA000001	$36.69	1
2208	LR015523	SCREW - BLEED IN STOCK	LR015523 SCREW - BLEED From: JA000001 IN STOCK	$6.77	2
2390	LR082225	SHIELD - BRAKE DISC SPLASH	LR082225 SHIELD - BRAKE DISC SPLASH RH / From: JA000001	$97.70	1
2390	LR082553	SHIELD - BRAKE DISC SPLASH	LR082553 SHIELD - BRAKE DISC SPLASH LH / From: JA000001	$95.89	1
2552	LR102243	CALIPER - BRAKE	LR102243 CALIPER - BRAKE RH / From: JA000001	$282.31	1
2552	LR102246	CALIPER - BRAKE	LR102246 CALIPER - BRAKE LH / From: JA000001	$282.31	1
9069	LR015525	COVER - DUST	LR015525 COVER - DUST Boot / From: JA000001	$24.44	2
