Name: Front Brake Pipes (Solihull Plant Build) (RHD) ((V) FROMHA000001)
Rating: 4.6 (1 reviews)

Front Brake Pipes (Solihull Plant Build) (RHD) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] - Front Brake Pipes (Solihull Plant Build) (RHD) ((V) FROMHA000001)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR033441	CLIP - SPECIAL	$4.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033442	CLIP - SPECIAL	$5.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033443	CLIP - SPECIAL	$32.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033450	CLIP - SPECIAL	$23.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR047052	CONNECTOR - PIPE	$143.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR079543	HOSE - BRAKE	$88.14	To Order
	LR081602	HOSE - BRAKE	$136.96	To Order
	LR113970	HOSE - BRAKE	$136.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR079544	HOSE - BRAKE	$87.96	To Order
	LR113969	HOSE - BRAKE	$97.40	To Order
	LR113969	HOSE - BRAKE	$97.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR155148	TUBE - BRAKE	$87.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033387	TUBE - BRAKE	$249.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087166	TUBE - BRAKE	$181.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033427	GROMMET - BRAKE PIPE	$25.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033453	NUT - CONNECTING	$9.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033452	NUT - CONNECTING	$10.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033454	NUT - CONNECTING	$21.72	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR033455	NUTS	$20.79	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	EJP7813	CLIP - HOSE	$2.46	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR033408	SEAL - BRAKE TUBE FOAM TYPE	$5.51	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033413	SEAL - BRAKE TUBE FOAM TYPE	$7.13	To Order

View All

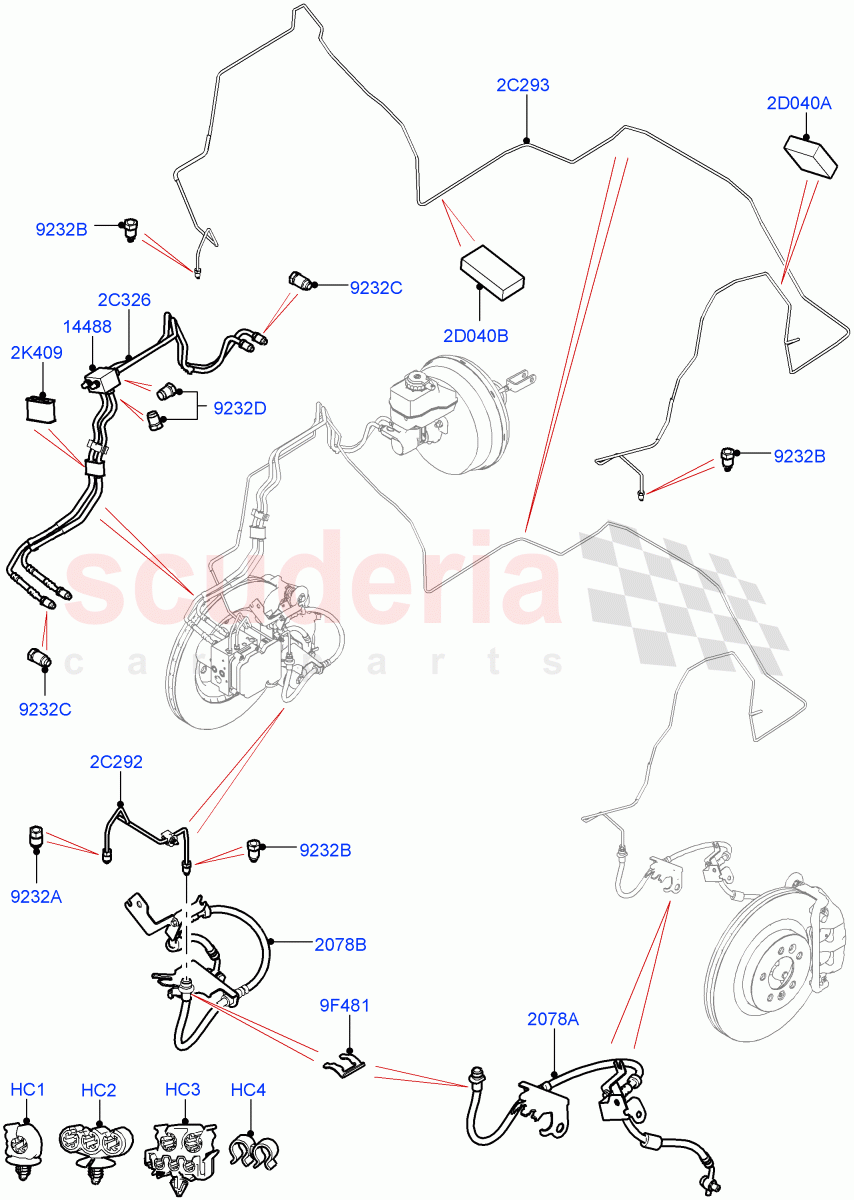

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR033441	CLIP - SPECIAL	LR033441 CLIP - SPECIAL 5MM, Single	$4.46	1
HC2	LR033442	CLIP - SPECIAL	LR033442 CLIP - SPECIAL 5MM, Triple	$5.66	4
HC3	LR033443	CLIP - SPECIAL	LR033443 CLIP - SPECIAL 5 Way, 5MM, 8MM	$32.80	1
HC4	LR033450	CLIP - SPECIAL	LR033450 CLIP - SPECIAL 8MM, Double	$23.55	2
2C292	LR155148	TUBE - BRAKE	LR155148 TUBE - BRAKE Modulator To RH Front	$87.84	1
2C293	LR033387	TUBE - BRAKE	LR033387 TUBE - BRAKE Modulator To LH Front	$249.56	1
2C326	LR087166	TUBE - BRAKE	LR087166 TUBE - BRAKE Modulator To Brake Master Cylinder	$181.66	1
2D040A	LR033408	SEAL - BRAKE TUBE FOAM TYPE	LR033408 SEAL - BRAKE TUBE FOAM TYPE 5MM	$5.51	1
2D040B	LR033413	SEAL - BRAKE TUBE FOAM TYPE	LR033413 SEAL - BRAKE TUBE FOAM TYPE 5MM	$7.13	1
2K409	LR033427	GROMMET - BRAKE PIPE	LR033427 GROMMET - BRAKE PIPE 8MM	$25.38	1
9F481	EJP7813	CLIP - HOSE IN STOCK	EJP7813 CLIP - HOSE Brake Hose IN STOCK	$2.46	2
2078A	LR079543	HOSE - BRAKE	LR079543 HOSE - BRAKE LH, Includes Bracket, To Caliper / To: HA999999	$88.14	1
2078A	LR081602	HOSE - BRAKE	LR081602 HOSE - BRAKE LH, Includes Bracket, To Caliper / From: JA000001 / To: KA085237	$136.96	1
2078A	LR113970	HOSE - BRAKE	LR113970 HOSE - BRAKE LH, Includes Bracket, To Caliper / From: KA085238	$136.96	1
2078B	LR079544	HOSE - BRAKE	LR079544 HOSE - BRAKE RH, Includes Bracket, To Caliper / To: HA999999	$87.96	1
2078B	LR113969	HOSE - BRAKE	LR113969 HOSE - BRAKE RH, Includes Bracket, To Caliper / From: JA000001 / To: KA085258	$97.40	1
2078B	LR113969	HOSE - BRAKE	LR113969 HOSE - BRAKE RH, Includes Bracket, To Caliper / From: KA085259	$97.40	1
9232A	LR033453	NUT - CONNECTING	LR033453 NUT - CONNECTING M12	$9.65	1
9232B	LR033452	NUT - CONNECTING	LR033452 NUT - CONNECTING M10	$10.77	3
9232C	LR033454	NUT - CONNECTING IN STOCK	LR033454 NUT - CONNECTING M14 IN STOCK	$21.72	4
9232D	LR033455	NUTS IN STOCK	LR033455 NUTS M12 IN STOCK	$20.79	4
14488	LR047052	CONNECTOR - PIPE	LR047052 CONNECTOR - PIPE 6 Way, Bleed Block	$143.12	1

Front Brake Pipes (Solihull Plant Build) (Rhd) ((V) Fromha000001)

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol]

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] - Front Brake Pipes (Solihull Plant Build) (RHD) ((V) FROMHA000001)
