Name: Front Brake Pipes (Nitra Plant Build) (RHD) ((V) FROMM2000001)
Rating: 5.0 (1 reviews)

View All

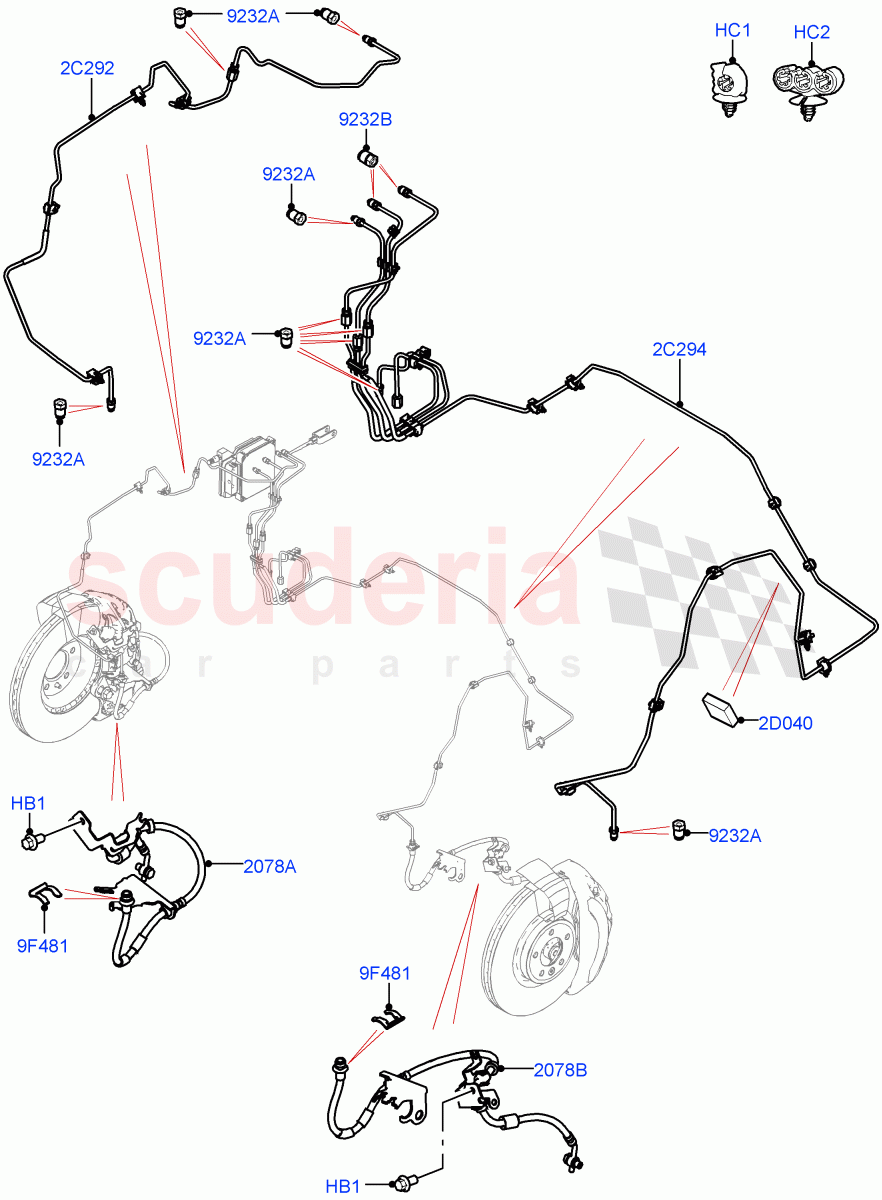

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108166	BOLT	$0.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR033441	CLIP - SPECIAL	$4.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033442	CLIP - SPECIAL	$5.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113969	HOSE - BRAKE	$97.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113970	HOSE - BRAKE	$137.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR142052	TUBE - BRAKE	$53.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033408	SEAL - BRAKE TUBE FOAM TYPE	$5.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033452	NUT - CONNECTING	$10.83	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033453	NUT - CONNECTING	$9.71	To Order

Photo	Part No	Description	Price (each)	Stock
	EJP7813	CLIP - HOSE	$2.47	IN STOCK

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108166	BOLT IN STOCK	FS108166 BOLT Bracket, Hexagonal Head, M8 X 16MM / From: M2000001 IN STOCK	$0.68	4
HC1	LR033441	CLIP - SPECIAL	LR033441 CLIP - SPECIAL 5MM, Single / From: M2000001	$4.48	11
HC2	LR033442	CLIP - SPECIAL	LR033442 CLIP - SPECIAL 5MM, Triple / From: M2000001	$5.69	3
2C292	LR142052	TUBE - BRAKE	LR142052 TUBE - BRAKE Modulator To RH Front / From: M2000001	$53.85	1
2C294	LR142044	PIPE - BRAKE	LR142044 PIPE - BRAKE Modulator To Brake Hose / From: M2000001 / To: N2458366	$86.50	1
2C294	LR158095	PIPE - BRAKE	LR158095 PIPE - BRAKE Modulator To Brake Hose / From: N2458367	$86.50	1
2D040	LR033408	SEAL - BRAKE TUBE FOAM TYPE	LR033408 SEAL - BRAKE TUBE FOAM TYPE 5MM / From: M2000001	$5.55	3
9F481	EJP7813	CLIP - HOSE IN STOCK	EJP7813 CLIP - HOSE Brake Hose / From: M2000001 IN STOCK	$2.47	2
2078A	LR113969	HOSE - BRAKE	LR113969 HOSE - BRAKE RH, Includes Bracket, To Caliper / From: M2000001	$97.98	1
2078B	LR113970	HOSE - BRAKE	LR113970 HOSE - BRAKE LH, Includes Bracket, To Caliper / From: M2000001	$137.77	1
9232A	LR033452	NUT - CONNECTING	LR033452 NUT - CONNECTING M10 / From: M2000001	$10.83	10
9232B	LR033453	NUT - CONNECTING	LR033453 NUT - CONNECTING M12 / From: M2000001	$9.71	2

Front Brake Pipes (Nitra Plant Build) (Rhd) ((V) Fromm2000001)

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol]
