Master Cylinder - Brake System (Solihull Plant Build) ((V) Fromha000001)

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] - Master Cylinder - Brake System (Solihull Plant Build) ((V) FROMHA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR012898 NUT - FLANGED $1.97 To Order
Photo Part No Description Price (each) Stock
LR081598 O-RING $3.21 To Order
Photo Part No Description Price (each) Stock
LR081597 MASTER CYLINDER - BRAKE $311.09 To Order
LR099178 MASTER CYLINDER - BRAKE $249.98 To Order
Photo Part No Description Price (each) Stock
LR091038 CAP - FILLER $47.45 To Order
Photo Part No Description Price (each) Stock
LR038635 FILTER - BRAKE RESERVOIR $11.14 To Order
Photo Part No Description Price (each) Stock
LR146955 SEAL $5.65 To Order
Photo Part No Description Price (each) Stock
LR033628 RESERVOIR - BRAKE FLUID $153.33 To Order
LR124816 RESERVOIR - BRAKE FLUID $175.90 To Order
View All

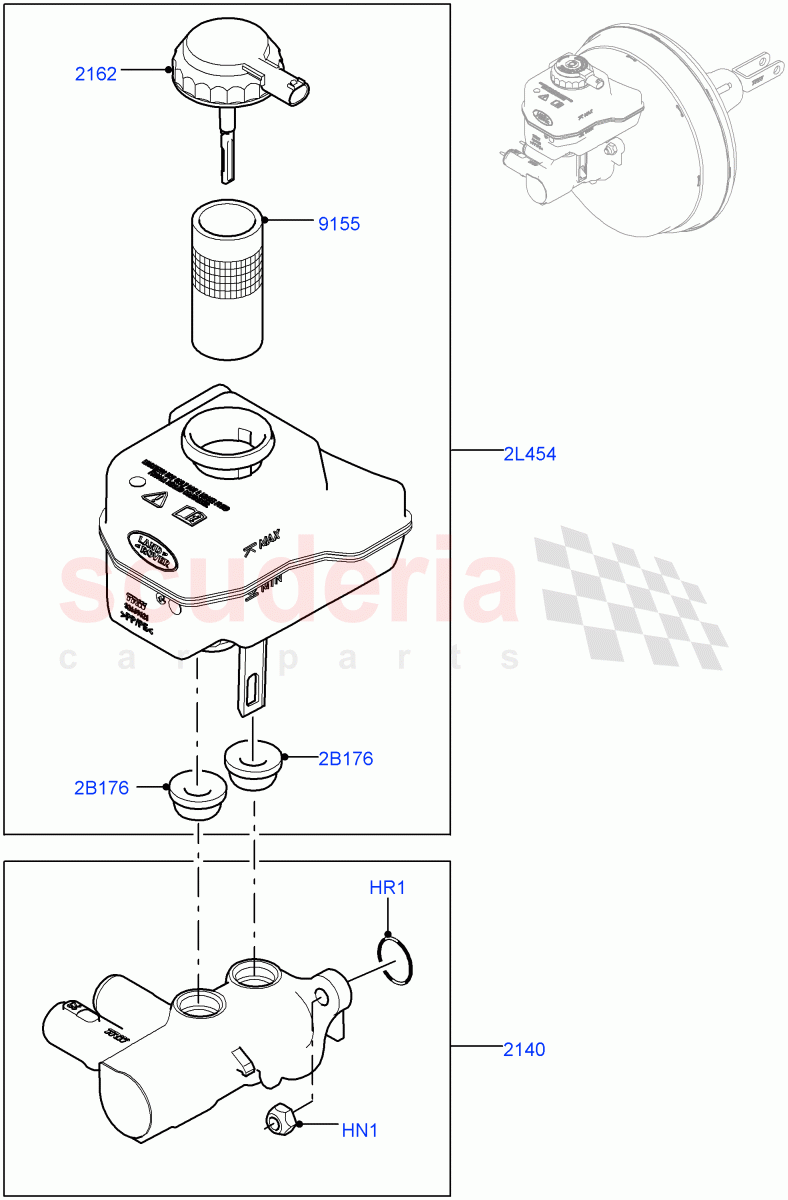

Master Cylinder - Brake System (Solihull Plant Build) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 LR012898
NUT - FLANGED
M8 		$1.97 2
HR1 LR081598
O-RING
Brake Master Cylinder 		$3.21 1
2B176 LR146955
SEAL 		$5.65 2
2L454 LR033628
RESERVOIR - BRAKE FLUID
To: KA091847 		$153.33 1
2L454 LR124816
RESERVOIR - BRAKE FLUID
From: KA091848 		$175.90 1
2140 LR081597
MASTER CYLINDER - BRAKE
To: HA999999 		$311.09 1
2140 LR099178
MASTER CYLINDER - BRAKE
From: JA000001 		$249.98 1
2162 LR091038
CAP - FILLER 		$47.45 1
9155 LR038635
FILTER - BRAKE RESERVOIR
Brake Fluid 		$11.14 1
