Name: Rear Brake Pipes (Nitra Plant Build) (LHD) ((V) FROMK2000001, (V) TOL2999999)
Rating: 4.5 (1 reviews)

View All

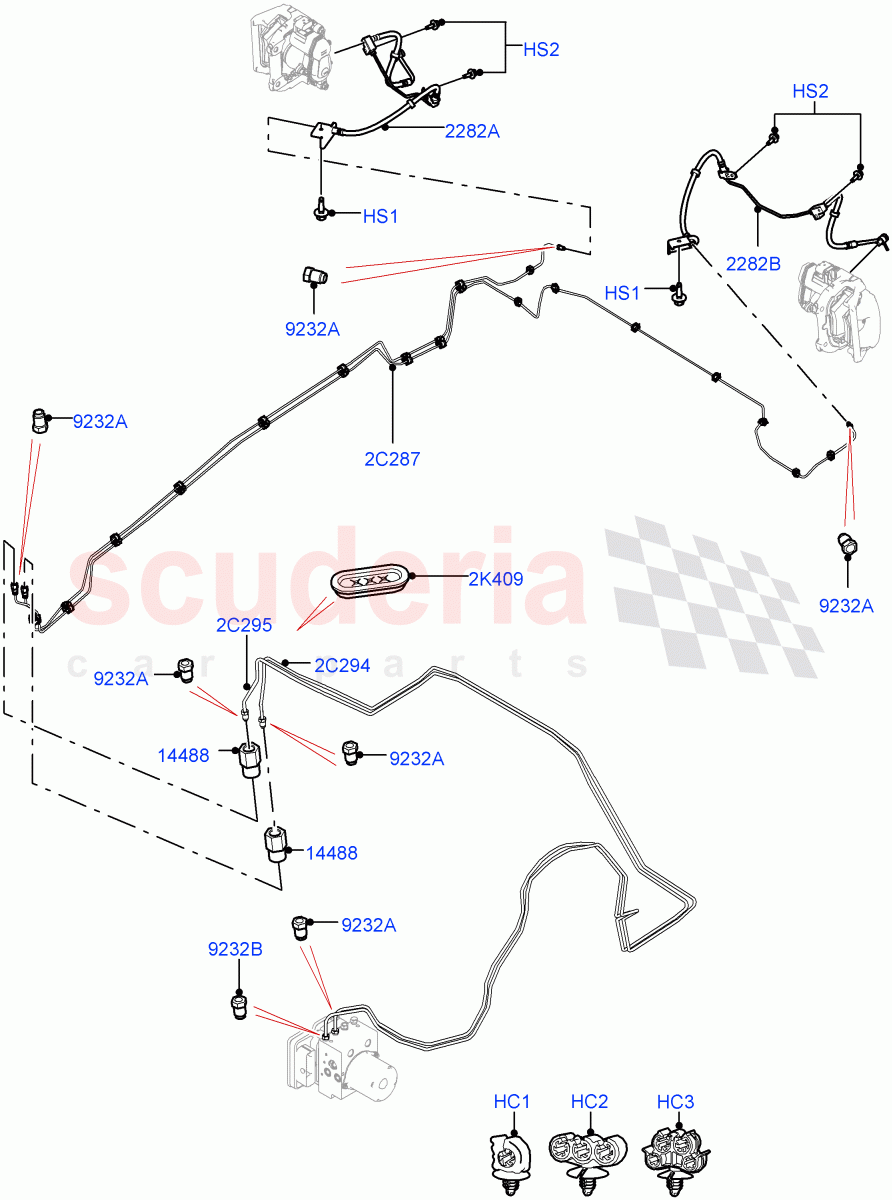

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR033441	CLIP - SPECIAL	$4.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033442	CLIP - SPECIAL	$5.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045793	CLIP - SPECIAL	$3.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033017	SCREW AND WASHER - HEX HEAD	$2.70	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500900	SCREW	$4.20	To Order

Photo	Part No	Description	Price (each)	Stock
	SYC500120	CONNECTOR - BRAKE TUBE	$13.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR096526	HOSE - BRAKE	$129.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR096525	HOSE - BRAKE	$137.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR101953	TUBE - BRAKE	$689.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034180	TUBE - BRAKE	$215.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034181	TUBE - BRAKE	$215.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033426	GROMMET - BRAKE PIPE	$25.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033452	NUT - CONNECTING	$10.83	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033453	NUT - CONNECTING	$9.71	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR033441	CLIP - SPECIAL	LR033441 CLIP - SPECIAL 5MM, Single / From: K2000001	$4.48	8
HC2	LR033442	CLIP - SPECIAL	LR033442 CLIP - SPECIAL 5MM, Triple / From: K2000001	$5.69	8
HC3	LR045793	CLIP - SPECIAL	LR045793 CLIP - SPECIAL 4 Way, 5MM / From: K2000001	$3.34	9
HS1	LR033017	SCREW AND WASHER - HEX HEAD	LR033017 SCREW AND WASHER - HEX HEAD M8 x 28MM, Self Tapping / From: K2000001	$2.70	2
HS2	RYG500900	SCREW	RYG500900 SCREW Bolt And Washer, Hexagonal Head, M6X30 / From: K2000001	$4.20	4
2C287	LR101953	TUBE - BRAKE	LR101953 TUBE - BRAKE Under Floor / From: K2000001	$689.41	1
2C294	LR034180	TUBE - BRAKE	LR034180 TUBE - BRAKE Modulator To RH Rear / From: K2000001	$215.86	1
2C295	LR034181	TUBE - BRAKE	LR034181 TUBE - BRAKE Modulator To LH Rear / From: K2000001	$215.86	1
2K409	LR033426	GROMMET - BRAKE PIPE	LR033426 GROMMET - BRAKE PIPE 5MM, Triple / From: K2000001	$25.53	1
2282A	LR096526	HOSE - BRAKE	LR096526 HOSE - BRAKE RH, Includes Bracket, To Caliper / From: K2000001	$129.11	1
2282B	LR096525	HOSE - BRAKE	LR096525 HOSE - BRAKE LH, Includes Bracket, To Caliper / From: K2000001	$137.90	1
9232A	LR033452	NUT - CONNECTING	LR033452 NUT - CONNECTING M10 / From: K2000001	$10.83	7
9232B	LR033453	NUT - CONNECTING	LR033453 NUT - CONNECTING M12 / From: K2000001	$9.71	1
14488	SYC500120	CONNECTOR - BRAKE TUBE	SYC500120 CONNECTOR - BRAKE TUBE Brake Tube, M10 / From: K2000001	$13.69	2

Rear Brake Pipes (Nitra Plant Build) (Lhd) ((V) Fromk2000001, (V) Tol2999999)

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol]
