Name: Rear Brake Discs And Calipers (Solihull Plant Build) (Front Disc And Caliper Size 18) ((V) FROMJA000001)
Rating: 5.0 (1 reviews)

Rear Brake Discs And Calipers (Solihull Plant Build) (Front Disc And Caliper Size 18) ((V) FROMJA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] - Rear Brake Discs And Calipers (Solihull Plant Build) (Front Disc And Caliper Size 18) ((V)...

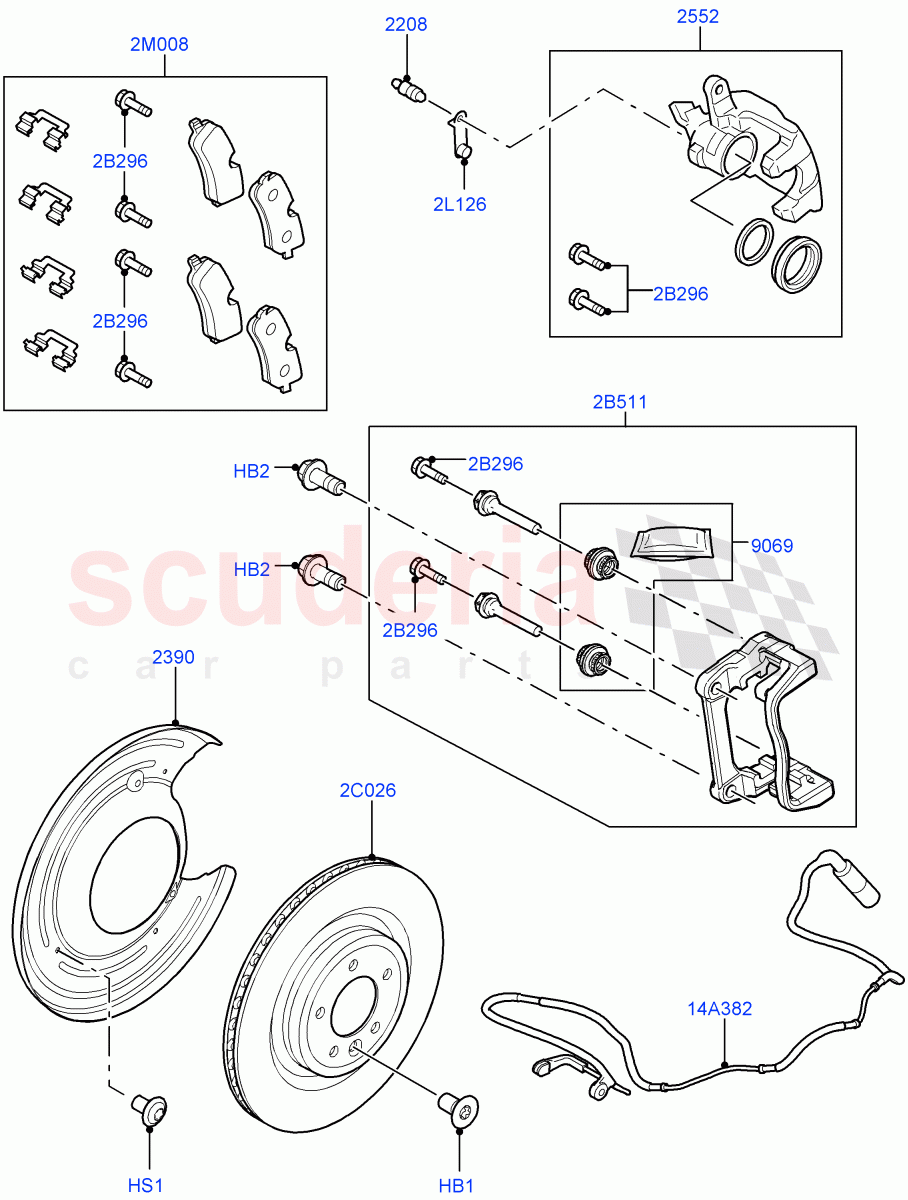

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR002080	BOLT	$3.17	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	SYG000013	BOLT	$3.50	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR018509	SCREW	$1.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR015523	SCREW - BLEED	$6.71	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR084069	SHIELD - BRAKE DISC SPLASH	$93.75	To Order
	LR084070	SHIELD - BRAKE DISC SPLASH	$93.75	To Order

Photo	Part No	Description	Price (each)	Stock
	LR102242	CALIPER - BRAKE	$282.70	To Order
	LR102245	CALIPER - BRAKE	$282.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015525	COVER - DUST	$24.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031319	BOLT	$3.44	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR102241	BRACKET - BRAKE CALIPER	$323.15	To Order
	LR102239	BRACKET - BRAKE CALIPER	$315.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084067	DISC - BRAKE	$261.26	To Order

Photo	Part No	Description	Price (each)	Stock
	STC1913	CAP - BLEED SCREW	$6.12	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR162046	KIT - BRAKE LINING	$155.35	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR084071	WIRE - BRAKE PAD WEAR WARNING	$38.97	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR002080	BOLT IN STOCK	LR002080 BOLT M10 X 20MM, Torx / From: JA000001 IN STOCK	$3.17	2
HB2	SYG000013	BOLT IN STOCK	SYG000013 BOLT External Torx Head, M12 X 35MM / From: JA000001 IN STOCK	$3.50	4
HS1	LR018509	SCREW IN STOCK	LR018509 SCREW M6 X 10MM, Torx / From: JA000001 IN STOCK	$1.23	6
2B296	LR031319	BOLT IN STOCK	LR031319 BOLT Pin - Guide / From: JA000001 IN STOCK	$3.44	4
2B511	LR102241	BRACKET - BRAKE CALIPER	LR102241 BRACKET - BRAKE CALIPER LH / From: JA000001	$323.15	1
2B511	LR102239	BRACKET - BRAKE CALIPER	LR102239 BRACKET - BRAKE CALIPER RH / From: JA000001	$315.01	1
2C026	LR084067	DISC - BRAKE	LR084067 DISC - BRAKE From: JA000001	$261.26	2
2L126	STC1913	CAP - BLEED SCREW IN STOCK	STC1913 CAP - BLEED SCREW From: JA000001 IN STOCK	$6.12	2
2M008	LR162046	KIT - BRAKE LINING IN STOCK	LR162046 KIT - BRAKE LINING Axle Set, With Clips / From: JA000001 IN STOCK	$155.35	1
14A382	LR084071	WIRE - BRAKE PAD WEAR WARNING IN STOCK	LR084071 WIRE - BRAKE PAD WEAR WARNING From: JA000001 IN STOCK	$38.97	1
2208	LR015523	SCREW - BLEED IN STOCK	LR015523 SCREW - BLEED From: JA000001 IN STOCK	$6.71	2
2390	LR084069	SHIELD - BRAKE DISC SPLASH	LR084069 SHIELD - BRAKE DISC SPLASH RH / From: JA000001	$93.75	1
2390	LR084070	SHIELD - BRAKE DISC SPLASH	LR084070 SHIELD - BRAKE DISC SPLASH LH / From: JA000001	$93.75	1
2552	LR102242	CALIPER - BRAKE	LR102242 CALIPER - BRAKE RH / From: JA000001	$282.70	1
2552	LR102245	CALIPER - BRAKE	LR102245 CALIPER - BRAKE LH / From: JA000001	$282.70	1
9069	LR015525	COVER - DUST	LR015525 COVER - DUST Boot / From: JA000001	$24.59	2
