Heater Hoses (Nitra Plant Build) (2.0L I4 High Dohc Aj200 Petrol, 3.0L Aj20P6 Petrol High, 2.0L I4...

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] - Heater Hoses (Nitra Plant Build) (2.0L I4 High DOHC AJ200 Petrol, 3.0L AJ20P6 Petrol High, 2.0L I4...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR038544 NUT $2.11 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.47 IN STOCK
Photo Part No Description Price (each) Stock
LR033645 SCREW $1.57 IN STOCK
Photo Part No Description Price (each) Stock
LR096503 HOSE - HEATER WATER $68.80 To Order
Photo Part No Description Price (each) Stock
LR085582 TUBE - AUXILIARY HEATER SUPPLY $287.67 To Order
Photo Part No Description Price (each) Stock
LR082197 HOSE - HEATER WATER $101.84 To Order
View All

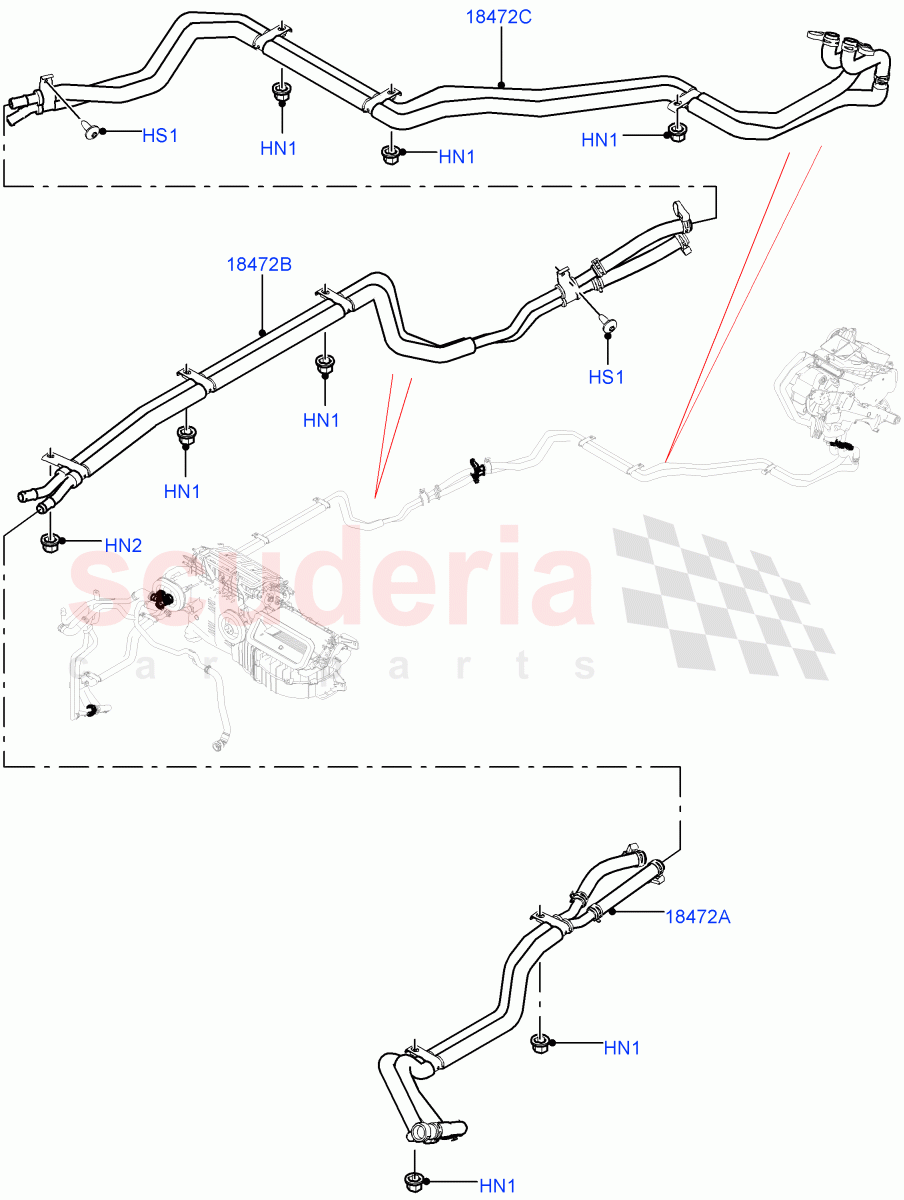

Heater Hoses (Nitra Plant Build) (2.0L I4 High DOHC AJ200 Petrol, 3.0L AJ20P6 Petrol High, 2.0L I4 DSL HIGH DOHC AJ200, 2.0L I4 DSL MID DOHC AJ200, 3.0L AJ20D6 Diesel High) ((V) FROMK2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 LR038544
NUT
6 X 1.6MM / From: K2000001 		$2.11 7
HN2 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: K2000001
IN STOCK 		$1.47 1
HS1 LR033645
SCREW
M6 X 16MM, Torx / From: K2000001
IN STOCK 		$1.57 2
18472A LR096503
HOSE - HEATER WATER
Front / From: K2000001 		$68.80 1
18472B LR085582
TUBE - AUXILIARY HEATER SUPPLY
Middle / From: K2000001 		$287.67 1
18472C LR082197
HOSE - HEATER WATER
Rear, To Heater Matrix / From: K2000001 		$101.84 1
