Heater Hoses (Solihull Plant Build) (3.0 V6 D Gen2 Mono Turbo, Premium Air Conditioning-Front/Rear,...

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] - Heater Hoses (Solihull Plant Build) (3.0 V6 D Gen2 Mono Turbo, Premium Air Conditioning-Front/Rear,...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR009266 BOLT M6 X 24 $1.46 IN STOCK
Photo Part No Description Price (each) Stock
LR038544 NUT $2.09 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.46 IN STOCK
Photo Part No Description Price (each) Stock
LR033645 SCREW $1.56 IN STOCK
Photo Part No Description Price (each) Stock
LR081651 TUBE - HEATER WATER $139.27 To Order
Photo Part No Description Price (each) Stock
LR096503 HOSE - HEATER WATER $68.31 To Order
Photo Part No Description Price (each) Stock
LR085582 TUBE - AUXILIARY HEATER SUPPLY $285.60 To Order
Photo Part No Description Price (each) Stock
LR082197 HOSE - HEATER WATER $101.11 To Order
View All

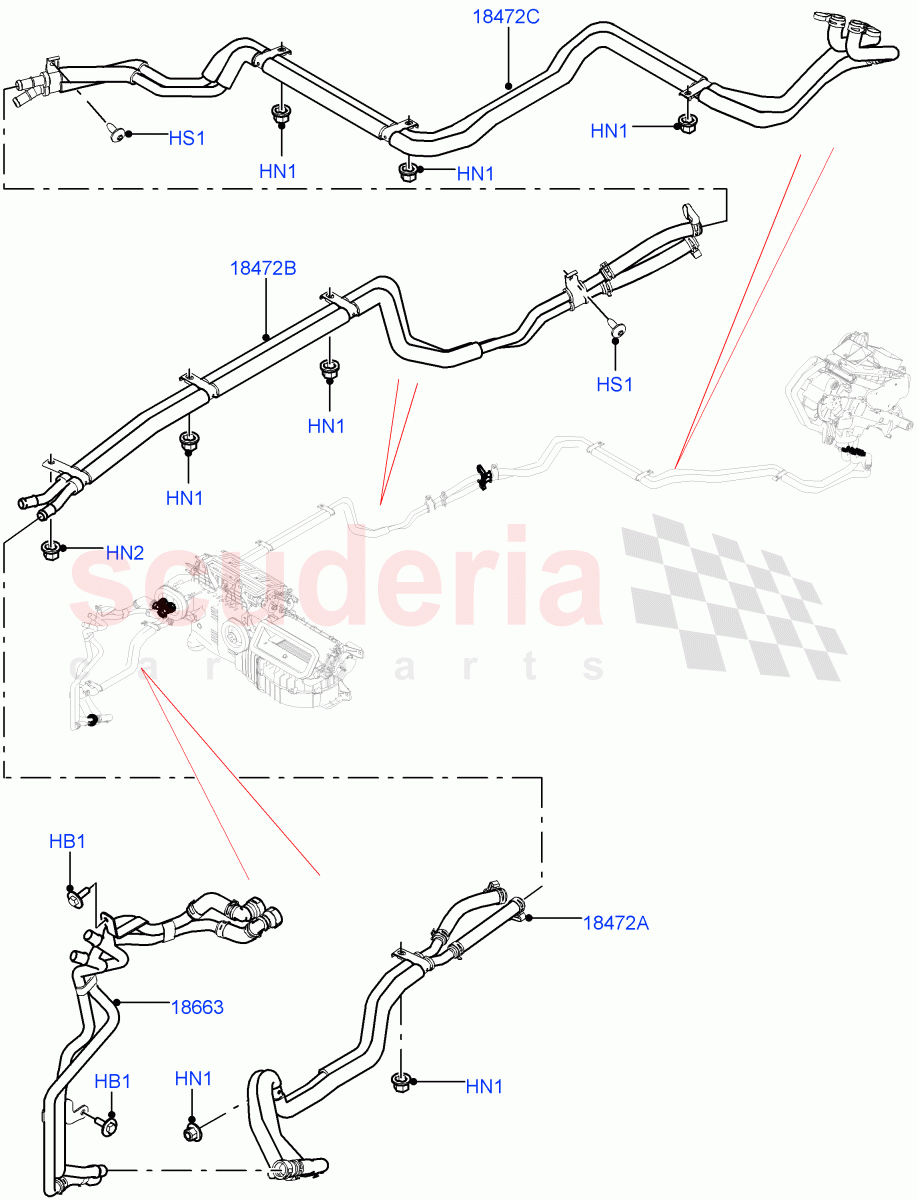

Heater Hoses (Solihull Plant Build) (3.0 V6 D Gen2 Mono Turbo, Premium Air Conditioning-Front/Rear, 3.0 V6 D Low MT ROW, 3.0 V6 D Gen2 Twin Turbo, 3.0L DOHC GDI SC V6 PETROL) ((V) FROMKA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR009266
BOLT M6 X 24
Bolt And Washer, Hexagonal Head, M6 X 24MM / From: KA000001
IN STOCK 		$1.46 2
HN1 LR038544
NUT
6 X 1.6MM / From: KA000001 		$2.09 7
HN2 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: KA000001
IN STOCK 		$1.46 1
HS1 LR033645
SCREW
M6 X 16MM, Torx / From: KA000001
IN STOCK 		$1.56 2
18472A LR096503
HOSE - HEATER WATER
Front / From: KA000001 		$68.31 1
18472B LR085582
TUBE - AUXILIARY HEATER SUPPLY
Middle / From: KA000001 		$285.60 1
18472C LR082197
HOSE - HEATER WATER
Rear, To Heater Matrix / From: KA000001 		$101.11 1
18663 LR081651
TUBE - HEATER WATER
From: KA000001 		$139.27 1
