Name: Heater Hoses (Nitra Plant Build) (3.0L DOHC GDI SC V6 PETROL, With Fuel Fired Heater, Fuel Fired Heater With Park Heat, Fuel Heater W/Pk Heat With Remote) ((V) FROMK2000001)
Rating: 4.3 (1 reviews)

Heater Hoses (Nitra Plant Build) (3.0L DOHC GDI SC V6 PETROL, With Fuel Fired Heater, Fuel Fired Heater With Park Heat, Fuel Heater W/Pk Heat With Remote) ((V) FROMK2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] - Heater Hoses (Nitra Plant Build) (3.0L DOHC GDI SC V6 PETROL, With Fuel Fired Heater, Fuel Fired...

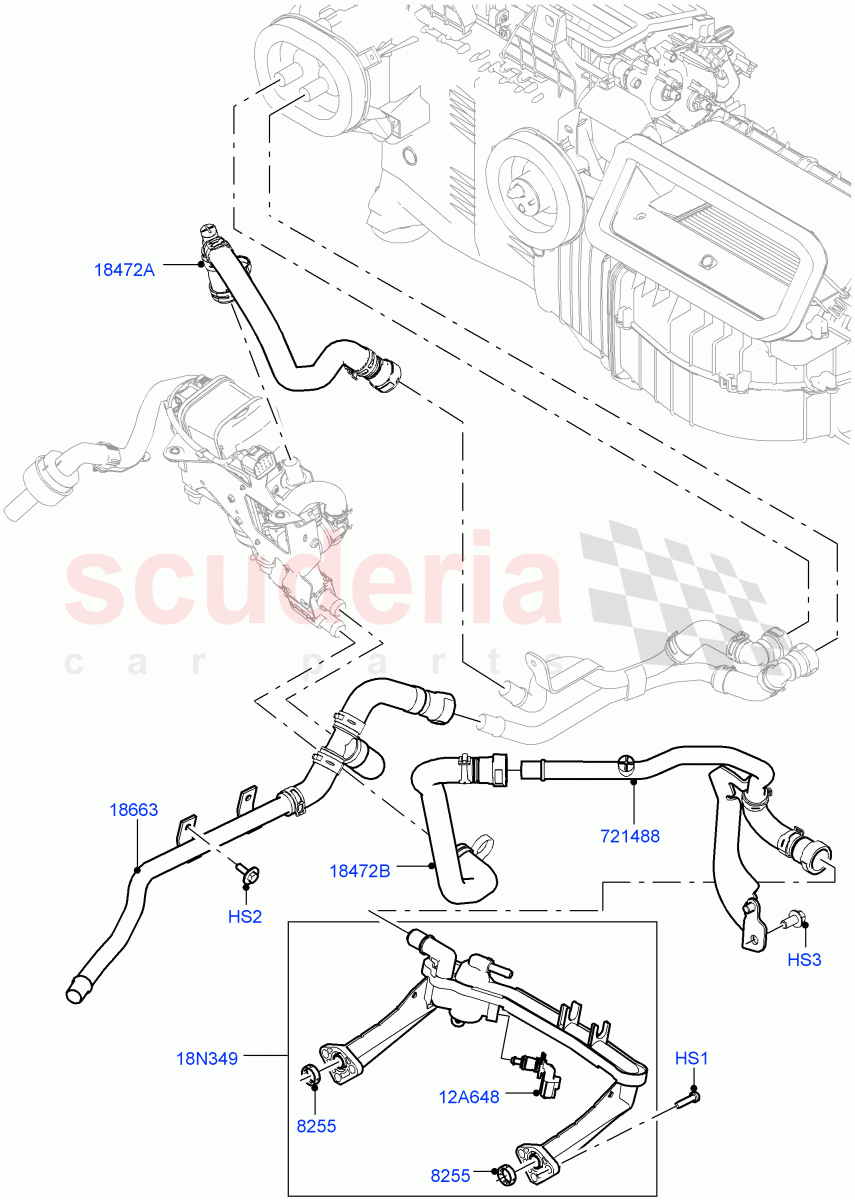

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR011270	SCREW	$1.24	To Order

Photo	Part No	Description	Price (each)	Stock
	KYG500380	SCREW AND WASHER - HEX HEAD	$0.36	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR061621	BOLT	$1.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010793	GASKET - WATER MANIFOLD	$9.64	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034598	TUBE - HEATER WATER	$385.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041442	SENSOR - ENGINE COOLANT TEMPERATURE	$49.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100017	HOSE - HEATER WATER	$58.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133648	HOSE - HEATER WATER	$48.76	To Order
	LR113148	HOSE - HEATER WATER	$50.12	IN STOCK
	LR133648	HOSE - HEATER WATER	$48.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122710	MANIFOLD - HEATER	$140.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034624	HOSE AND BRACKET - HEATING	$102.59	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	LR011270	SCREW	LR011270 SCREW M6 x 25MM, Torx / From: K2000001	$1.24	4
HS2	KYG500380	SCREW AND WASHER - HEX HEAD IN STOCK	KYG500380 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 X 13.5MM / From: K2000001 IN STOCK	$0.36	2
HS3	LR061621	BOLT	LR061621 BOLT M10 x 16MM / From: K2000001	$1.76	1
12A648	LR041442	SENSOR - ENGINE COOLANT TEMPERATURE	LR041442 SENSOR - ENGINE COOLANT TEMPERATURE From: K2000001	$49.13	1
18N349	LR122710	MANIFOLD - HEATER	LR122710 MANIFOLD - HEATER Heater, Tube From Engine Block To Heater Inlet Hose, With Sensor / From: K2000001	$140.06	1
8255	LR010793	GASKET - WATER MANIFOLD	LR010793 GASKET - WATER MANIFOLD From: K2000001	$9.64	2
18472A	LR100017	HOSE - HEATER WATER	LR100017 HOSE - HEATER WATER Heater To Engine Water Inlet, Upper / From: K2000001	$58.01	1
18472B	LR133648	HOSE - HEATER WATER	LR133648 HOSE - HEATER WATER (+) ROW, From Engine To Fuel Fired Heater / From: K2000001 / To: L2420753	$48.76	1
18472B	LR113148	HOSE - HEATER WATER IN STOCK	LR113148 HOSE - HEATER WATER (+)"NAS", From Engine To Fuel Fired Heater, Lower / From: K2000001 IN STOCK	$50.12	1
18472B	LR133648	HOSE - HEATER WATER	LR133648 HOSE - HEATER WATER (+) ROW, From Engine To Fuel Fired Heater / From: L2420754	$48.76	1
18663	LR034598	TUBE - HEATER WATER	LR034598 TUBE - HEATER WATER From: K2000001	$385.89	1
721488	LR034624	HOSE AND BRACKET - HEATING	LR034624 HOSE AND BRACKET - HEATING From Engine Block To Heater Inlet Hose / From: K2000001	$102.59	1
