Heater Hoses (Solihull Plant Build) (2.0L I4 Dsl High Dohc Aj200, With Fuel Fired Heater, With...

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] - Heater Hoses (Solihull Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, With Fuel Fired Heater, With...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR009266 BOLT M6 X 24 $1.46 IN STOCK
Photo Part No Description Price (each) Stock
LR035787 SCREW $1.81 To Order
Photo Part No Description Price (each) Stock
LR081648 TUBE - HEATER WATER $179.65 To Order
Photo Part No Description Price (each) Stock
LR036340 MANIFOLD - WATER $28.97 To Order
Photo Part No Description Price (each) Stock
LR081652 HOSE - HEATER WATER $56.16 To Order
Photo Part No Description Price (each) Stock
LR035621 HOSE - HEATER WATER $39.65 To Order
View All

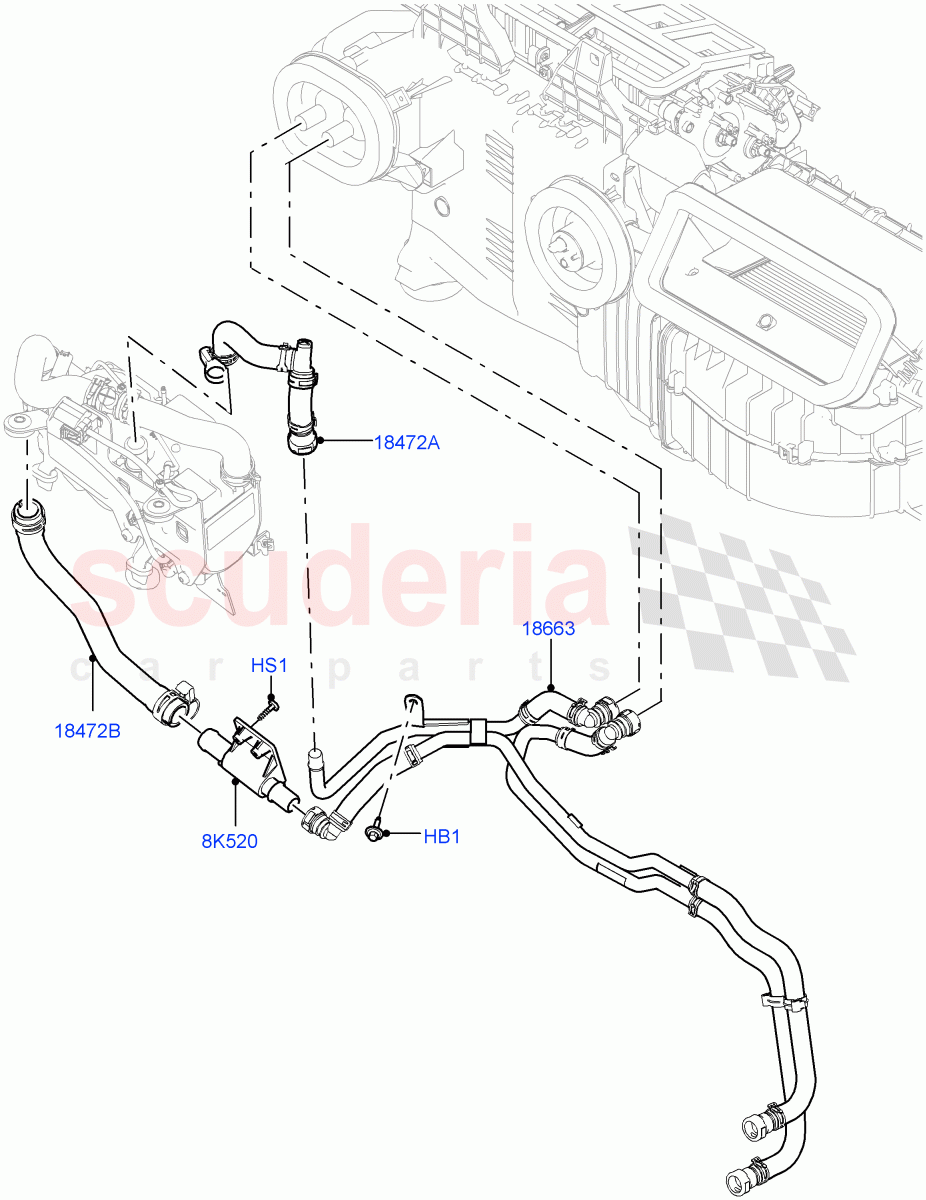

Heater Hoses (Solihull Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, With Fuel Fired Heater, With Front Comfort Air Con (IHKA), Less Park Heating, 2.0L I4 DSL MID DOHC AJ200, With Manual Air Conditioning) ((V) FROMHA000001, (V) TOHA999999) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR009266
BOLT M6 X 24
Bolt And Washer, Hexagonal Head, M6 X 24MM
IN STOCK 		$1.46 1
HS1 LR035787
SCREW
M3.5 X 12, Torx 		$1.81 2
8K520 LR036340
MANIFOLD - WATER 		$28.97 1
18472A LR081652
HOSE - HEATER WATER 		$56.16 1
18472B LR035621
HOSE - HEATER WATER 		$39.65 1
18663 LR081648
TUBE - HEATER WATER 		$179.65 1
