Name: Air Conditioning Condensr/Compressr (Nitra Plant Build, Front) (2.0L I4 High DOHC AJ200 Petrol) ((V) FROMM2000001)
Rating: 4.1 (1 reviews)

Air Conditioning Condensr/Compressr (Nitra Plant Build, Front) (2.0L I4 High DOHC AJ200 Petrol) ((V) FROMM2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] - Air Conditioning Condensr/Compressr (Nitra Plant Build, Front) (2.0L I4 High DOHC AJ200 Petrol)...

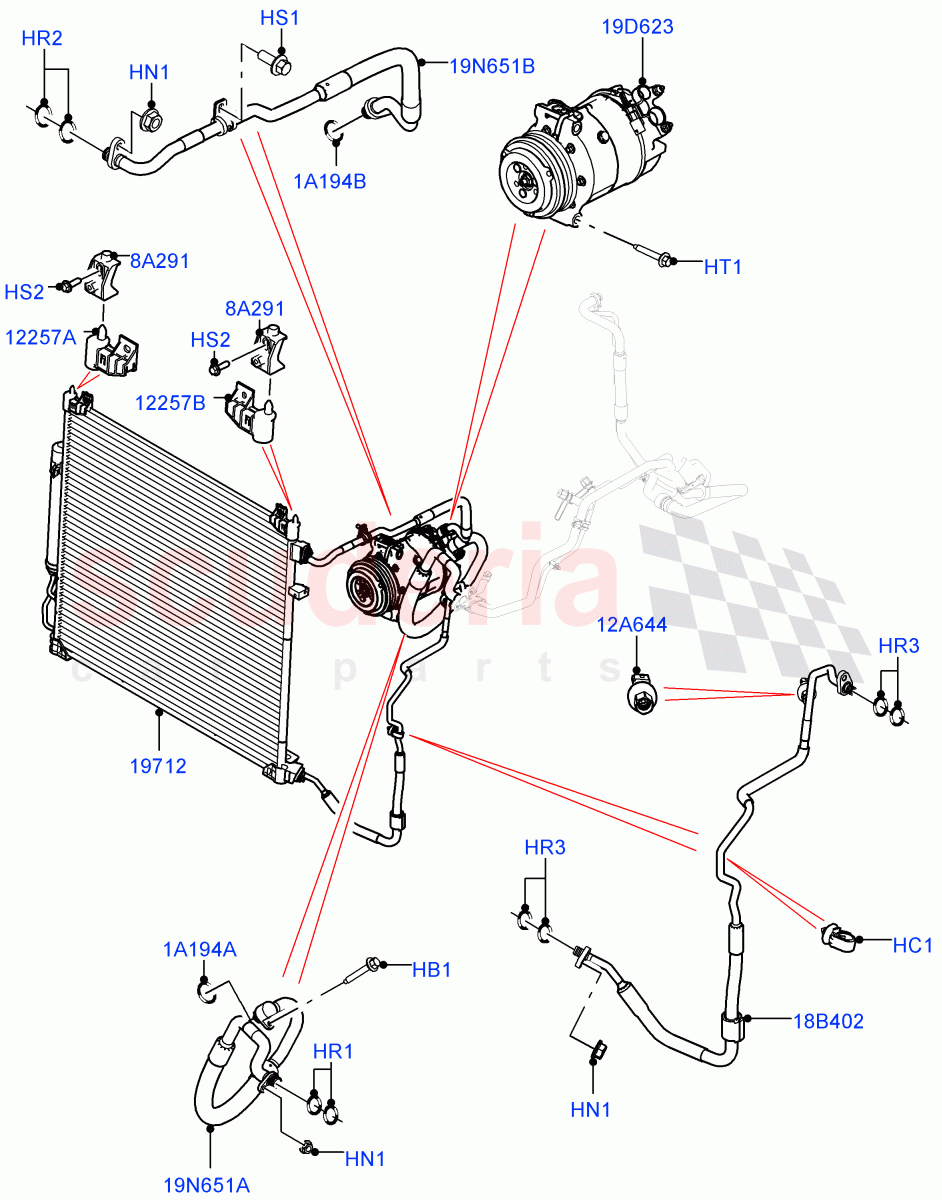

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108256	BOLT	$3.56	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR035462	CLIP - HOSE	$3.33	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.46	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR054870	O-RING	$3.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR054871	O-RING	$3.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044466	O-RING	$4.33	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106166	SCREW	$1.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR018707	SCREW	$1.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR116447	STUD	$4.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR142436	CONDENSER	$531.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062331	BRACKET - RADIATOR	$17.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR063161	BRACKET - INTERCOOLER RADIATOR	$6.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR063162	BRACKET - INTERCOOLER RADIATOR	$6.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086926	SENSOR - REFRIGERANT PRESSURE	$239.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR142116	HOSE - AIR CONDITIONING	$203.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141720	COMPRESSOR - AIR CONDITIONING	$1,372.87	To Order
	LR159435	COMPRESSOR - AIR CONDITIONING	$1,372.87	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122305	WASHER - SEALING	$14.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122304	WASHER - SEALING	$15.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR142114	TUBE - COMPRESSOR DELIVERY	$152.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141978	TUBE - COMPRESSOR LINE	$226.66	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108256	BOLT IN STOCK	FS108256 BOLT Hexagonal Head, M8 X 25MM / From: M2000001 IN STOCK	$3.56	1
HC1	LR035462	CLIP - HOSE	LR035462 CLIP - HOSE For Air Conditioning Hose / From: M2000001	$3.33	1
HN1	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 / From: M2000001 IN STOCK	$1.46	2
HR1	LR054870	O-RING	LR054870 O-RING 16.5 X 1.78MM / From: M2000001	$3.53	2
HR2	LR054871	O-RING	LR054871 O-RING 10.82MM X 1.78MM / From: M2000001	$3.30	2
HR3	LR044466	O-RING	LR044466 O-RING 7.65 X 1.78 / From: M2000001	$4.33	4
HS1	FS106166	SCREW IN STOCK	FS106166 SCREW Hexagonal Head, M6 X 16MM / From: M2000001 IN STOCK	$1.23	1
HS2	LR018707	SCREW	LR018707 SCREW 6X20, Hexagonal Head / From: M2000001	$1.05	2
HT1	LR116447	STUD	LR116447 STUD Compressor Mounting, Hexagonal Head, M8 x 97.5mm + M6 x 15mm / From: M2000001	$4.01	3
1A194A	LR122305	WASHER - SEALING	LR122305 WASHER - SEALING 19.05 MM / From: M2000001	$14.52	1
1A194B	LR122304	WASHER - SEALING	LR122304 WASHER - SEALING 12.7MM / From: M2000001	$15.25	1
8A291	LR062331	BRACKET - RADIATOR	LR062331 BRACKET - RADIATOR Air Conditioning Condenser / From: M2000001	$17.97	2
12A644	LR086926	SENSOR - REFRIGERANT PRESSURE	LR086926 SENSOR - REFRIGERANT PRESSURE Refrigerant Pressure Sensor / From: M2000001	$239.19	1
18B402	LR142116	HOSE - AIR CONDITIONING	LR142116 HOSE - AIR CONDITIONING Condenser Outlet / From: M2000001	$203.22	1
19D623	LR141720	COMPRESSOR - AIR CONDITIONING	LR141720 COMPRESSOR - AIR CONDITIONING From: M2000001 / To: M2453896	$1,372.87	1
19D623	LR159435	COMPRESSOR - AIR CONDITIONING	LR159435 COMPRESSOR - AIR CONDITIONING From: M2453897	$1,372.87	1
19N651A	LR142114	TUBE - COMPRESSOR DELIVERY	LR142114 TUBE - COMPRESSOR DELIVERY Compressor Inlet / From: M2000001	$152.34	1
19N651B	LR141978	TUBE - COMPRESSOR LINE	LR141978 TUBE - COMPRESSOR LINE Condenser Inlet Tube / From: M2000001	$226.66	1
12257A	LR063161	BRACKET - INTERCOOLER RADIATOR	LR063161 BRACKET - INTERCOOLER RADIATOR RH Upper / From: M2000001	$6.42	1
12257B	LR063162	BRACKET - INTERCOOLER RADIATOR	LR063162 BRACKET - INTERCOOLER RADIATOR LH Upper / From: M2000001	$6.42	1
19712	LR142436	CONDENSER	LR142436 CONDENSER From: M2000001	$531.77	1
