Air Conditioning Condensr/Compressr (Nitra Plant Build, Front) (3.0L Aj20D6 Diesel High) ((V)...

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] - Air Conditioning Condensr/Compressr (Nitra Plant Build, Front) (3.0L AJ20D6 Diesel High) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108256 BOLT $3.56 IN STOCK
Photo Part No Description Price (each) Stock
LR005074 BOLT $1.16 To Order
Photo Part No Description Price (each) Stock
FB108076 BOLT $0.62 To Order
Photo Part No Description Price (each) Stock
LR035462 CLIP - HOSE $3.33 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.46 IN STOCK
Photo Part No Description Price (each) Stock
LR054870 O-RING $3.53 To Order
Photo Part No Description Price (each) Stock
LR054871 O-RING $3.31 To Order
Photo Part No Description Price (each) Stock
LR044466 O-RING $4.33 To Order
Photo Part No Description Price (each) Stock
LR018707 SCREW $1.05 To Order
Photo Part No Description Price (each) Stock
FS105106 SCREW $0.78 IN STOCK
Photo Part No Description Price (each) Stock
FS106166 SCREW $1.24 IN STOCK
Photo Part No Description Price (each) Stock
LR181384 CONDENSER $416.83 IN STOCK
Photo Part No Description Price (each) Stock
LR062331 BRACKET - RADIATOR $17.98 To Order
Photo Part No Description Price (each) Stock
LR063161 BRACKET - INTERCOOLER RADIATOR $6.43 To Order
Photo Part No Description Price (each) Stock
LR063162 BRACKET - INTERCOOLER RADIATOR $6.43 To Order
Photo Part No Description Price (each) Stock
LR063164 BRACKET - INTERCOOLER RADIATOR $6.19 To Order
Photo Part No Description Price (each) Stock
LR063165 BRACKET - INTERCOOLER RADIATOR $6.52 To Order
Photo Part No Description Price (each) Stock
LR086926 SENSOR - REFRIGERANT PRESSURE $239.37 To Order
Photo Part No Description Price (each) Stock
LR142121 HOSE - AIR CONDITIONING $238.47 To Order
Photo Part No Description Price (each) Stock
LR147876 COMPRESSOR - AIR CONDITIONING $1,202.18 To Order
LR159434 COMPRESSOR - AIR CONDITIONING $1,202.18 To Order
Photo Part No Description Price (each) Stock
LR123056 BRACKET - COMPRESSOR $58.58 To Order
Photo Part No Description Price (each) Stock
LR122305 WASHER - SEALING $14.53 To Order
Photo Part No Description Price (each) Stock
LR122304 WASHER - SEALING $15.26 To Order
Photo Part No Description Price (each) Stock
LR142112 TUBE - COMPRESSOR DELIVERY $156.97 To Order
Photo Part No Description Price (each) Stock
LR141980 TUBE - COMPRESSOR LINE $162.68 To Order
View All

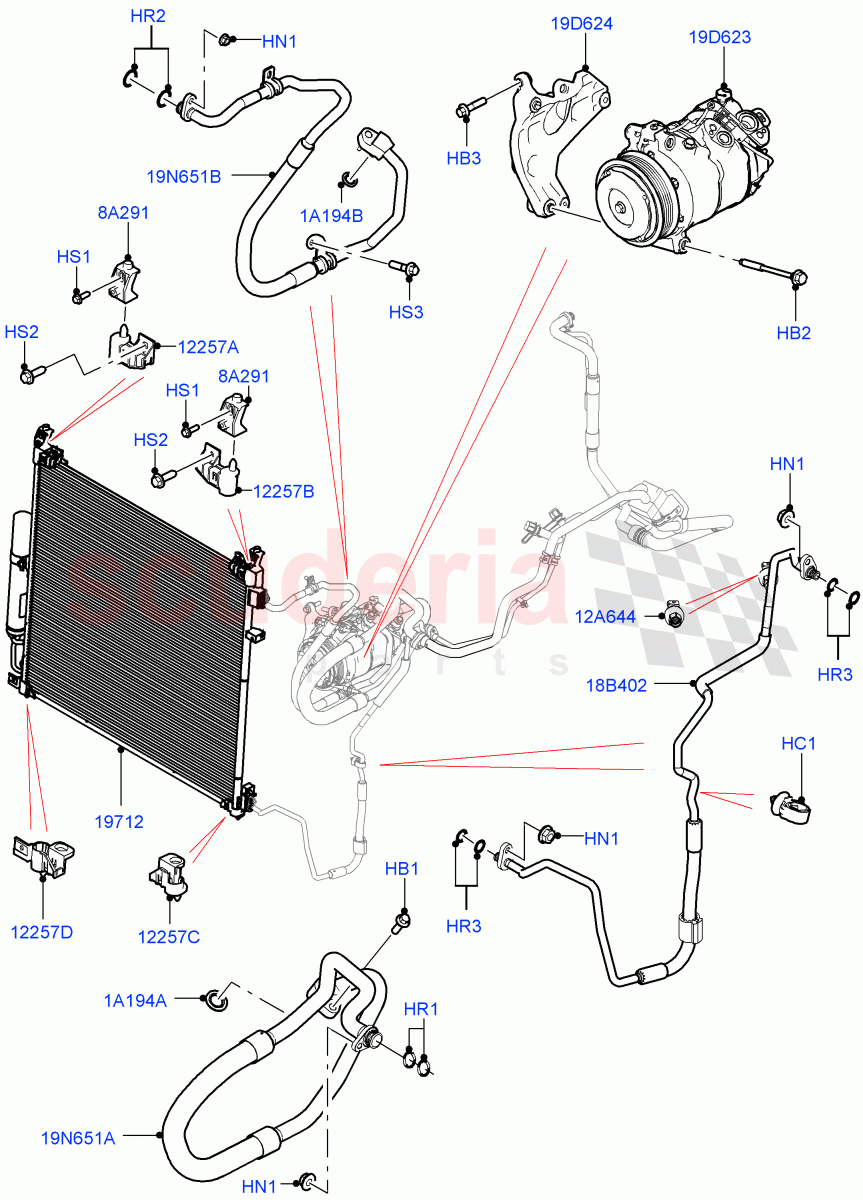

Air Conditioning Condensr/Compressr (Nitra Plant Build, Front) (3.0L AJ20D6 Diesel High) ((V) FROMM2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108256
BOLT
Hexagonal Head, M8 X 25MM / From: M2000001
IN STOCK 		$3.56 1
HB2 LR005074
BOLT
Hexagonal Head, M8 X 96.5 / From: M2000001 		$1.16 3
HB3 FB108076
BOLT
M8 X 35MM / From: M2000001 		$0.62 4
HC1 LR035462
CLIP - HOSE
For Air Conditioning Hose / From: M2000001 		$3.33 1
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: M2000001
IN STOCK 		$1.46 4
HR1 LR054870
O-RING
16.5 X 1.78MM / From: M2000001 		$3.53 2
HR2 LR054871
O-RING
10.82MM X 1.78MM / From: M2000001 		$3.31 2
HR3 LR044466
O-RING
7.65 X 1.78 / From: M2000001 		$4.33 4
HS1 LR018707
SCREW
6X20, Hexagonal Head / From: M2000001 		$1.05 2
HS2 FS105106
SCREW
M5 X 10MM / From: M2000001
IN STOCK 		$0.78 2
HS3 FS106166
SCREW
Hexagonal Head, M6 X 16MM / From: M2000001
IN STOCK 		$1.24 2
1A194A LR122305
WASHER - SEALING
19.05 MM / From: M2000001 		$14.53 1
1A194B LR122304
WASHER - SEALING
12.7MM / From: M2000001 		$15.26 1
8A291 LR062331
BRACKET - RADIATOR
Air Conditioning Condenser / From: M2000001 		$17.98 2
12A644 LR086926
SENSOR - REFRIGERANT PRESSURE
From: M2000001 		$239.37 1
18B402 LR142121
HOSE - AIR CONDITIONING
Condenser Outlet / From: M2000001 		$238.47 1
19D623 LR147876
COMPRESSOR - AIR CONDITIONING
From: M2000001 / To: M2453896 		$1,202.18 1
19D623 LR159434
COMPRESSOR - AIR CONDITIONING
From: M2453897 		$1,202.18 1
19D624 LR123056
BRACKET - COMPRESSOR
Air Conditioning Compressor Bracket / From: M2000001 		$58.58 1
19N651A LR142112
TUBE - COMPRESSOR DELIVERY
Compressor Inlet / From: M2000001 		$156.97 1
19N651B LR141980
TUBE - COMPRESSOR LINE
Condenser Inlet Tube / From: M2000001 		$162.68 1
12257A LR063161
BRACKET - INTERCOOLER RADIATOR
RH Upper / From: M2000001 		$6.43 1
12257B LR063162
BRACKET - INTERCOOLER RADIATOR
LH Upper / From: M2000001 		$6.43 1
12257C LR063164
BRACKET - INTERCOOLER RADIATOR
LH Lower / From: M2000001 		$6.19 1
12257D LR063165
BRACKET - INTERCOOLER RADIATOR
RH Lower / From: M2000001 		$6.52 1
19712 LR181384
CONDENSER
From: M2000001
IN STOCK 		$416.83 1
