Thermostat/Housing & Related Parts (Solihull Plant Build) (3.0 V6 D Gen2 Mono Turbo, Less Immersion...

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Thermostat/Housing & Related Parts (Solihull Plant Build) (3.0 V6 D Gen2 Mono Turbo, Less Immersion...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FX106046 NUT - FLANGED $0.60 IN STOCK
Photo Part No Description Price (each) Stock
RYG500830 Screw $1.21 To Order
Photo Part No Description Price (each) Stock
RYG500220 SCREW $3.45 IN STOCK
Photo Part No Description Price (each) Stock
1336551 GASKET $3.73 To Order
Photo Part No Description Price (each) Stock
LR078764 HOSE - WATER $74.57 To Order
Photo Part No Description Price (each) Stock
LR062095 HOSE - WATER $211.94 To Order
Photo Part No Description Price (each) Stock
LR078766 HOSE - THERMOSTAT $151.69 To Order
Photo Part No Description Price (each) Stock
LR121835 HOSE - RADIATOR $112.74 To Order
Photo Part No Description Price (each) Stock
LR121834 HOSE - RADIATOR $169.16 To Order
Photo Part No Description Price (each) Stock
LR013165 TUBE - CONNECTING $31.65 To Order
Photo Part No Description Price (each) Stock
LR121833 CONNECTION - WATER OUTLET $114.48 To Order
Photo Part No Description Price (each) Stock
LR079609 BRACKET - THERMOSTAT $107.71 To Order
Photo Part No Description Price (each) Stock
LR035627 HOSE - RADIATOR $35.55 To Order
Photo Part No Description Price (each) Stock
LR062097 HOSE - WATER $48.01 To Order
Photo Part No Description Price (each) Stock
4346360 SENSOR - ENGINE COOLANT TEMPERATURE $59.66 To Order
View All

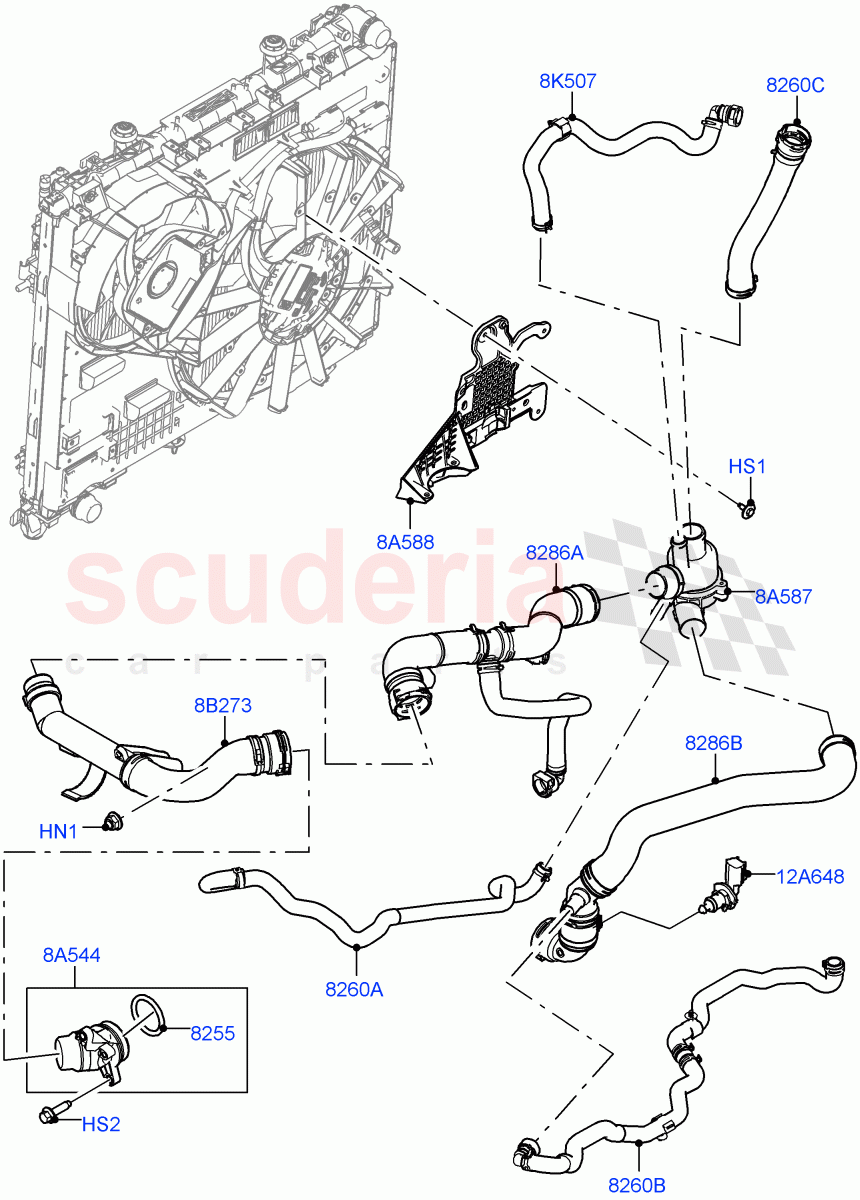

Thermostat/Housing & Related Parts (Solihull Plant Build) (3.0 V6 D Gen2 Mono Turbo, Less Immersion Heater, Active Tranmission Warming) ((V) FROMKA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 FX106046
NUT - FLANGED
Hexagonal Head, M6 / From: KA000001
IN STOCK 		$0.60 1
HS1 RYG500830
Screw
M6 X 16 HEX, Thermostat Assy To Fan Shroud / From: KA000001 		$1.21 2
HS2 RYG500220
SCREW
Hexagonal Head, M6 X 20MM / From: KA000001
IN STOCK 		$3.45 2
8A544 LR013165
TUBE - CONNECTING
From: KA000001 		$31.65 1
8A587 LR121833
CONNECTION - WATER OUTLET
From: KA000001 		$114.48 1
8A588 LR079609
BRACKET - THERMOSTAT
From: KA000001 		$107.71 1
8B273 LR035627
HOSE - RADIATOR
Bottom, Engine Side, Thermostat To Engine / From: KA000001 		$35.55 1
8K507 LR062097
HOSE - WATER
Thermostat To Engine, Upper / From: KA000001 		$48.01 1
12A648 4346360
SENSOR - ENGINE COOLANT TEMPERATURE
From: KA000001 		$59.66 1
8255 1336551
GASKET
From: KA000001 		$3.73 1
8260A LR078764
HOSE - WATER
Expansion Reservoir To Thermostat / From: KA000001 		$74.57 1
8260B LR062095
HOSE - WATER
Connects Auxiliary Radiators / From: KA000001 		$211.94 1
8260C LR078766
HOSE - THERMOSTAT
Thermostat To Top Radiator Hose, Upper / From: KA000001 		$151.69 1
8286A LR121835
HOSE - RADIATOR
Bottom, Thermostat Side, Thermostat To Engine / From: KA000001 		$112.74 1
8286B LR121834
HOSE - RADIATOR
Bottom, Radiator / From: KA000001 		$169.16 1
