Name: Cooling System Pipes And Hoses (Engine) (3.0 V6 D Gen2 Twin Turbo, 8 Speed Auto Trans ZF 8HP70 4WD, (+) "CDN/MEX/USA", Crankcase Pressure Sensor, 3.0 V6 D Gen2 Mono Turbo) ((V) FROMGA000001, (V) TOJA999999)
Rating: 4.5 (1 reviews)

Cooling System Pipes And Hoses (Engine) (3.0 V6 D Gen2 Twin Turbo, 8 Speed Auto Trans ZF 8HP70 4WD, (+) "CDN/MEX/USA", Crankcase Pressure Sensor, 3.0 V6 D Gen2 Mono Turbo) ((V) FROMGA000001, (V) TOJA999999) of Land Rover Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Cooling System Pipes And Hoses (Engine) (3.0 V6 D Gen2 Twin Turbo, 8 Speed Auto Trans ZF 8HP70 4WD,...

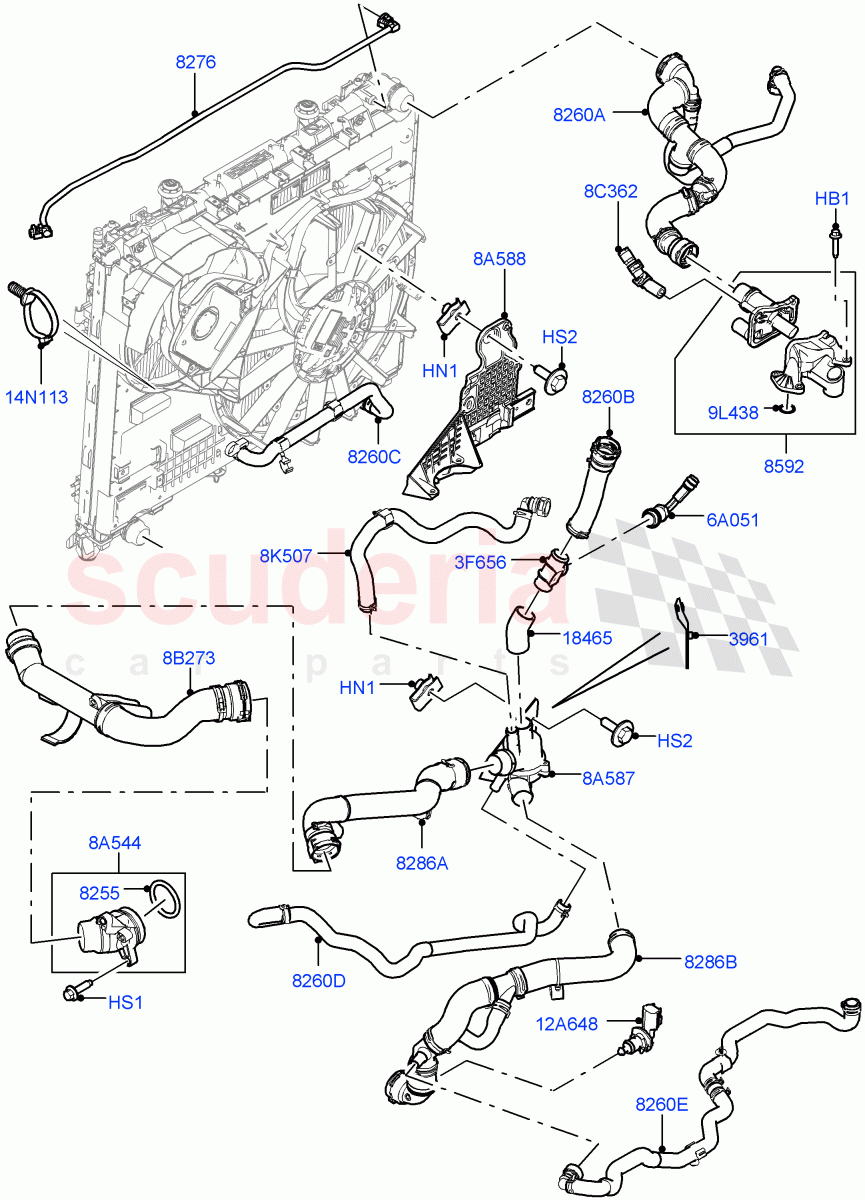

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4147433	BOLT	$1.64	IN STOCK
	LR105435	BOLT	$1.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000053	NUT - FLANGED	$1.63	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500220	SCREW	$3.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	AYP500110	SCREW	$0.96	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR063041	BRACKET - HEATER MOUNTING	$41.32	To Order

Photo	Part No	Description	Price (each)	Stock
	1336551	GASKET	$3.75	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081659	HOSE - RADIATOR TO ENG. VENT ELBOW	$62.81	To Order
	LR077702	HOSE - RADIATOR TO ENG. VENT ELBOW	$31.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073372	CONNECTION - WATER OUTLET	$65.57	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR062071	HOSE - COOLING SYSTEM	$55.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062104	T-CONNECTOR	$66.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038158	HEATER - ENGINE BLOCK	$247.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081657	HOSE - RADIATOR	$115.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078767	HOSE - THERMOSTAT	$42.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062074	HOSE - OIL COOLER	$75.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078764	HOSE - WATER	$74.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062095	HOSE - WATER	$212.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062094	HOSE - WATER	$66.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081664	HOSE - RADIATOR	$201.87	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013165	TUBE - CONNECTING	$31.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR085946	THERMOSTAT AND HOUSING	$115.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR079609	BRACKET - THERMOSTAT	$108.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035627	HOSE - RADIATOR	$35.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035631	HOSE - RADIATOR VENTILATION	$13.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062097	HOSE - WATER	$48.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018829	GASKET - THERMOSTAT	$3.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041442	SENSOR - ENGINE COOLANT TEMPERATURE	$49.16	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	4147433	BOLT IN STOCK	4147433 BOLT M6 X 25MM / To: HA026217 IN STOCK	$1.64	4
HB1	LR105435	BOLT	LR105435 BOLT M6 x 27MM / From: HA026218	$1.13	4
HN1	LR000053	NUT - FLANGED IN STOCK	LR000053 NUT - FLANGED M6 IN STOCK	$1.63	3
HS1	RYG500220	SCREW IN STOCK	RYG500220 SCREW Hexagonal Head, M6 X 20MM IN STOCK	$3.47	2
HS2	AYP500110	SCREW IN STOCK	AYP500110 SCREW Bolt And Washer, Hexagonal Head, M6 X 20MM IN STOCK	$0.96	3
3F656	LR062104	T-CONNECTOR	LR062104 T-CONNECTOR T-Connector	$66.93	1
6A051	LR038158	HEATER - ENGINE BLOCK	LR038158 HEATER - ENGINE BLOCK	$247.42	1
8A544	LR013165	TUBE - CONNECTING	LR013165 TUBE - CONNECTING Bottom	$31.78	1
8A587	LR085946	THERMOSTAT AND HOUSING	LR085946 THERMOSTAT AND HOUSING	$115.81	1
8A588	LR079609	BRACKET - THERMOSTAT	LR079609 BRACKET - THERMOSTAT	$108.17	1
8B273	LR035627	HOSE - RADIATOR	LR035627 HOSE - RADIATOR Bottom, Engine Side, Thermostat To Engine	$35.71	1
8C362	LR035631	HOSE - RADIATOR VENTILATION	LR035631 HOSE - RADIATOR VENTILATION Cooling System Bleed	$13.24	1
8K507	LR062097	HOSE - WATER	LR062097 HOSE - WATER Thermostat To Engine, Upper	$48.22	1
9L438	LR018829	GASKET - THERMOSTAT	LR018829 GASKET - THERMOSTAT	$3.69	2
12A648	LR041442	SENSOR - ENGINE COOLANT TEMPERATURE	LR041442 SENSOR - ENGINE COOLANT TEMPERATURE	$49.16	1
3961	LR063041	BRACKET - HEATER MOUNTING	LR063041 BRACKET - HEATER MOUNTING Heater	$41.32	1
8255	1336551	GASKET	1336551 GASKET	$3.75	1
8260A	LR081657	HOSE - RADIATOR	LR081657 HOSE - RADIATOR Radiator, Top	$115.61	1
8260B	LR078767	HOSE - THERMOSTAT	LR078767 HOSE - THERMOSTAT Thermostat To Top Radiator Hose, Upper	$42.96	1
8260C	LR062074	HOSE - OIL COOLER	LR062074 HOSE - OIL COOLER From Transmission Oil Cooler To Radiator	$75.34	1
8260D	LR078764	HOSE - WATER	LR078764 HOSE - WATER Expansion Reservoir To Thermostat	$74.89	1
8260E	LR062095	HOSE - WATER	LR062095 HOSE - WATER Connects Auxiliary Radiators	$212.84	1
8276	LR081659	HOSE - RADIATOR TO ENG. VENT ELBOW	LR081659 HOSE - RADIATOR TO ENG. VENT ELBOW Radiator Degas Line / To: HA006497	$62.81	1
8276	LR077702	HOSE - RADIATOR TO ENG. VENT ELBOW	LR077702 HOSE - RADIATOR TO ENG. VENT ELBOW Radiator Degas Line / From: HA006498	$31.37	1
8286A	LR062094	HOSE - WATER	LR062094 HOSE - WATER Bottom, Thermostat Side, Thermostat To Engine	$66.06	1
8286B	LR081664	HOSE - RADIATOR	LR081664 HOSE - RADIATOR Bottom, Radiator	$201.87	1
8592	LR073372	CONNECTION - WATER OUTLET IN STOCK	LR073372 CONNECTION - WATER OUTLET IN STOCK	$65.57	1
18465	LR062071	HOSE - COOLING SYSTEM	LR062071 HOSE - COOLING SYSTEM Lower, Thermostat To Top Radiator Hose	$55.12	1
