Name: Cooling System Pipes And Hoses (Solihull Plant Build, Engine) (3.0 V6 D Gen2 Twin Turbo, Less Engine Cooling System, Less Immersion Heater) ((V) FROMKA000001)
Rating: 4.1 (1 reviews)

Cooling System Pipes And Hoses (Solihull Plant Build, Engine) (3.0 V6 D Gen2 Twin Turbo, Less Engine Cooling System, Less Immersion Heater) ((V) FROMKA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Cooling System Pipes And Hoses (Solihull Plant Build, Engine) (3.0 V6 D Gen2 Twin Turbo, Less...

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR105435	BOLT	$1.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000053	NUT - FLANGED	$1.62	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500220	SCREW	$3.46	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	AYP500110	SCREW	$0.96	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	1336551	GASKET	$3.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077702	HOSE - RADIATOR TO ENG. VENT ELBOW	$31.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073372	CONNECTION - WATER OUTLET	$65.48	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR117631	PLUG - BLANKING	$5.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113130	HOSE - RADIATOR	$120.83	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078766	HOSE - THERMOSTAT	$152.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062074	HOSE - OIL COOLER	$75.24	To Order
	LR126012	HOSE - OIL COOLER	$75.24	To Order
	LR128619	HOSE - OIL COOLER	$105.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078764	HOSE - WATER	$74.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062094	HOSE - WATER	$65.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081663	HOSE - RADIATOR	$173.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013165	TUBE - CONNECTING	$31.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121832	CONNECTION - WATER OUTLET	$115.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035627	HOSE - RADIATOR	$35.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035631	HOSE - RADIATOR VENTILATION	$13.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062097	HOSE - WATER	$48.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018829	GASKET - THERMOSTAT	$3.69	To Order

View All

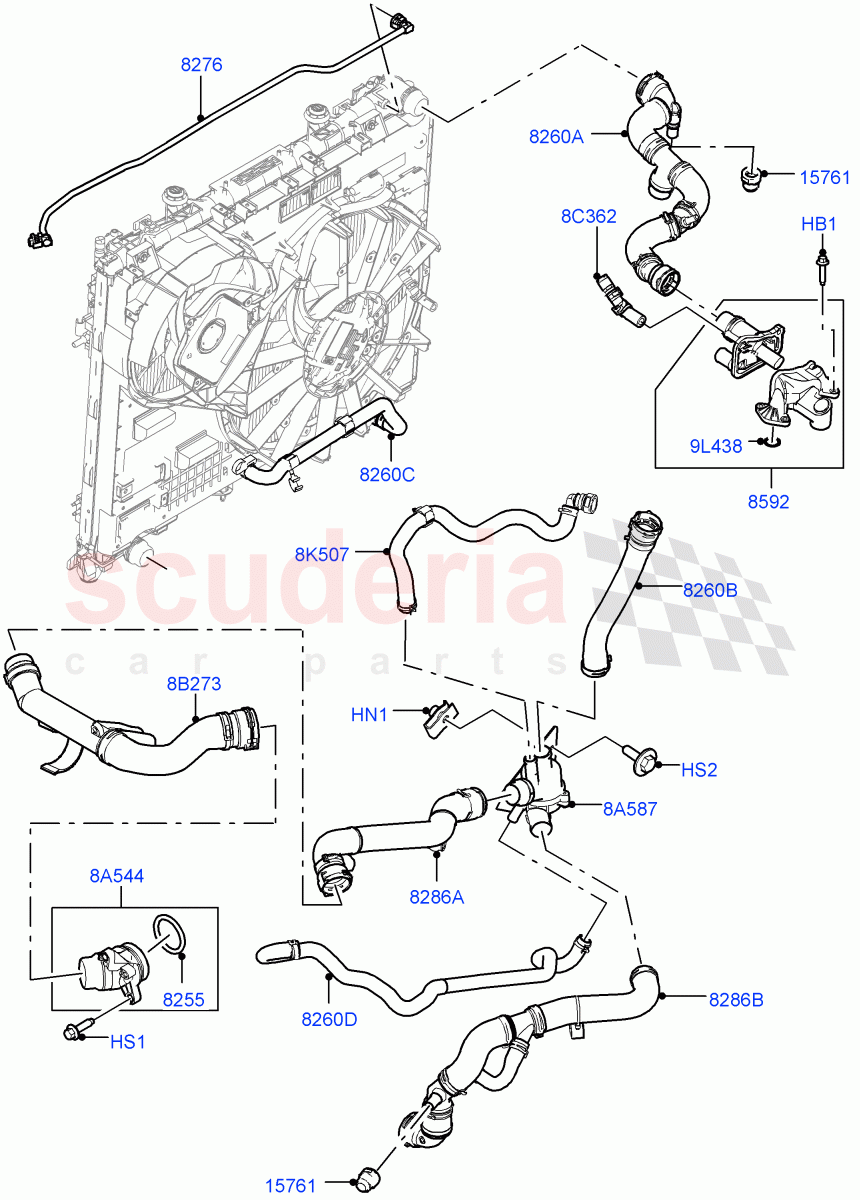

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR105435	BOLT	LR105435 BOLT M6 x 27MM / From: KA000001	$1.13	4
HN1	LR000053	NUT - FLANGED IN STOCK	LR000053 NUT - FLANGED M6 / From: KA000001 IN STOCK	$1.62	2
HS1	RYG500220	SCREW IN STOCK	RYG500220 SCREW Hexagonal Head, M6 X 20MM / From: KA000001 IN STOCK	$3.46	2
HS2	AYP500110	SCREW IN STOCK	AYP500110 SCREW Bolt And Washer, Hexagonal Head, M6 X 20MM / From: KA000001 IN STOCK	$0.96	2
8A544	LR013165	TUBE - CONNECTING	LR013165 TUBE - CONNECTING From: KA000001	$31.74	1
8A587	LR121832	CONNECTION - WATER OUTLET	LR121832 CONNECTION - WATER OUTLET From: KA000001	$115.65	1
8B273	LR035627	HOSE - RADIATOR	LR035627 HOSE - RADIATOR Bottom, Engine Side, Thermostat To Engine / From: KA000001	$35.66	1
8C362	LR035631	HOSE - RADIATOR VENTILATION	LR035631 HOSE - RADIATOR VENTILATION Cooling System Bleed / From: KA000001	$13.23	1
8K507	LR062097	HOSE - WATER	LR062097 HOSE - WATER Thermostat To Engine, Upper / From: KA000001	$48.15	1
9L438	LR018829	GASKET - THERMOSTAT	LR018829 GASKET - THERMOSTAT From: KA000001	$3.69	1
8255	1336551	GASKET	1336551 GASKET From: KA000001	$3.74	1
8260A	LR113130	HOSE - RADIATOR	LR113130 HOSE - RADIATOR Radiator, Top / From: KA000001	$120.83	1
8260B	LR078766	HOSE - THERMOSTAT	LR078766 HOSE - THERMOSTAT Thermostat To Top Radiator Hose, Upper / From: KA000001	$152.13	1
8260C	LR062074	HOSE - OIL COOLER	LR062074 HOSE - OIL COOLER From Transmission Oil Cooler To Radiator / From: KA000001 / To: KA092769	$75.24	1
8260C	LR126012	HOSE - OIL COOLER	LR126012 HOSE - OIL COOLER From Transmission Oil Cooler To Radiator / From: KA092770 / To: KA093381	$75.24	1
8260C	LR128619	HOSE - OIL COOLER	LR128619 HOSE - OIL COOLER From Transmission Oil Cooler To Radiator / From: KA093382	$105.76	1
8260D	LR078764	HOSE - WATER	LR078764 HOSE - WATER Expansion Reservoir To Thermostat / From: KA000001	$74.79	1
8276	LR077702	HOSE - RADIATOR TO ENG. VENT ELBOW	LR077702 HOSE - RADIATOR TO ENG. VENT ELBOW Radiator Degas Line / From: KA000001	$31.33	1
8286A	LR062094	HOSE - WATER	LR062094 HOSE - WATER Bottom, Thermostat Side, Thermostat To Engine / From: KA000001	$65.97	1
8286B	LR081663	HOSE - RADIATOR	LR081663 HOSE - RADIATOR Bottom, Radiator / From: KA000001	$173.05	1
8592	LR073372	CONNECTION - WATER OUTLET IN STOCK	LR073372 CONNECTION - WATER OUTLET From: KA000001 IN STOCK	$65.48	1
15761	LR117631	PLUG - BLANKING	LR117631 PLUG - BLANKING From: KA000001	$5.45	1

Cooling System Pipes And Hoses (Solihull Plant Build, Engine) (3.0 V6 D Gen2 Twin Turbo, Less...

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Cooling System Pipes And Hoses (Solihull Plant Build, Engine) (3.0 V6 D Gen2 Twin Turbo, Less...
