Cooling System Pipes And Hoses (Solihull Plant Build, Engine) (3.0 V6 D Low Mt Row, Immersion...

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Cooling System Pipes And Hoses (Solihull Plant Build, Engine) (3.0 V6 D Low MT ROW, Immersion...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR105435 BOLT $1.13 To Order
Photo Part No Description Price (each) Stock
LR000053 NUT - FLANGED $1.62 IN STOCK
Photo Part No Description Price (each) Stock
RYG500220 SCREW $3.46 IN STOCK
Photo Part No Description Price (each) Stock
AYP500110 SCREW $0.96 IN STOCK
Photo Part No Description Price (each) Stock
1336551 GASKET $3.74 To Order
Photo Part No Description Price (each) Stock
LR077702 HOSE - RADIATOR TO ENG. VENT ELBOW $31.27 To Order
Photo Part No Description Price (each) Stock
LR073372 CONNECTION - WATER OUTLET $65.37 IN STOCK
Photo Part No Description Price (each) Stock
LR062071 HOSE - COOLING SYSTEM $54.95 To Order
Photo Part No Description Price (each) Stock
LR062104 T-CONNECTOR $66.72 To Order
Photo Part No Description Price (each) Stock
LR038158 HEATER - ENGINE BLOCK $246.65 To Order
Photo Part No Description Price (each) Stock
LR113130 HOSE - RADIATOR $120.63 To Order
Photo Part No Description Price (each) Stock
LR078767 HOSE - THERMOSTAT $42.83 To Order
Photo Part No Description Price (each) Stock
LR062074 HOSE - OIL COOLER $75.11 To Order
LR126012 HOSE - OIL COOLER $75.11 To Order
LR128619 HOSE - OIL COOLER $105.57 To Order
Photo Part No Description Price (each) Stock
LR078764 HOSE - WATER $74.66 To Order
Photo Part No Description Price (each) Stock
LR062095 HOSE - WATER $212.19 To Order
Photo Part No Description Price (each) Stock
LR113147 HOSE - RADIATOR $62.79 To Order
Photo Part No Description Price (each) Stock
LR062094 HOSE - WATER $65.86 To Order
Photo Part No Description Price (each) Stock
LR081663 HOSE - RADIATOR $172.75 To Order
Photo Part No Description Price (each) Stock
LR013165 TUBE - CONNECTING $31.69 To Order
Photo Part No Description Price (each) Stock
LR121833 CONNECTION - WATER OUTLET $114.62 To Order
Photo Part No Description Price (each) Stock
LR079609 BRACKET - THERMOSTAT $107.83 To Order
Photo Part No Description Price (each) Stock
LR035627 HOSE - RADIATOR $35.59 To Order
Photo Part No Description Price (each) Stock
LR035631 HOSE - RADIATOR VENTILATION $13.20 To Order
Photo Part No Description Price (each) Stock
LR062097 HOSE - WATER $48.07 To Order
Photo Part No Description Price (each) Stock
LR018829 GASKET - THERMOSTAT $3.68 To Order
View All

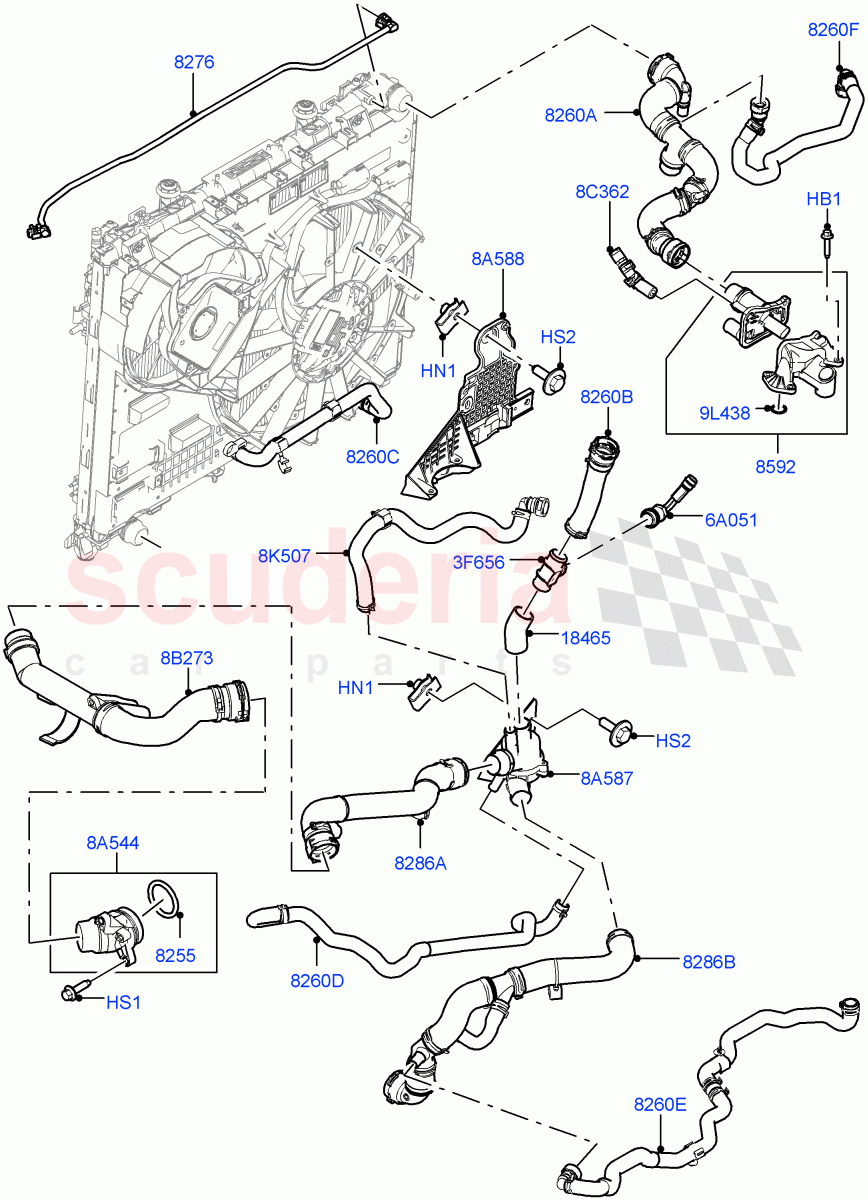

Cooling System Pipes And Hoses (Solihull Plant Build, Engine) (3.0 V6 D Low MT ROW, Immersion Heater - 700W / 110V) ((V) FROMKA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR105435
BOLT
M6 x 27MM / From: KA000001 		$1.13 4
HN1 LR000053
NUT - FLANGED
M6 / From: KA000001
IN STOCK 		$1.62 2
HS1 RYG500220
SCREW
Hexagonal Head, M6 X 20MM / From: KA000001
IN STOCK 		$3.46 2
HS2 AYP500110
SCREW
Bolt And Washer, Hexagonal Head, M6 X 20MM / From: KA000001
IN STOCK 		$0.96 2
3F656 LR062104
T-CONNECTOR
T-Connector / From: KA000001 		$66.72 1
6A051 LR038158
HEATER - ENGINE BLOCK
From: KA000001 		$246.65 1
8A544 LR013165
TUBE - CONNECTING
From: KA000001 		$31.69 1
8A587 LR121833
CONNECTION - WATER OUTLET
From: KA000001 		$114.62 1
8A588 LR079609
BRACKET - THERMOSTAT
From: KA000001 		$107.83 1
8B273 LR035627
HOSE - RADIATOR
Bottom, Engine Side, Thermostat To Engine / From: KA000001 		$35.59 1
8C362 LR035631
HOSE - RADIATOR VENTILATION
Cooling System Bleed / From: KA000001 		$13.20 1
8K507 LR062097
HOSE - WATER
Thermostat To Engine, Upper / From: KA000001 		$48.07 1
9L438 LR018829
GASKET - THERMOSTAT
From: KA000001 		$3.68 1
8255 1336551
GASKET
From: KA000001 		$3.74 1
8260A LR113130
HOSE - RADIATOR
Radiator, Top / From: KA000001 		$120.63 1
8260B LR078767
HOSE - THERMOSTAT
Thermostat To Top Radiator Hose, Upper / From: KA000001 		$42.83 1
8260C LR062074
HOSE - OIL COOLER
From Transmission Oil Cooler To Radiator / From: KA000001 / To: KA092769 		$75.11 1
8260C LR126012
HOSE - OIL COOLER
From Transmission Oil Cooler To Radiator / From: KA092770 / To: KA093381 		$75.11 1
8260C LR128619
HOSE - OIL COOLER
From Transmission Oil Cooler To Radiator / From: KA093382 		$105.57 1
8260D LR078764
HOSE - WATER
Expansion Reservoir To Thermostat / From: KA000001 		$74.66 1
8260E LR062095
HOSE - WATER
Connects Auxiliary Radiators / From: KA000001 		$212.19 1
8260F LR113147
HOSE - RADIATOR
Auxiliary Radiator, Inlet / From: KA000001 		$62.79 1
8276 LR077702
HOSE - RADIATOR TO ENG. VENT ELBOW
Radiator Degas Line / From: KA000001 		$31.27 1
8286A LR062094
HOSE - WATER
Bottom, Thermostat Side, Thermostat To Engine / From: KA000001 		$65.86 1
8286B LR081663
HOSE - RADIATOR
Bottom, Radiator / From: KA000001 		$172.75 1
8592 LR073372
CONNECTION - WATER OUTLET
From: KA000001
IN STOCK 		$65.37 1
18465 LR062071
HOSE - COOLING SYSTEM
Lower, Thermostat To Top Radiator Hose / From: KA000001 		$54.95 1
