Name: Cooling System Pipes And Hoses (Nitra Plant Build) (3.0 V6 D Gen2 Mono Turbo, Active Tranmission Warming) ((V) FROMK2000001)
Rating: 5.0 (1 reviews)

Cooling System Pipes And Hoses (Nitra Plant Build) (3.0 V6 D Gen2 Mono Turbo, Active Tranmission Warming) ((V) FROMK2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Cooling System Pipes And Hoses (Nitra Plant Build) (3.0 V6 D Gen2 Mono Turbo, Active Tranmission...

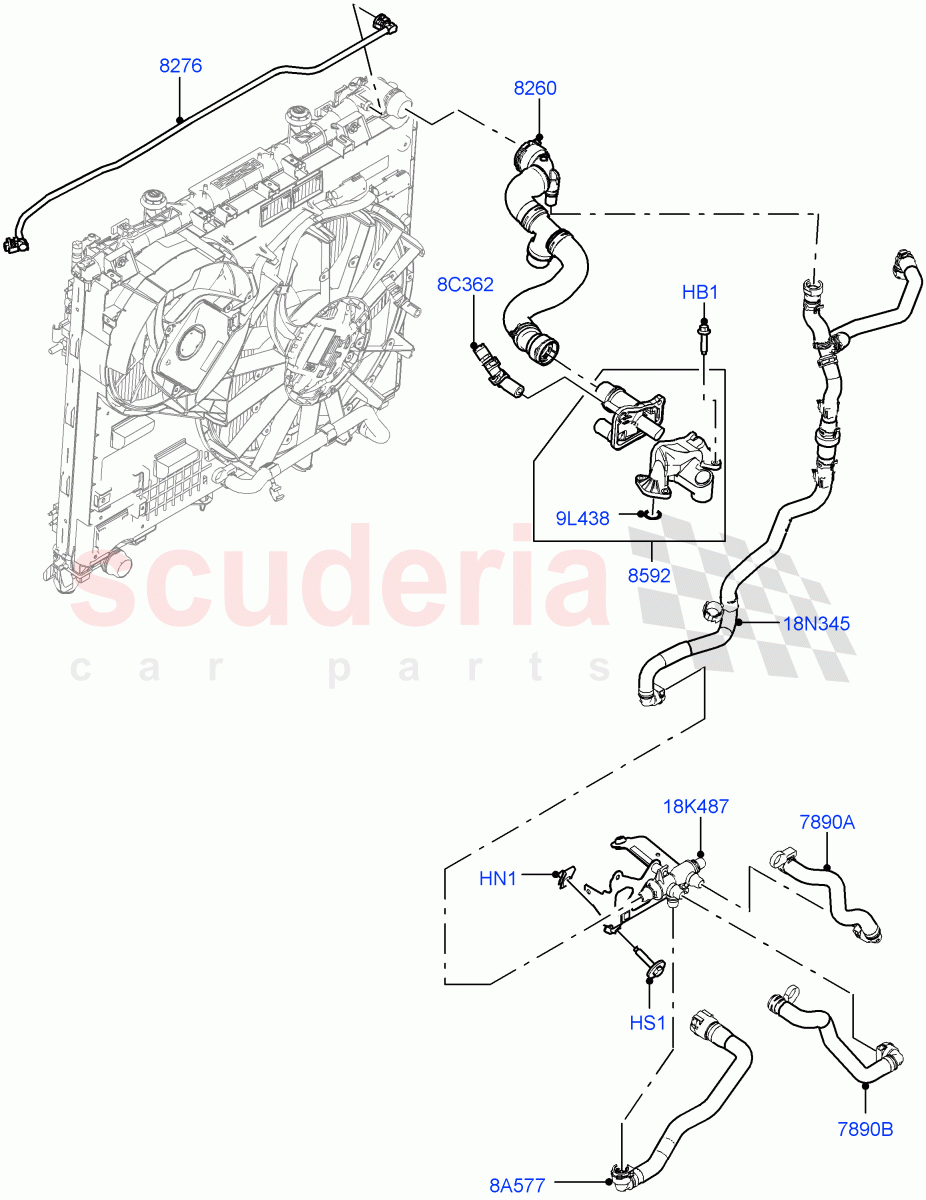

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR105435	BOLT	$1.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000053	NUT - FLANGED	$1.62	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500900	SCREW	$4.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113130	HOSE - RADIATOR	$120.83	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077702	HOSE - RADIATOR TO ENG. VENT ELBOW	$31.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073372	CONNECTION - WATER OUTLET	$65.48	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR100074	HOSE - OIL COOLER	$93.68	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100076	HOSE - OIL COOLER	$89.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR099967	HOSE - HEATER WATER	$80.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035631	HOSE - RADIATOR VENTILATION	$13.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018829	GASKET - THERMOSTAT	$3.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133647	VALVE - COOLANT FLOW CONTROL	$124.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR099992	HOSE - HEATER WATER	$96.97	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR105435	BOLT	LR105435 BOLT M6 x 27MM / From: K2000001	$1.13	4
HN1	LR000053	NUT - FLANGED IN STOCK	LR000053 NUT - FLANGED M6 / From: K2000001 IN STOCK	$1.62	2
HS1	RYG500900	SCREW	RYG500900 SCREW Bolt And Washer, Hexagonal Head, M6X30 / From: K2000001	$4.21	3
8A577	LR099967	HOSE - HEATER WATER	LR099967 HOSE - HEATER WATER Valve To Low Temperature Radiator / From: K2000001	$80.77	1
8C362	LR035631	HOSE - RADIATOR VENTILATION	LR035631 HOSE - RADIATOR VENTILATION Cooling System Bleed / From: K2000001	$13.23	1
9L438	LR018829	GASKET - THERMOSTAT	LR018829 GASKET - THERMOSTAT From: K2000001	$3.69	1
18K487	LR133647	VALVE - COOLANT FLOW CONTROL	LR133647 VALVE - COOLANT FLOW CONTROL With Bracket / From: K2000001	$124.79	1
18N345	LR099992	HOSE - HEATER WATER	LR099992 HOSE - HEATER WATER From: K2000001	$96.97	1
7890A	LR100074	HOSE - OIL COOLER	LR100074 HOSE - OIL COOLER Inlet / From: K2000001	$93.68	1
7890B	LR100076	HOSE - OIL COOLER	LR100076 HOSE - OIL COOLER Outlet / From: K2000001	$89.99	1
8260	LR113130	HOSE - RADIATOR	LR113130 HOSE - RADIATOR Radiator, Top / From: K2000001	$120.83	1
8276	LR077702	HOSE - RADIATOR TO ENG. VENT ELBOW	LR077702 HOSE - RADIATOR TO ENG. VENT ELBOW Radiator Degas Line / From: K2000001	$31.33	1
8592	LR073372	CONNECTION - WATER OUTLET IN STOCK	LR073372 CONNECTION - WATER OUTLET From: K2000001 IN STOCK	$65.48	1

Cooling System Pipes And Hoses (Nitra Plant Build) (3.0 V6 D Gen2 Mono Turbo, Active Tranmission...

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Cooling System Pipes And Hoses (Nitra Plant Build) (3.0 V6 D Gen2 Mono Turbo, Active Tranmission...
