Cooling System Pipes And Hoses (Engine, Solihull Plant Build) (3.0 V6 D Gen2 Mono Turbo, Active...

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Cooling System Pipes And Hoses (Engine, Solihull Plant Build) (3.0 V6 D Gen2 Mono Turbo, Active...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR105435 BOLT $1.13 To Order
Photo Part No Description Price (each) Stock
LR000053 NUT - FLANGED $1.63 IN STOCK
Photo Part No Description Price (each) Stock
RYG500900 SCREW $4.21 To Order
Photo Part No Description Price (each) Stock
LR113130 HOSE - RADIATOR $120.92 To Order
Photo Part No Description Price (each) Stock
LR077702 HOSE - RADIATOR TO ENG. VENT ELBOW $31.35 To Order
Photo Part No Description Price (each) Stock
LR073372 CONNECTION - WATER OUTLET $65.53 IN STOCK
Photo Part No Description Price (each) Stock
LR100074 HOSE - OIL COOLER $93.74 To Order
Photo Part No Description Price (each) Stock
LR100076 HOSE - OIL COOLER $90.05 To Order
Photo Part No Description Price (each) Stock
LR099967 HOSE - HEATER WATER $80.83 To Order
Photo Part No Description Price (each) Stock
LR035631 HOSE - RADIATOR VENTILATION $13.24 To Order
Photo Part No Description Price (each) Stock
LR018829 GASKET - THERMOSTAT $3.69 To Order
Photo Part No Description Price (each) Stock
LR100064 VALVE - COOLANT FLOW CONTROL $115.74 To Order
LR133647 VALVE - COOLANT FLOW CONTROL $124.88 To Order
Photo Part No Description Price (each) Stock
LR126011 HOSE - HEATER WATER $243.06 To Order
LR099992 HOSE - HEATER WATER $97.04 To Order
View All

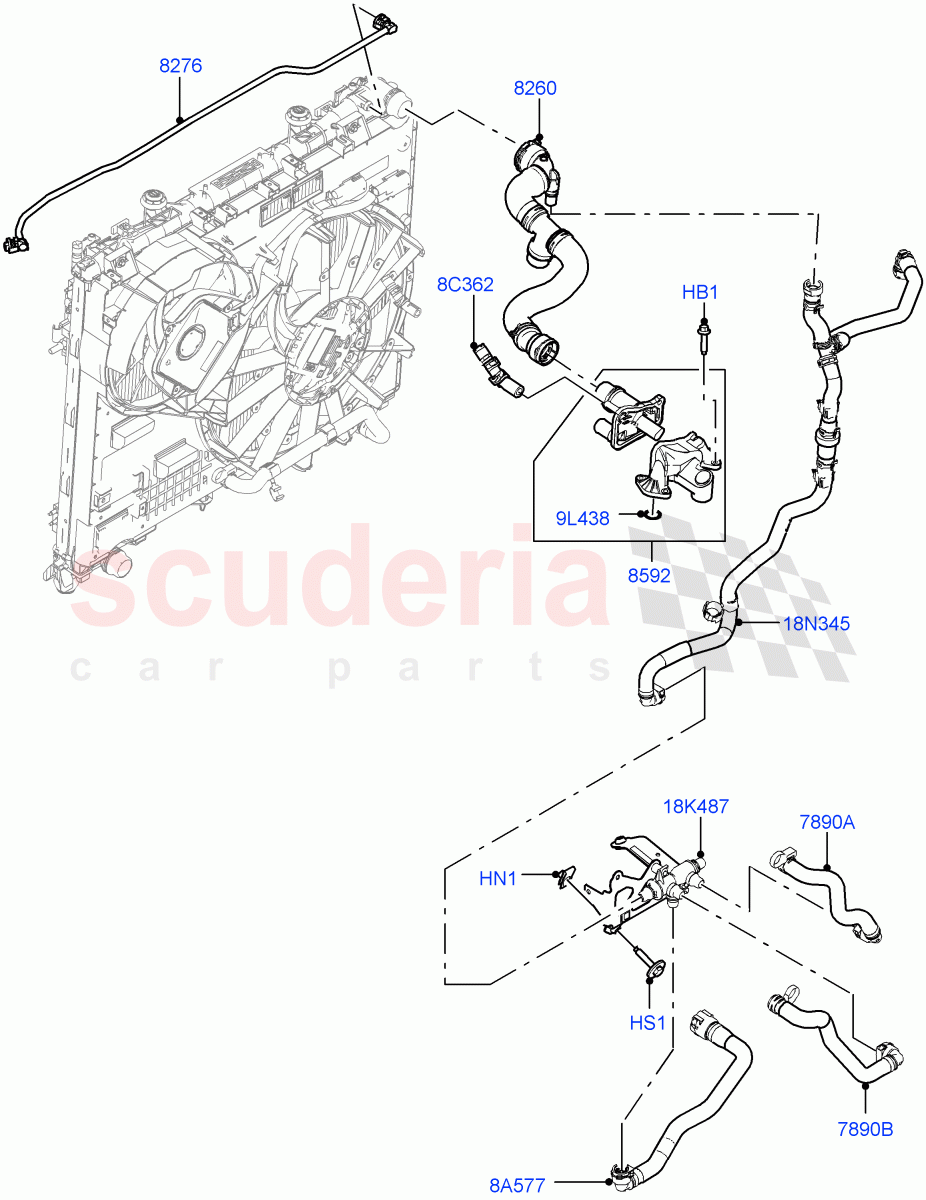

Cooling System Pipes And Hoses (Engine, Solihull Plant Build) (3.0 V6 D Gen2 Mono Turbo, Active Tranmission Warming) ((V) FROMKA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR105435
BOLT
M6 x 27MM / From: KA000001 		$1.13 4
HN1 LR000053
NUT - FLANGED
M6 / From: KA000001
IN STOCK 		$1.63 2
HS1 RYG500900
SCREW
Bolt And Washer, Hexagonal Head, M6X30 / From: KA000001 		$4.21 3
8A577 LR099967
HOSE - HEATER WATER
Valve To Low Temperature Radiator / From: KA000001 		$80.83 1
8C362 LR035631
HOSE - RADIATOR VENTILATION
Cooling System Bleed / From: KA000001 		$13.24 1
9L438 LR018829
GASKET - THERMOSTAT
From: KA000001 		$3.69 1
18K487 LR100064
VALVE - COOLANT FLOW CONTROL
With Bracket / From: KA000001 / To: KA093289 		$115.74 1
18K487 LR133647
VALVE - COOLANT FLOW CONTROL
With Bracket / From: KA093290 		$124.88 1
18N345 LR126011
HOSE - HEATER WATER
From: KA093290 		$243.06 1
18N345 LR099992
HOSE - HEATER WATER
From: KA000001 / To: KA093289 		$97.04 1
7890A LR100074
HOSE - OIL COOLER
Inlet / From: KA000001 		$93.74 1
7890B LR100076
HOSE - OIL COOLER
Outlet / From: KA000001 		$90.05 1
8260 LR113130
HOSE - RADIATOR
Radiator, Top / From: KA000001 		$120.92 1
8276 LR077702
HOSE - RADIATOR TO ENG. VENT ELBOW
Radiator Degas Line / From: KA000001 		$31.35 1
8592 LR073372
CONNECTION - WATER OUTLET
From: KA000001
IN STOCK 		$65.53 1
