Fuel Tank & Related Parts (2.0L Aj20P4 Petrol E100 Pta, Itatiaia (Brazil)) ((V) Fromlt000001)

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] - Fuel Tank & Related Parts (2.0L AJ20P4 Petrol E100 PTA, Itatiaia (Brazil)) ((V) FROMLT000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR088949 BOLT $3.96 To Order
Photo Part No Description Price (each) Stock
LR061655 CLAMP - FUEL SUPPLY TUBE $6.12 To Order
Photo Part No Description Price (each) Stock
LR006025 BOLT $1.39 IN STOCK
Photo Part No Description Price (each) Stock
LR115125 RETAINER - RIVET $1.03 To Order
Photo Part No Description Price (each) Stock
LR139184 TANK - FUEL $1,195.02 To Order
Photo Part No Description Price (each) Stock
LR053665 CAP - FUEL TANK FILLER $34.87 To Order
Photo Part No Description Price (each) Stock
LR126523 PIPE - FUEL FILLER $145.58 To Order
Photo Part No Description Price (each) Stock
LR126524 HOSE - FILLER PIPE $45.49 To Order
Photo Part No Description Price (each) Stock
LR126572 STRAP - FUEL TANK $58.06 To Order
Photo Part No Description Price (each) Stock
LR126505 HOSE - VENT $50.81 To Order
Photo Part No Description Price (each) Stock
LR126562 SHIELD $49.17 To Order
Photo Part No Description Price (each) Stock
LR126577 FOAM PAD - ENERGY ABSORBING $14.69 To Order
Photo Part No Description Price (each) Stock
LR126578 FOAM PAD - ENERGY ABSORBING $22.59 To Order
Photo Part No Description Price (each) Stock
LR126573 SHIELD $316.72 To Order
Photo Part No Description Price (each) Stock
LR139403 SHIELD $30.25 To Order
View All

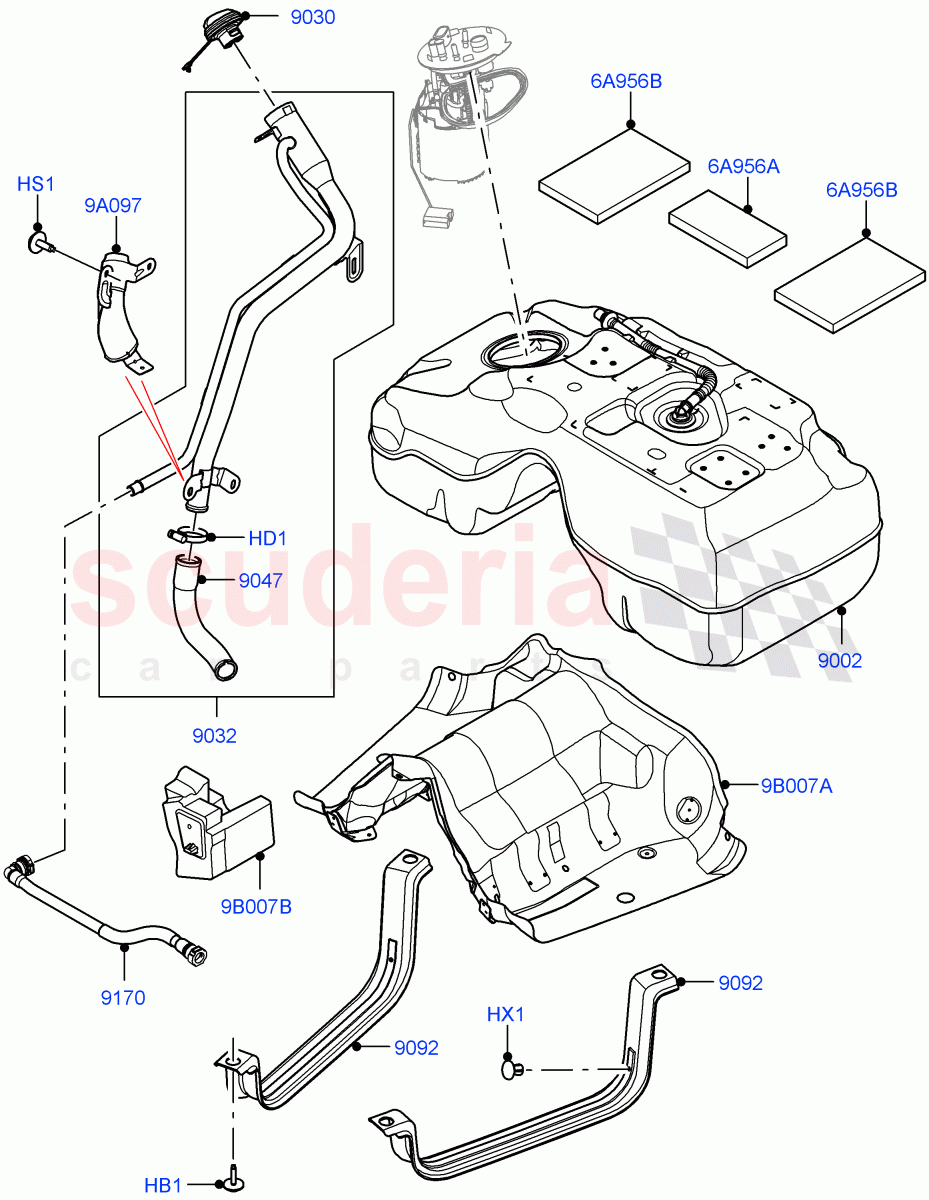

Fuel Tank & Related Parts (2.0L AJ20P4 Petrol E100 PTA, Itatiaia (Brazil)) ((V) FROMLT000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR088949
BOLT
Fuel Tank Strap, M6 X 40MM / From: LT000001 		$3.96 4
HD1 LR061655
CLAMP - FUEL SUPPLY TUBE
35-50 x 9 / From: LT000001 		$6.12 1
HS1 LR006025
BOLT
Bolt And Washer, M6 X 15 Hex, Shield / From: LT000001
IN STOCK 		$1.39 3
HX1 LR115125
RETAINER - RIVET
Fuel Tank Strap, Rivet Push Pin 7.8 - 8.8 X 0.8 - 9.5 Nylon / From: LT000001 		$1.03 2
6A956A LR126577
FOAM PAD - ENERGY ABSORBING
From: LT000001 		$14.69 1
6A956B LR126578
FOAM PAD - ENERGY ABSORBING
From: LT000001 		$22.59 2
9A097 LR126562
SHIELD
Filler Pipe / From: LT000001 		$49.17 1
9B007A LR126573
SHIELD
Main / From: LT000001 		$316.72 1
9B007B LR139403
SHIELD
From: LT000001 		$30.25 1
9002 LR139184
TANK - FUEL
Pet Tank - Flex Fuel / From: LT000001 		$1,195.02 1
9030 LR053665
CAP - FUEL TANK FILLER
From: LT000001 		$34.87 1
9032 LR126523
PIPE - FUEL FILLER
From: LT000001 		$145.58 1
9047 LR126524
HOSE - FILLER PIPE
From: LT000001 		$45.49 1
9092 LR126572
STRAP - FUEL TANK
RH/LH / From: LT000001 		$58.06 2
9170 LR126505
HOSE - VENT
From: LT000001 		$50.81 1
