Name: Fuel Lines (2.0L I4 High DOHC AJ200 Petrol, Changsu (China), Fuel Tank Filler Neck - DMTL, 2.0L I4 Mid DOHC AJ200 Petrol) ((V) FROMHG379388, (V) TOKG446856)
Rating: 4.4 (1 reviews)

Fuel Lines (2.0L I4 High DOHC AJ200 Petrol, Changsu (China), Fuel Tank Filler Neck - DMTL, 2.0L I4 Mid DOHC AJ200 Petrol) ((V) FROMHG379388, (V) TOKG446856) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] - Fuel Lines (2.0L I4 High DOHC AJ200 Petrol, Changsu (China), Fuel Tank Filler Neck - DMTL, 2.0L I4...

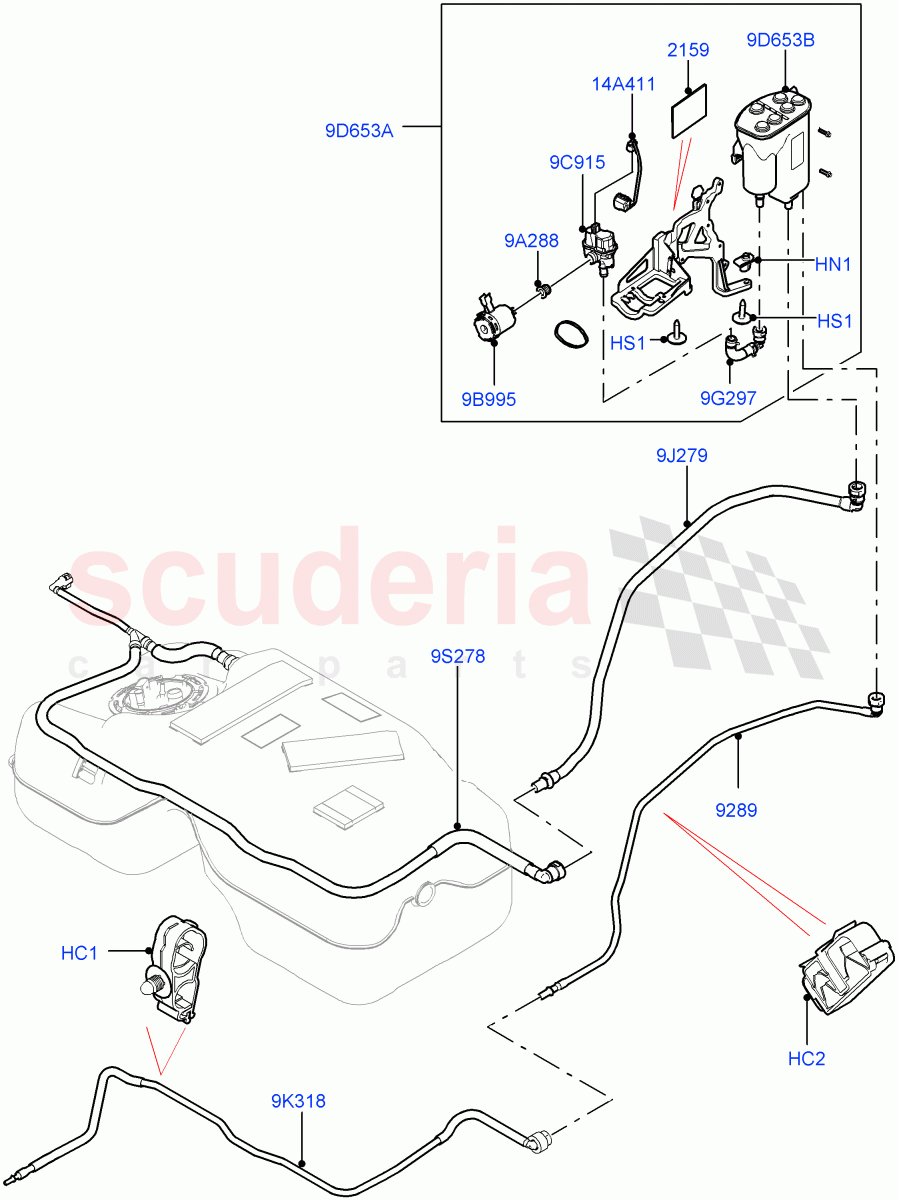

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR006655	CLIP	$1.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060351	CLIP - HOSE	$4.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000053	NUT - FLANGED	$1.62	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	SDG500030	SCREW	$1.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048459	PAD - FOAM	$19.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114731	TUBE - FUEL	$59.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003198	INSULATOR - CHARCOAL CANISTER	$7.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027066	FILTER - FUEL	$91.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR174757	VALVE - CONTROL	$192.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091260	FILTER - FUEL	$48.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114349	TUBE - FUEL VAPOUR	$42.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114730	TUBE - FUEL VAPOUR	$63.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114351	TUBE - FUEL VAPOUR	$54.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027062	WIRE - JUMPER	$26.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048421	CANNISTER - FUEL VAPOUR STORE	$583.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR145278	RESERVOIR	$253.57	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR006655	CLIP	LR006655 CLIP 14+12-20.5 X 7.5 X 1-3 / From: HG379388	$1.22	3
HC2	LR060351	CLIP - HOSE	LR060351 CLIP - HOSE Hose / From: HG379388	$4.43	3
HN1	LR000053	NUT - FLANGED IN STOCK	LR000053 NUT - FLANGED M6 / From: HG379388 IN STOCK	$1.62	1
HS1	SDG500030	SCREW	SDG500030 SCREW M6 x 27MM, Screw And Washer / From: HG379388	$1.16	2
9A288	LR003198	INSULATOR - CHARCOAL CANISTER	LR003198 INSULATOR - CHARCOAL CANISTER Charcoal Cannister / From: HG379388	$7.78	1
9B995	LR027066	FILTER - FUEL	LR027066 FILTER - FUEL Charcoal Cannister / From: HG379388	$91.41	1
9C915	LR174757	VALVE - CONTROL	LR174757 VALVE - CONTROL Charcoal Cannister / From: HG379388	$192.01	1
9D653A	LR048421	CANNISTER - FUEL VAPOUR STORE	LR048421 CANNISTER - FUEL VAPOUR STORE Charcoal Cannister, With Bracket / From: JG419913	$583.07	1
9D653B	LR145278	RESERVOIR	LR145278 RESERVOIR Charcoal Cannister / From: KG422269	$253.57	1
9G297	LR091260	FILTER - FUEL	LR091260 FILTER - FUEL Charcoal Cannister / From: KG422269	$48.07	1
9J279	LR114349	TUBE - FUEL VAPOUR	LR114349 TUBE - FUEL VAPOUR Fuel Tank Ventilation Pipe, Upper / From: HG379388	$42.11	1
9K318	LR114730	TUBE - FUEL VAPOUR	LR114730 TUBE - FUEL VAPOUR Lower / From: HG379388	$63.18	1
9S278	LR114351	TUBE - FUEL VAPOUR	LR114351 TUBE - FUEL VAPOUR Purge Line From Fuel Tank To Charcoal Canister / From: HG379388	$54.93	1
14A411	LR027062	WIRE - JUMPER	LR027062 WIRE - JUMPER Charcoal Cannister / From: HG379388	$26.74	1
2159	LR048459	PAD - FOAM	LR048459 PAD - FOAM Charcoal Cannister / From: HG379388	$19.11	1
9289	LR114731	TUBE - FUEL	LR114731 TUBE - FUEL Inlet Tube, Purge Line From Fuel Tank To Charcoal Canister / From: HG379388	$59.50	1

Fuel Lines (2.0L I4 High Dohc Aj200 Petrol, Changsu (China), Fuel Tank Filler Neck - Dmtl, 2.0L I4...
