Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] - Fuel Tank & Related Parts (2.0L I4 High DOHC AJ200 Petrol, 2.0L I4 Mid DOHC AJ200 Petrol, 2.0L I4...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR088949 BOLT $3.96 To Order
Photo Part No Description Price (each) Stock
LR002225 BOLT AND WASHER - HEX.HEAD $4.25 To Order
Photo Part No Description Price (each) Stock
LR061655 CLAMP - FUEL SUPPLY TUBE $6.12 To Order
Photo Part No Description Price (each) Stock
LR003643 NUT - SPECIAL $0.61 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.47 IN STOCK
Photo Part No Description Price (each) Stock
RYQ500170 RETAINER - RIVET $1.01 To Order
LR115125 RETAINER - RIVET $1.03 To Order
Photo Part No Description Price (each) Stock
LR084558 TANK - FUEL $814.26 To Order
LR101577 TANK - FUEL $1,194.38 To Order
Photo Part No Description Price (each) Stock
LR092779 CAP - FUEL TANK FILLER $39.50 To Order
LR181511 CAP - FUEL TANK FILLER $39.30 To Order
202123475 CAP - FUEL TANK FILLER $40.73 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR072674 PIPE - FUEL FILLER $158.57 To Order
LR104307 PIPE - FUEL FILLER $239.08 To Order
Photo Part No Description Price (each) Stock
LR061055 HOSE - FILLER PIPE $48.35 To Order
LR104413 HOSE - FILLER PIPE $72.05 To Order
Photo Part No Description Price (each) Stock
LR060352 HOSE - VENT $72.61 To Order
Photo Part No Description Price (each) Stock
LR094244 STRAP - FUEL TANK $89.77 To Order
Photo Part No Description Price (each) Stock
LR094242 STRAP - FUEL TANK $89.77 To Order
Photo Part No Description Price (each) Stock
LR077096 HEAT SHIELD - PROPSHAFT BEARING $69.46 To Order
Photo Part No Description Price (each) Stock
LR021822 CAP - FILLER $40.14 To Order
Photo Part No Description Price (each) Stock
LR112839 SHIELD $49.15 To Order
Photo Part No Description Price (each) Stock
LR076312 SHIELD - FUEL TANK $193.67 To Order
Photo Part No Description Price (each) Stock
LR063975 MOULDING - FUEL TANK PROTECTION $16.88 To Order
Photo Part No Description Price (each) Stock
LR060825 FOAM PAD - ENERGY ABSORBING $10.59 To Order
Photo Part No Description Price (each) Stock
LR060826 FOAM PAD - ENERGY ABSORBING $10.59 To Order
Photo Part No Description Price (each) Stock
LR025789 FOAM PAD - ENERGY ABSORBING $23.35 To Order
Photo Part No Description Price (each) Stock
LR061784 FOAM PAD - ENERGY ABSORBING $3.24 To Order
View All

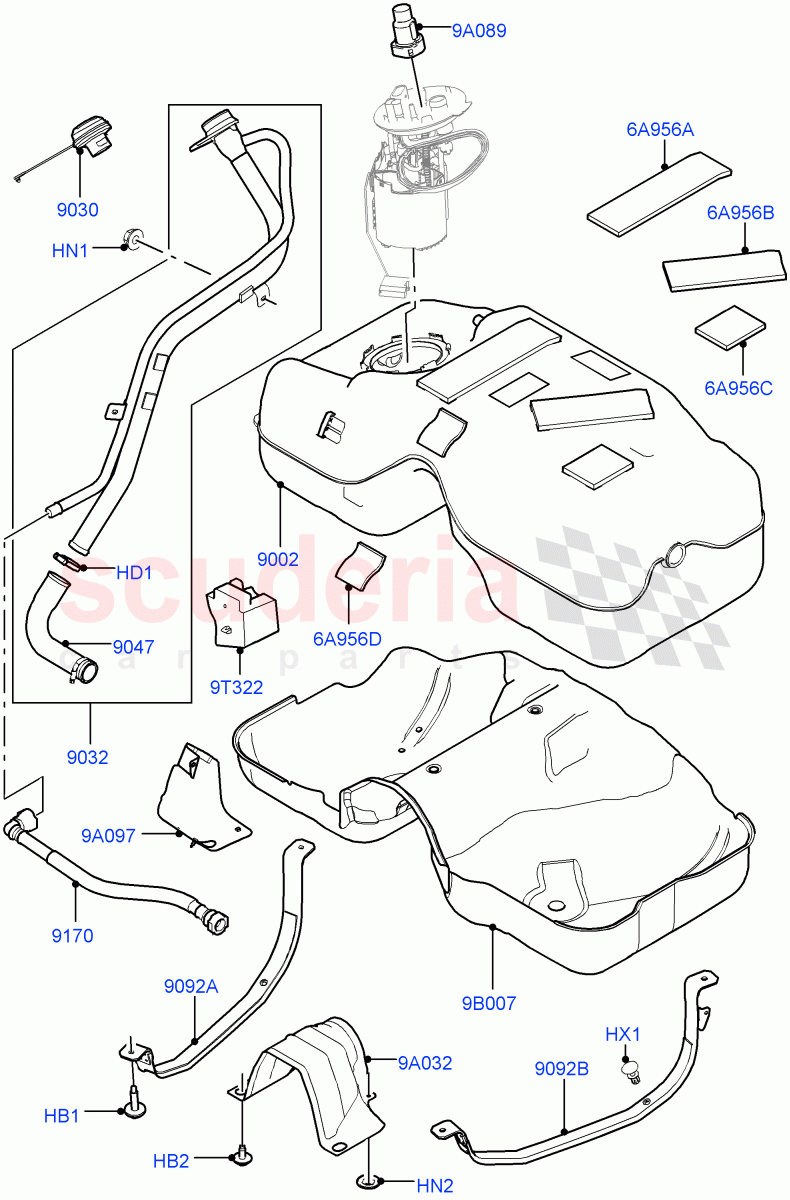

Fuel Tank & Related Parts (2.0L I4 High DOHC AJ200 Petrol, 2.0L I4 Mid DOHC AJ200 Petrol, 2.0L I4 Mid AJ200 Petrol E100) ((V) FROMJH000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR088949
BOLT
Fuel Tank Strap, M6 X 40MM / From: JH000001 		$3.96 4
HB2 LR002225
BOLT AND WASHER - HEX.HEAD
Front, Heatshield, M8 X 21MM / From: JH000001 		$4.25 2
HD1 LR061655
CLAMP - FUEL SUPPLY TUBE
35-50 x 9 / From: JH000001 		$6.12 1
HN1 LR003643
NUT - SPECIAL
Heatshield, M5 / From: JH000001 		$0.61 2
HN2 FN106046
NUT - HEX.
FILLER, Hexagonal Head, M6 / From: JH000001
IN STOCK 		$1.47 2
HX1 RYQ500170
RETAINER - RIVET
Fuel Tank Strap, Rivet Push Pin 7.8 - 8.8 X 0.8 - 9.5 Nylon / From: JH000001 / To: JH762920 		$1.01 2
HX1 LR115125
RETAINER - RIVET
Fuel Tank Strap, Rivet Push Pin 7.8 - 8.8 X 0.8 - 9.5 Nylon / From: JH762921 		$1.03 2
6A956A LR060825
FOAM PAD - ENERGY ABSORBING
290mm x 80mm x 10mm / From: JH000001 		$10.59 1
6A956B LR060826
FOAM PAD - ENERGY ABSORBING
210mm x 80mm x 10mm / From: JH000001 		$10.59 1
6A956C LR025789
FOAM PAD - ENERGY ABSORBING
100mm x 80mm x 10mm / From: JH000001 		$23.35 1
6A956D LR061784
FOAM PAD - ENERGY ABSORBING
Pet Tank W/O Leak Det - Std Filter / 85mm x 65mm x 2mm / From: JH000001 		$3.24 4
9A032 LR077096
HEAT SHIELD - PROPSHAFT BEARING
Front / From: JH000001 		$69.46 1
9A089 LR021822
CAP - FILLER
Pet Tank With Leak Det - Lrg Filter / From: JH000001 		$40.14 1
9A097 LR112839
SHIELD
Filler Pipe / From: JH000001 		$49.15 1
9B007 LR076312
SHIELD - FUEL TANK
Main / From: JH000001 		$193.67 1
9T322 LR063975
MOULDING - FUEL TANK PROTECTION
From: JH000001 		$16.88 1
9002 LR084558
TANK - FUEL
Pet Tank W/O Leak Det - Std Filter / From: JH000001 		$814.26 1
9002 LR101577
TANK - FUEL
Petrol Tank With Leak Detection / From: JH000001 		$1,194.38 1
9030 LR092779
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - DMTL / From: JH000001 / To: KH786113 		$39.50 1
9030 LR181511
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - Unleaded / From: JH000001 		$39.30 1
9030 202123475
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - DMTL / From: KH786114 / To: LH877317 		$40.73 1
9030 LR138720
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - DMTL / From: LH877318 		$39.28 1
9032 LR072674
PIPE - FUEL FILLER
Fuel Tank Filler Neck - Unleaded / From: JH000001 		$158.57 1
9032 LR104307
PIPE - FUEL FILLER
Fuel Tank Filler Neck - DMTL / From: JH000001 		$239.08 1
9047 LR061055
HOSE - FILLER PIPE
Fuel Tank Filler Neck - Unleaded / From: JH000001 		$48.35 1
9047 LR104413
HOSE - FILLER PIPE
Fuel Tank Filler Neck - DMTL / From: JH000001 		$72.05 1
9092A LR094244
STRAP - FUEL TANK
RH / From: JH000001 		$89.77 1
9092B LR094242
STRAP - FUEL TANK
LH / From: JH000001 		$89.77 1
9170 LR060352
HOSE - VENT
Fuel Tank Filler Neck - Unleaded / From: JH000001 		$72.61 1
