Fuel Lines (2.0L I4 High Dohc Aj200 Petrol, Changsu (China), 2.0L I4 Mid Dohc Aj200 Petrol)

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] - Fuel Lines (2.0L I4 High DOHC AJ200 Petrol, Changsu (China), 2.0L I4 Mid DOHC AJ200 Petrol)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR000893 NUT $1.04 IN STOCK
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.47 IN STOCK
Photo Part No Description Price (each) Stock
LR003643 NUT - SPECIAL $0.61 To Order
Photo Part No Description Price (each) Stock
LR005896 RETAINER - RIVET $1.47 IN STOCK
Photo Part No Description Price (each) Stock
LR072003 SHIELD - FUEL TUBES $18.67 To Order
Photo Part No Description Price (each) Stock
LR075650 TUBE - FUEL $44.37 To Order
Photo Part No Description Price (each) Stock
LR075641 PIPE - FUEL $56.65 To Order
Photo Part No Description Price (each) Stock
LR094173 TUBE - FUEL SUPPLY $164.62 To Order
LR094260 TUBE - FUEL SUPPLY $227.32 To Order
Photo Part No Description Price (each) Stock
LR091590 BRACKET - FUEL TUBE SUPPORT $36.66 To Order
Photo Part No Description Price (each) Stock
LR005291 BRACKET - FUEL LINES $44.38 To Order
Photo Part No Description Price (each) Stock
LR005634 SHIELD - FUEL TUBES $6.17 To Order
Photo Part No Description Price (each) Stock
LR003826 SHIELD - FUEL TUBES $7.76 To Order
Photo Part No Description Price (each) Stock
LR094430 TUBE - FUEL SUPPLY AND VAPOUR $182.50 To Order
Photo Part No Description Price (each) Stock
LR094174 TUBE - FUEL SUPPLY AND VAPOUR $202.49 To Order
Photo Part No Description Price (each) Stock
LR081987 TUBE - FUEL SUPPLY $36.20 To Order
Photo Part No Description Price (each) Stock
LR074639 TUBE - FUEL SUPPLY $31.54 To Order
View All

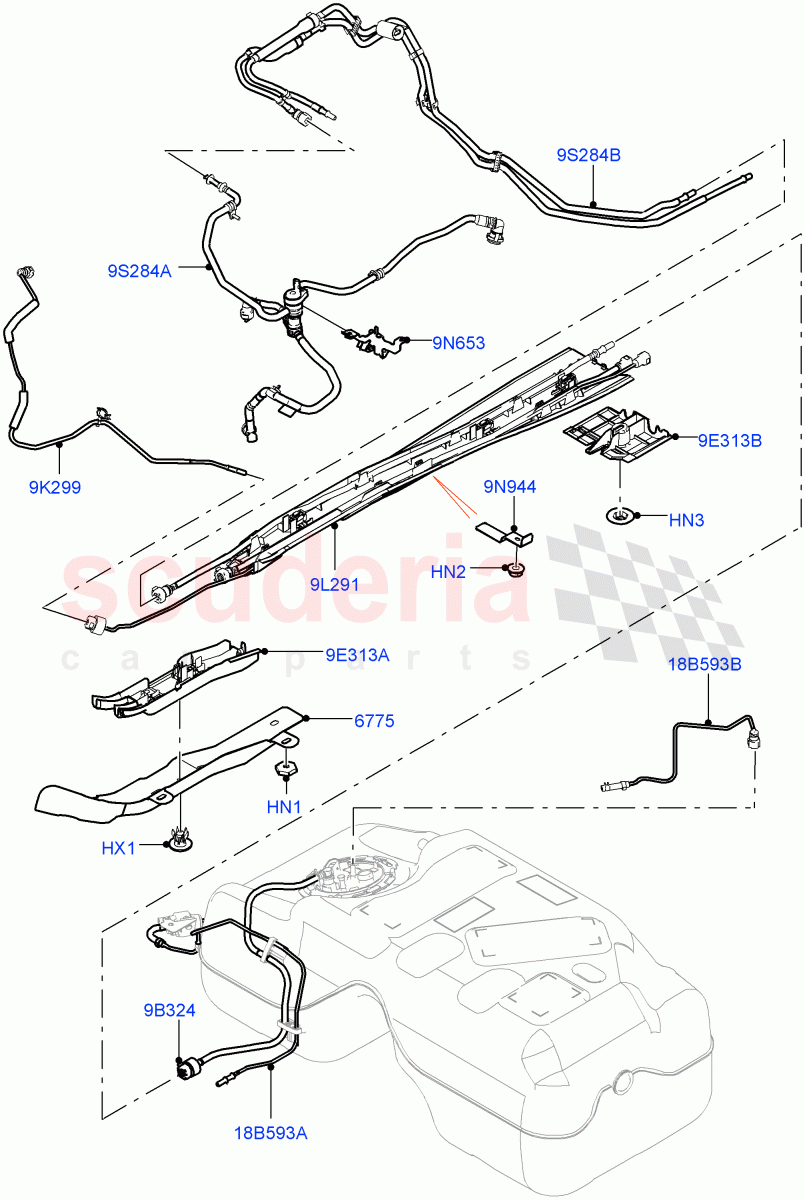

Fuel Lines (2.0L I4 High DOHC AJ200 Petrol, Changsu (China), 2.0L I4 Mid DOHC AJ200 Petrol) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 LR000893
NUT
"Spring", Front, Shield / From: HG379388
IN STOCK 		$1.04 2
HN2 FN106046
NUT - HEX.
Hexagonal Head, M6, Support Bracket / From: HG379388
IN STOCK 		$1.47 1
HN3 LR003643
NUT - SPECIAL
M5, Rear, Shield / From: HG379388 		$0.61 1
HX1 LR005896
RETAINER - RIVET
10 X 4 - 5, Front, Shield / From: HG379388
IN STOCK 		$1.47 2
9B324 LR075650
TUBE - FUEL
Rear / From: HG379388 		$44.37 1
9E313A LR005634
SHIELD - FUEL TUBES
Front / From: HG379388 		$6.17 1
9E313B LR003826
SHIELD - FUEL TUBES
Rear / From: HG379388 		$7.76 1
9K299 LR075641
PIPE - FUEL
With Fuel Fired Heater / Front / From: HG379388 		$56.65 1
9L291 LR094173
TUBE - FUEL SUPPLY
Fuel Heater W/Pk Heat With Remote / Tube Assembly / From: HG379388 		$164.62 1
9L291 LR094260
TUBE - FUEL SUPPLY
With Fresh Air Heater / Tube Assembly / From: HG379388 		$227.32 1
9N653 LR091590
BRACKET - FUEL TUBE SUPPORT
From: HG379388 		$36.66 1
9N944 LR005291
BRACKET - FUEL LINES
Support Bracket / From: HG379388 		$44.38 1
9S284A LR094430
TUBE - FUEL SUPPLY AND VAPOUR
Front / From: HG379388 		$182.50 1
9S284B LR094174
TUBE - FUEL SUPPLY AND VAPOUR
Rear / From: HG379388 		$202.49 1
18B593A LR081987
TUBE - FUEL SUPPLY
With Fuel Fired Heater / From: HG379388 		$36.20 1
18B593B LR074639
TUBE - FUEL SUPPLY
With Fuel Fired Heater / Fuel Tank To Fuel Burning Heater / From: HG379388 		$31.54 1
6775 LR072003
SHIELD - FUEL TUBES
Front / From: HG379388 		$18.67 1
