Fuel Lines (2.0L AJ20P4 Petrol High PTA, Halewood (UK), 2.0L AJ20P4 Petrol Mid PTA) ((V) FROMLH000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] - Fuel Lines (2.0L AJ20P4 Petrol High PTA, Halewood (UK), 2.0L AJ20P4 Petrol Mid PTA) ((V)...

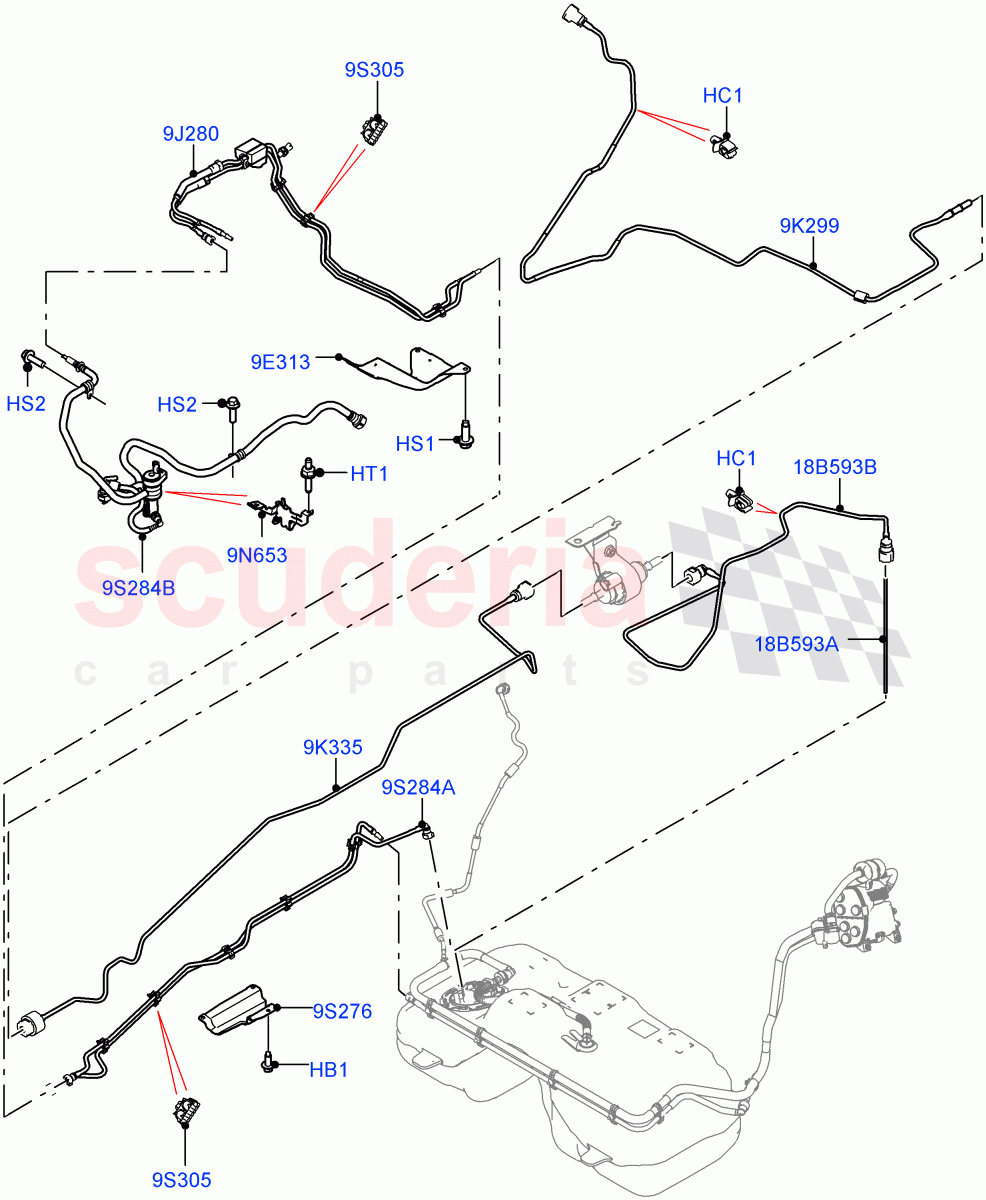

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500200	BOLT	$0.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113126	CLIP - BRAKE PIPE	$0.61	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500470	SCREW	$0.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	$1.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR089197	STUD	$3.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133032	SHIELD - FUEL TUBES	$80.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139134	PIPE - FUEL	$222.79	To Order
	LR139949	PIPE - FUEL	$178.74	To Order
	LR115335	PIPE - FUEL	$187.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115337	PIPE - FUEL	$189.11	To Order
	LR139954	PIPE - FUEL	$125.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115338	TUBE - FUEL	$190.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126845	BRACKET - FUEL TUBE SUPPORT	$33.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115399	SHIELD - FUEL TUBES	$44.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117831	CLIP	$3.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR127714	TUBE - FUEL SUPPLY AND VAPOUR	$182.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126491	TUBE - FUEL SUPPLY AND VAPOUR	$181.83	To Order
	LR162697	TUBE - FUEL VAPOUR	$200.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115331	TUBE - AUXILIARY HEATER SUPPLY	$42.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126566	TUBE - FUEL SUPPLY	$44.69	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	RYG500200	BOLT	RYG500200 BOLT Hexagonal Head, M8 X 16MM / From: LH000001	$0.67	3
HC1	LR113126	CLIP - BRAKE PIPE	LR113126 CLIP - BRAKE PIPE With Fuel Fired Heater / 4.75X8X0.8-4, Fuel Fired Heater Pipe, Single / From: LH000001	$0.61	6
HS1	RYG500470	SCREW	RYG500470 SCREW Hexagonal Head, M10 X 25MM / From: LH000001	$0.61	3
HS2	LR073655	SCREW IN STOCK	LR073655 SCREW Hexagonal Head, M6 X 20MM / From: LH000001 IN STOCK	$1.60	2
HT1	LR089197	STUD	LR089197 STUD M6 x 22 mm + M6 x 12 mm / From: LH000001	$3.99	1
9E313	LR133032	SHIELD - FUEL TUBES	LR133032 SHIELD - FUEL TUBES Front / From: LH000001	$80.30	1
9J280	LR139134	PIPE - FUEL	LR139134 PIPE - FUEL Front / From: LH854837 / To: LH999999	$222.79	1
9J280	LR139949	PIPE - FUEL	LR139949 PIPE - FUEL Front / From: MH000001	$178.74	1
9J280	LR115335	PIPE - FUEL	LR115335 PIPE - FUEL Front / From: LH000001 / To: LH854836	$187.72	1
9K299	LR115337	PIPE - FUEL	LR115337 PIPE - FUEL Fuel Heater W/Pk Heat With Remote / To Fuel Fired Heater / From: LH000001 / To: LH999999	$189.11	1
9K299	LR139954	PIPE - FUEL	LR139954 PIPE - FUEL Fuel Heater W/Pk Heat With Remote / To Fuel Fired Heater / From: MH000001	$125.43	1
9K335	LR115338	TUBE - FUEL	LR115338 TUBE - FUEL Fuel Fired Heater With Park Heat / Pump To Heater / From: LH000001	$190.11	1
9N653	LR126845	BRACKET - FUEL TUBE SUPPORT	LR126845 BRACKET - FUEL TUBE SUPPORT Purge Valve To Carrier / From: LH000001	$33.04	1
9S276	LR115399	SHIELD - FUEL TUBES	LR115399 SHIELD - FUEL TUBES Rear / From: LH000001	$44.17	1
9S284A	LR127714	TUBE - FUEL SUPPLY AND VAPOUR	LR127714 TUBE - FUEL SUPPLY AND VAPOUR Rear / From: LH000001	$182.02	1
9S284B	LR126491	TUBE - FUEL SUPPLY AND VAPOUR	LR126491 TUBE - FUEL SUPPLY AND VAPOUR Front / From: LH000001 / To: NH905936	$181.83	1
9S284B	LR162697	TUBE - FUEL VAPOUR	LR162697 TUBE - FUEL VAPOUR Front / From: NH905937	$200.59	1
9S305	LR117831	CLIP	LR117831 CLIP Clip-Fuel Tube(Dual Latch) / From: LH000001	$3.59	1
18B593A	LR115331	TUBE - AUXILIARY HEATER SUPPLY	LR115331 TUBE - AUXILIARY HEATER SUPPLY Fuel Heater W/Pk Heat With Remote / In Tank / From: LH000001	$42.65	1
18B593B	LR126566	TUBE - FUEL SUPPLY	LR126566 TUBE - FUEL SUPPLY With Fuel Fired Heater / Tank To Pump / From: LH000001	$44.69	1
