Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] - Fuel Lines (Rear) (2.0L I4 Mid DOHC AJ200 Petrol, (+) "CDN/MEX/USA", Fuel Tank Filler Neck - DMTL,...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR006655 CLIP $1.23 To Order
Photo Part No Description Price (each) Stock
LR060351 CLIP - HOSE $4.43 To Order
Photo Part No Description Price (each) Stock
LR000053 NUT - FLANGED $1.62 IN STOCK
Photo Part No Description Price (each) Stock
SDG500030 SCREW $1.16 To Order
Photo Part No Description Price (each) Stock
LR155109 SCREW $6.43 To Order
Photo Part No Description Price (each) Stock
LR048459 PAD - FOAM $19.12 To Order
Photo Part No Description Price (each) Stock
LR114731 TUBE - FUEL $59.56 To Order
Photo Part No Description Price (each) Stock
LR155318 BRACKET - SUPPORT $44.68 To Order
Photo Part No Description Price (each) Stock
LR003198 INSULATOR - CHARCOAL CANISTER $7.79 To Order
Photo Part No Description Price (each) Stock
LR027066 FILTER - FUEL $91.51 To Order
LR155104 FILTER - FUEL $36.22 To Order
Photo Part No Description Price (each) Stock
LR174757 VALVE - CONTROL $192.20 To Order
Photo Part No Description Price (each) Stock
LR155122 HOSE - FUEL VAPOUR $339.37 To Order
Photo Part No Description Price (each) Stock
LR091260 FILTER - FUEL $48.12 To Order
LR155124 FILTER - FUEL $48.12 To Order
Photo Part No Description Price (each) Stock
LR114349 TUBE - FUEL VAPOUR $42.15 To Order
Photo Part No Description Price (each) Stock
LR114730 TUBE - FUEL VAPOUR $63.25 To Order
Photo Part No Description Price (each) Stock
LR114351 TUBE - FUEL VAPOUR $54.99 To Order
Photo Part No Description Price (each) Stock
LR155317 BRACKET - SUPPORT $30.43 To Order
Photo Part No Description Price (each) Stock
LR027062 WIRE - JUMPER $26.77 To Order
Photo Part No Description Price (each) Stock
LR048421 CANNISTER - FUEL VAPOUR STORE $583.66 To Order
LR155134 CANNISTER - FUEL VAPOUR STORE $604.94 To Order
Photo Part No Description Price (each) Stock
LR027061 RESERVOIR - FUEL VAPOUR SYSTEM $253.68 To Order
View All

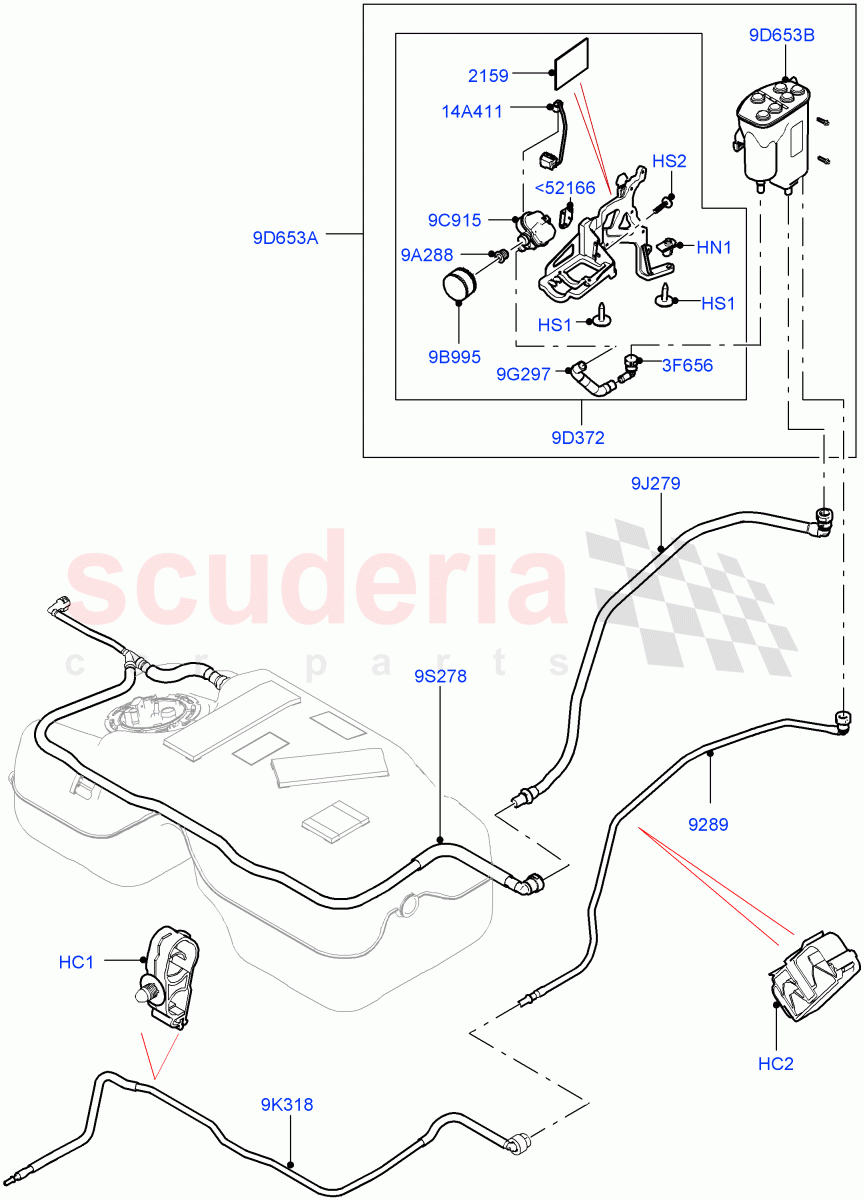

Fuel Lines (Rear) (2.0L I4 Mid DOHC AJ200 Petrol, (+) "CDN/MEX/USA", Fuel Tank Filler Neck - DMTL, 2.0L I4 High DOHC AJ200 Petrol) ((V) FROMJH000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<52166 LR155317
BRACKET - SUPPORT
Valve / From: JH721908 		$30.43 1
HC1 LR006655
CLIP
14+12-20.5 X 7.5 X 1-3 / From: JH000001 		$1.23 3
HC2 LR060351
CLIP - HOSE
Hose / From: JH000001 		$4.43 3
HN1 LR000053
NUT - FLANGED
M6 / From: JH000001
IN STOCK 		$1.62 1
HS1 SDG500030
SCREW
M6 x 27MM, Screw And Washer / From: JH000001 		$1.16 2
HS2 LR155109
SCREW
5 x 20MM / From: JH721908 		$6.43 4
3F656 LR155318
BRACKET - SUPPORT
From: JH721908 		$44.68 1
9A288 LR003198
INSULATOR - CHARCOAL CANISTER
Charcoal Cannister / From: JH000001 		$7.79 1
9B995 LR027066
FILTER - FUEL
Charcoal Cannister / From: JH000001 / To: JH721907 		$91.51 1
9B995 LR155104
FILTER - FUEL
Charcoal Cannister / From: JH721908 		$36.22 1
9C915 LR174757
VALVE - CONTROL
Charcoal Cannister / From: JH000001 		$192.20 1
9D372 LR155122
HOSE - FUEL VAPOUR
From: JH721908 		$339.37 1
9D653A LR048421
CANNISTER - FUEL VAPOUR STORE
Charcoal Cannister, With Bracket / From: JH000001 / To: JH721907 		$583.66 1
9D653A LR155134
CANNISTER - FUEL VAPOUR STORE
Charcoal Cannister, With Bracket / From: JH721908 		$604.94 1
9D653B LR027061
RESERVOIR - FUEL VAPOUR SYSTEM
Charcoal Cannister / From: JH000001 		$253.68 1
9G297 LR091260
FILTER - FUEL
Charcoal Cannister / From: JH000001 / To: JH721907 		$48.12 1
9G297 LR155124
FILTER - FUEL
Charcoal Cannister / From: JH721908 		$48.12 1
9J279 LR114349
TUBE - FUEL VAPOUR
Fuel Tank Ventilation Pipe, Upper / From: JH000001 		$42.15 1
9K318 LR114730
TUBE - FUEL VAPOUR
Lower / From: JH000001 		$63.25 1
9S278 LR114351
TUBE - FUEL VAPOUR
Purge Line From Fuel Tank To Charcoal Canister / From: JH000001 		$54.99 1
14A411 LR027062
WIRE - JUMPER
Charcoal Cannister / From: JH000001 		$26.77 1
2159 LR048459
PAD - FOAM
Charcoal Cannister / From: JH000001 		$19.12 1
9289 LR114731
TUBE - FUEL
Inlet Tube, Purge Line From Fuel Tank To Charcoal Canister / From: JH000001 		$59.56 1
