Name: Vacuum Control And Air Injection (2.0L I4 DSL MID DOHC AJ200, Standard Electric Starter Motor, 2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMGH000001)
Rating: 4.9 (1 reviews)

Vacuum Control And Air Injection (2.0L I4 DSL MID DOHC AJ200, Standard Electric Starter Motor, 2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMGH000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] - Vacuum Control And Air Injection (2.0L I4 DSL MID DOHC AJ200, Standard Electric Starter Motor, 2.0L...

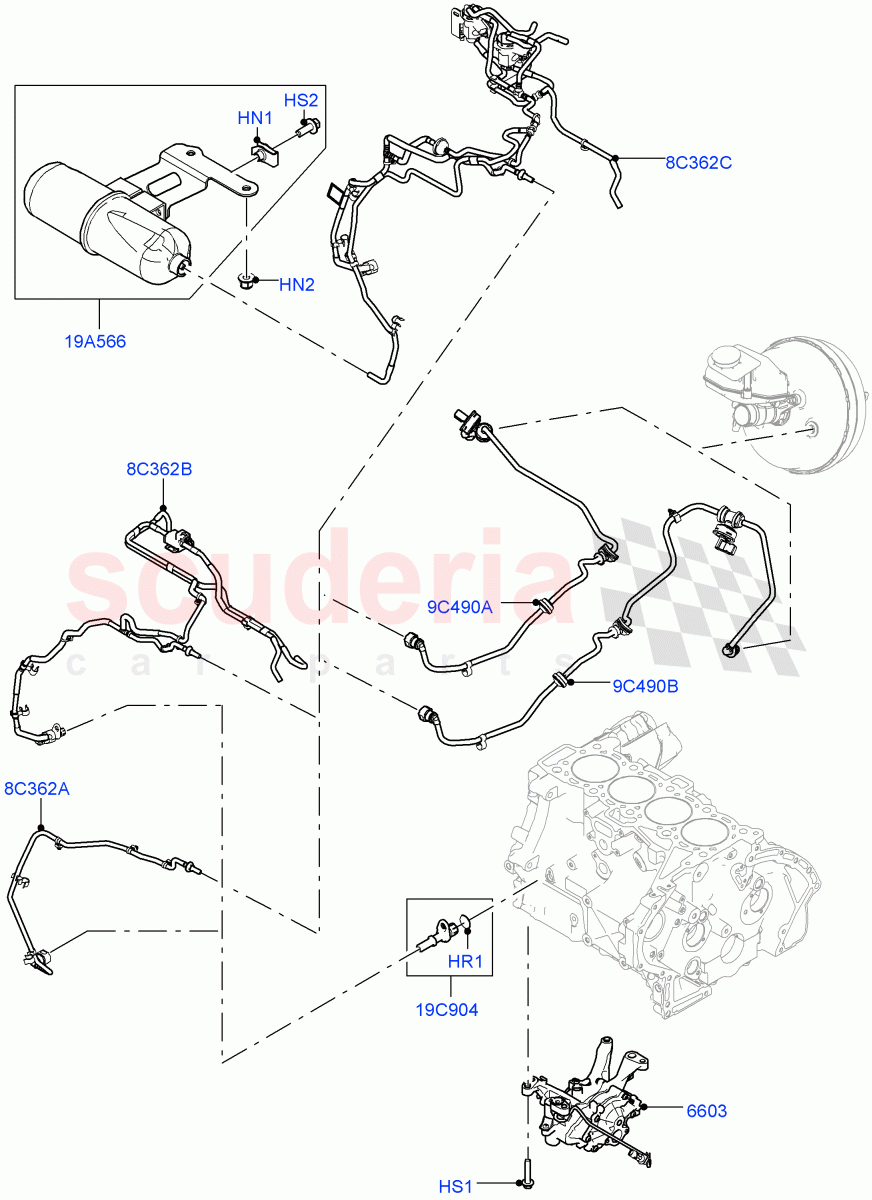

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR000053	NUT - FLANGED	$1.62	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FY106046	NUT - HEX.	$0.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR106648	O-RING	$6.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073649	SCREW	$2.52	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106166	SCREW	$1.24	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR078805	PUMP - OIL & VACUUM	$596.71	To Order
	LR087668	PUMP - OIL & VACUUM	$555.31	To Order
	LR110501	PUMP - OIL & VACUUM	$606.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094053	RESERVOIR - VACUUM	$207.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR148195	CONNECTOR - VACUUM TUBE	$27.88	To Order
	LR148195	CONNECTOR - VACUUM TUBE	$27.88	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073743	HOSE - VACUUM CONTROL HARNESS	$48.05	To Order
	LR080279	HOSE - VACUUM	$43.35	To Order
	LR080279	HOSE - VACUUM	$43.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084920	HOSE - VACUUM	$171.14	To Order
	LR092850	HOSE - VACUUM	$138.95	To Order
	LR105965	HOSE - VACUUM	$139.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094526	HOSE - VACUUM	$448.17	To Order
	LR116600	HOSE - VACUUM	$277.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072051	MANIFOLD - VACUUM SUPPLY	$115.76	To Order
	LR083655	MANIFOLD - VACUUM SUPPLY	$111.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072053	MANIFOLD - VACUUM SUPPLY	$52.85	To Order
	LR093061	MANIFOLD - VACUUM SUPPLY	$101.31	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HN1	LR000053	NUT - FLANGED IN STOCK	LR000053 NUT - FLANGED 2.0L I4 DSL HIGH DOHC AJ200 / M6 / From: JH000001 IN STOCK	$1.62	2
HN2	FY106046	NUT - HEX. IN STOCK	FY106046 NUT - HEX. 2.0L I4 DSL HIGH DOHC AJ200 / Hexagonal Head, M6 / From: JH000001 IN STOCK	$0.68	2
HR1	LR106648	O-RING	LR106648 O-RING Connector, Vacuum / From: GH000001	$6.10	1
HS1	LR073649	SCREW	LR073649 SCREW M8 x 40MM / From: GH000001	$2.52	4
HS2	FS106166	SCREW IN STOCK	FS106166 SCREW 2.0L I4 DSL HIGH DOHC AJ200 / Hexagonal Head, M6 X 16MM / From: JH000001 IN STOCK	$1.24	2
8C362A	LR073743	HOSE - VACUUM CONTROL HARNESS	LR073743 HOSE - VACUUM CONTROL HARNESS From: GH000001 / To: GH550103	$48.05	1
8C362A	LR080279	HOSE - VACUUM	LR080279 HOSE - VACUUM From: GH550104 / To: GH999999	$43.35	1
8C362A	LR080279	HOSE - VACUUM	LR080279 HOSE - VACUUM 2.0L I4 DSL MID DOHC AJ200, EU6 + DPF Emissions / From: HH000001	$43.35	1
8C362B	LR084920	HOSE - VACUUM	LR084920 HOSE - VACUUM Euro Stage 4 Emissions / From: HH000001 / To: HH662449	$171.14	1
8C362B	LR092850	HOSE - VACUUM	LR092850 HOSE - VACUUM Euro Stage 4 Emissions / From: HH662450 / To: HH710205	$138.95	1
8C362B	LR105965	HOSE - VACUUM	LR105965 HOSE - VACUUM Euro Stage 4 Emissions / From: HH710206	$139.97	1
8C362C	LR094526	HOSE - VACUUM	LR094526 HOSE - VACUUM 2.0L I4 DSL HIGH DOHC AJ200, Proconve L6 Emissions / From: JH000001	$448.17	1
8C362C	LR116600	HOSE - VACUUM	LR116600 HOSE - VACUUM 2.0L I4 DSL HIGH DOHC AJ200, 9 Speed Auto AWD, EU6D Diesel + DPF Emissions / From: KH000001	$277.97	1
9C490A	LR072051	MANIFOLD - VACUUM SUPPLY	LR072051 MANIFOLD - VACUUM SUPPLY RHD / From: GH000001 / To: GH999999	$115.76	1
9C490A	LR083655	MANIFOLD - VACUUM SUPPLY	LR083655 MANIFOLD - VACUUM SUPPLY RHD / From: HH000001	$111.09	1
9C490B	LR072053	MANIFOLD - VACUUM SUPPLY	LR072053 MANIFOLD - VACUUM SUPPLY LHD / From: GH000001 / To: HH645775	$52.85	1
9C490B	LR093061	MANIFOLD - VACUUM SUPPLY	LR093061 MANIFOLD - VACUUM SUPPLY LHD / From: HH645776	$101.31	1
19A566	LR094053	RESERVOIR - VACUUM	LR094053 RESERVOIR - VACUUM 2.0L I4 DSL HIGH DOHC AJ200 / From: JH000001	$207.29	1
19C904	LR148195	CONNECTOR - VACUUM TUBE	LR148195 CONNECTOR - VACUUM TUBE From: GH000001 / To: LH878225	$27.88	1
19C904	LR148195	CONNECTOR - VACUUM TUBE	LR148195 CONNECTOR - VACUUM TUBE From: LH878226	$27.88	1
6603	LR078805	PUMP - OIL & VACUUM	LR078805 PUMP - OIL & VACUUM From: GH000001 / To: GH999999	$596.71	1
6603	LR087668	PUMP - OIL & VACUUM	LR087668 PUMP - OIL & VACUUM From: HH000001 / To: JH745851	$555.31	1
6603	LR110501	PUMP - OIL & VACUUM	LR110501 PUMP - OIL & VACUUM From: JH745852	$606.53	1
