Name: Exhaust Gas Recirculation (High Pressure EGR) (2.0L I4 DSL MID DOHC AJ200, Japanese Emission + DPF, Stage V Plus DPF, 2.0L I4 DSL HIGH DOHC AJ200, Proconve L6 Emissions) ((V) FROMKH000001)
Rating: 4.6 (1 reviews)

Exhaust Gas Recirculation (High Pressure EGR) (2.0L I4 DSL MID DOHC AJ200, Japanese Emission + DPF, Stage V Plus DPF, 2.0L I4 DSL HIGH DOHC AJ200, Proconve L6 Emissions) ((V) FROMKH000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] - Exhaust Gas Recirculation (High Pressure EGR) (2.0L I4 DSL MID DOHC AJ200, Japanese Emission + DPF,...

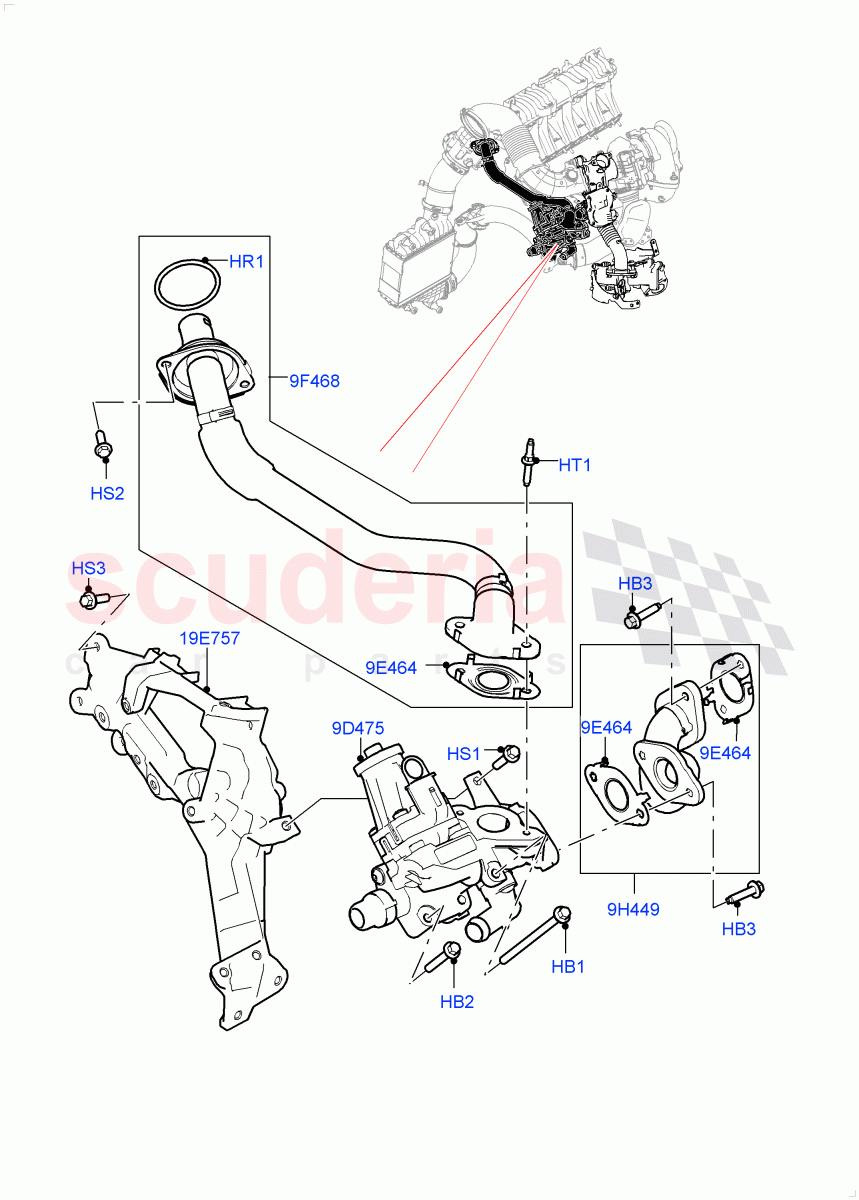

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR073740	BOLT	$3.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073735	BOLT	$1.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073739	BOLT	$1.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083963	O-RING	$10.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071842	SCREW AND WASHER - HEX HEAD	$1.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071774	SCREW	$2.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	$1.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR052757	STUD	$2.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110291	VALVE - EXHAUST GAS RECIRCULATION	$385.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082314	GASKET - EXHAUST MANIFOLD	$12.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR111536	TUBE - EGR VALVE TO INLET MANIFOLD	$145.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073732	TUBE - EXHAUST GAS RECIRCULATION	$87.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073742	BRACKET - SUPPORT	$44.04	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR073740	BOLT	LR073740 BOLT M6 x 100MM / From: KH000001	$3.12	1
HB2	LR073735	BOLT	LR073735 BOLT M6 X 40MM / From: KH000001	$1.40	1
HB3	LR073739	BOLT	LR073739 BOLT M6 X 25MM / From: KH000001	$1.35	4
HR1	LR083963	O-RING	LR083963 O-RING Inlet Manifold / From: KH000001	$10.42	1
HS1	LR071842	SCREW AND WASHER - HEX HEAD	LR071842 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 X 25MM / From: KH000001	$1.35	1
HS2	LR071774	SCREW	LR071774 SCREW Hexagonal Head, M6 X 20MM / From: KH000001	$2.31	2
HS3	LR073655	SCREW IN STOCK	LR073655 SCREW Bracket, Hexagonal Head, M6 X 20MM / From: KH000001 IN STOCK	$1.60	5
HT1	LR052757	STUD	LR052757 STUD M6 X 25 / M6 X 15 / From: KH000001	$2.29	2
9D475	LR110291	VALVE - EXHAUST GAS RECIRCULATION	LR110291 VALVE - EXHAUST GAS RECIRCULATION From: KH000001	$385.03	1
9E464	LR082314	GASKET - EXHAUST MANIFOLD	LR082314 GASKET - EXHAUST MANIFOLD From: KH000001	$12.77	3
9F468	LR111536	TUBE - EGR VALVE TO INLET MANIFOLD	LR111536 TUBE - EGR VALVE TO INLET MANIFOLD From: KH000001	$145.67	1
9H449	LR073732	TUBE - EXHAUST GAS RECIRCULATION	LR073732 TUBE - EXHAUST GAS RECIRCULATION From: KH000001	$87.90	1
19E757	LR073742	BRACKET - SUPPORT	LR073742 BRACKET - SUPPORT From: KH000001	$44.04	1

Exhaust Gas Recirculation (High Pressure Egr) (2.0L I4 Dsl Mid Dohc Aj200, Japanese Emission + Dpf,...

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel]

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] - Exhaust Gas Recirculation (High Pressure EGR) (2.0L I4 DSL MID DOHC AJ200, Japanese Emission + DPF,...
