Name: Exhaust Gas Recirculation (Low Pressure EGR) (2.0L I4 DSL MID DOHC AJ200, Euro Stage 4 Emissions) ((V) FROMKH000001)
Rating: 5.0 (1 reviews)

Exhaust Gas Recirculation (Low Pressure EGR) (2.0L I4 DSL MID DOHC AJ200, Euro Stage 4 Emissions) ((V) FROMKH000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] - Exhaust Gas Recirculation (Low Pressure EGR) (2.0L I4 DSL MID DOHC AJ200, Euro Stage 4 Emissions)...

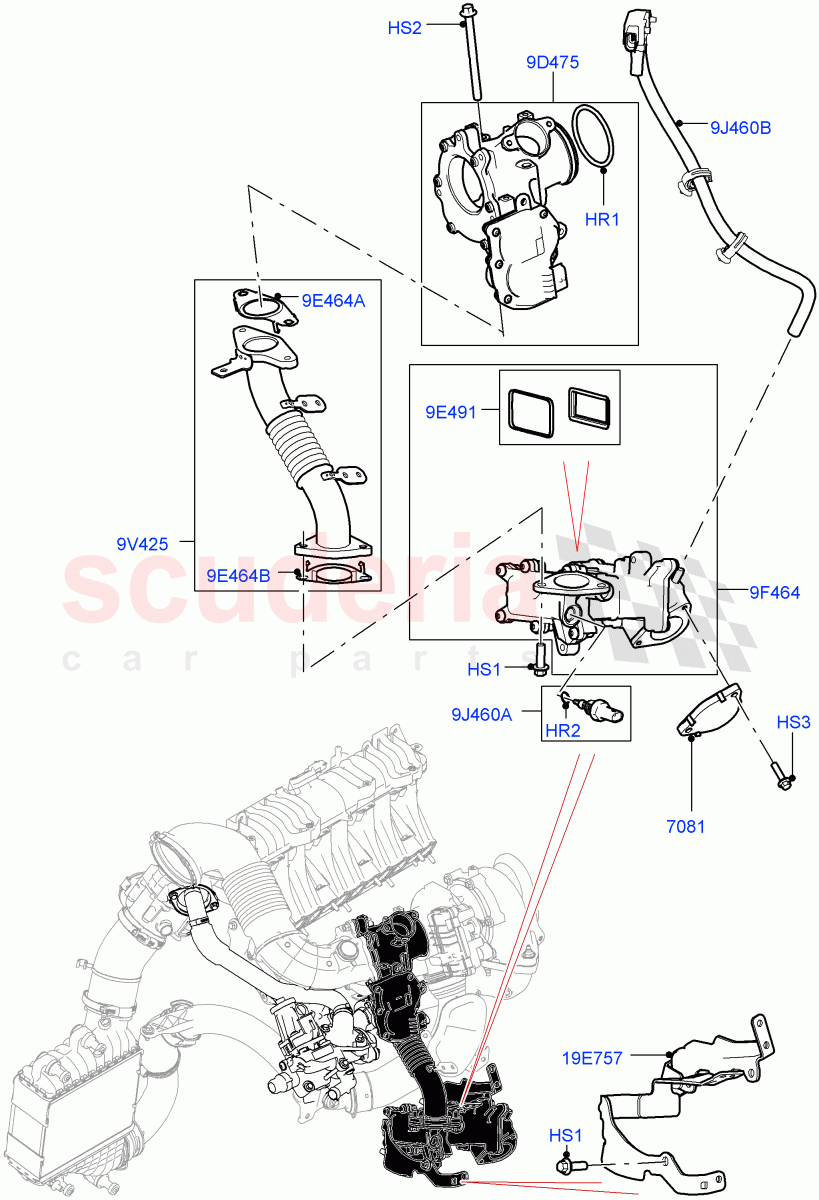

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR083962	O-RING	$5.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095785	O-RING	$5.13	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073724	SCREW	$2.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073738	SCREW	$3.88	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR071842	SCREW AND WASHER - HEX HEAD	$1.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123831	PLATE - BLANKING	$30.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087071	EGR VALVE - LOW PRESSURE	$346.88	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126126	FILTER - EGR COOLER	$24.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073730	COOLER - EGR	$437.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073733	TUBE - EXHAUST GAS RECIRCULATION	$91.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082666	BRACKET - SUPPORT	$36.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073734	GASKET - EGR COOLER	$10.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095555	GASKET - EGR OUTLET	$14.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075629	SENSOR - TEMPERATURE	$48.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR108955	SENSOR	$154.41	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR083962	O-RING	LR083962 O-RING 60MM / From: KH000001	$5.37	1
HR2	LR095785	O-RING IN STOCK	LR095785 O-RING 11.3 x 2.5MM, Sensor / From: KH000001 IN STOCK	$5.13	1
HS1	LR073724	SCREW	LR073724 SCREW EGR Cooler, M8 X 25MM / From: KH000001	$2.05	4
HS2	LR073738	SCREW IN STOCK	LR073738 SCREW M8 x 100MM / From: KH000001 IN STOCK	$3.88	2
HS3	LR071842	SCREW AND WASHER - HEX HEAD	LR071842 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 X 25MM / From: KH000001	$1.35	2
9D475	LR087071	EGR VALVE - LOW PRESSURE	LR087071 EGR VALVE - LOW PRESSURE From: KH000001	$346.88	1
9E464A	LR073734	GASKET - EGR COOLER	LR073734 GASKET - EGR COOLER EGR Cooler To EGR Valve / From: KH000001	$10.13	1
9E464B	LR095555	GASKET - EGR OUTLET	LR095555 GASKET - EGR OUTLET From: KH000001	$14.18	1
9E491	LR126126	FILTER - EGR COOLER	LR126126 FILTER - EGR COOLER Filter And Gasket Kit / From: KH000001	$24.92	1
9F464	LR073730	COOLER - EGR	LR073730 COOLER - EGR From: KH000001	$437.00	1
9J460A	LR075629	SENSOR - TEMPERATURE	LR075629 SENSOR - TEMPERATURE Temperature / From: KH000001	$48.12	1
9J460B	LR108955	SENSOR	LR108955 SENSOR Exhaust Gas Pressure, Sensor And Tube Assy / From: KH000001	$154.41	1
9V425	LR073733	TUBE - EXHAUST GAS RECIRCULATION	LR073733 TUBE - EXHAUST GAS RECIRCULATION EGR Cooler To EGR Valve / From: KH000001	$91.89	1
19E757	LR082666	BRACKET - SUPPORT	LR082666 BRACKET - SUPPORT From: KH000001	$36.09	1
7081	LR123831	PLATE - BLANKING	LR123831 PLATE - BLANKING From: KH000001	$30.47	1
