Name: Exhaust Gas Recirculation (Low Pressure EGR) (2.0L I4 DSL MID DOHC AJ200, Itatiaia (Brazil)) ((V) FROMGT000001)
Rating: 4.8 (1 reviews)

View All

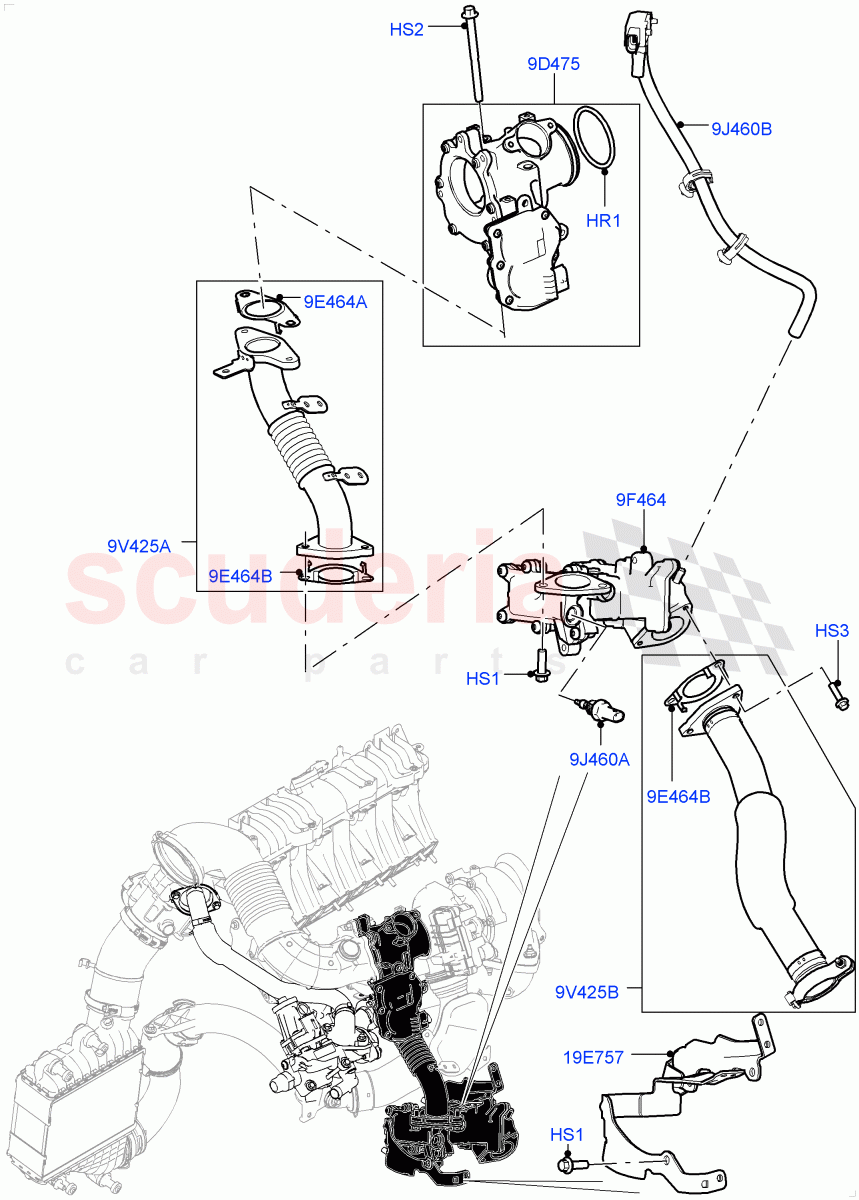

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR083962	O-RING	$5.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073724	SCREW	$2.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073738	SCREW	$3.87	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR071842	SCREW AND WASHER - HEX HEAD	$1.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077847	EGR VALVE - LOW PRESSURE	$586.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073730	COOLER - EGR	$436.58	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082666	BRACKET - SUPPORT	$36.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073734	GASKET - EGR COOLER	$10.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083961	GASKET - EGR INLET	$12.75	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075629	SENSOR - TEMPERATURE	$48.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083304	SENSOR - EXHAUST GAS PRESSURE	$181.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073733	TUBE - EXHAUST GAS RECIRCULATION	$91.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071830	TUBE - EGR COOLER	$181.12	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR083962	O-RING	LR083962 O-RING 60MM / From: GT000001	$5.36	1
HS1	LR073724	SCREW	LR073724 SCREW EGR Cooler, M8 X 25MM / From: GT000001	$2.05	4
HS2	LR073738	SCREW IN STOCK	LR073738 SCREW M8 x 100MM / From: GT000001 IN STOCK	$3.87	2
HS3	LR071842	SCREW AND WASHER - HEX HEAD	LR071842 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 X 25MM / From: GT000001	$1.34	2
9D475	LR077847	EGR VALVE - LOW PRESSURE	LR077847 EGR VALVE - LOW PRESSURE From: GT000001	$586.15	1
9E464A	LR073734	GASKET - EGR COOLER	LR073734 GASKET - EGR COOLER EGR Cooler To EGR Valve / From: GT000001	$10.13	1
9E464B	LR083961	GASKET - EGR INLET	LR083961 GASKET - EGR INLET From: GT000001	$12.75	1
9F464	LR073730	COOLER - EGR	LR073730 COOLER - EGR From: GT000001	$436.58	1
9J460A	LR075629	SENSOR - TEMPERATURE	LR075629 SENSOR - TEMPERATURE Temperature / From: GT000001	$48.07	1
9J460B	LR083304	SENSOR - EXHAUST GAS PRESSURE	LR083304 SENSOR - EXHAUST GAS PRESSURE Exhaust Gas Pressure / From: GT000001	$181.59	1
9V425A	LR073733	TUBE - EXHAUST GAS RECIRCULATION	LR073733 TUBE - EXHAUST GAS RECIRCULATION EGR Cooler To EGR Valve / From: GT000001	$91.81	1
9V425B	LR071830	TUBE - EGR COOLER	LR071830 TUBE - EGR COOLER EGR Cooler Inlet / From: GT000001	$181.12	1
19E757	LR082666	BRACKET - SUPPORT	LR082666 BRACKET - SUPPORT From: GT000001	$36.06	1

Exhaust Gas Recirculation (Low Pressure Egr) (2.0L I4 Dsl Mid Dohc Aj200, Itatiaia (Brazil)) ((V)...

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel]
