Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] - Exhaust Fluid Injection System (2.0L I4 DSL MID DOHC AJ200, With Diesel Exh Fluid Emission Tank,...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR038526 BOLT $1.41 To Order
Photo Part No Description Price (each) Stock
LR067041 SCREW $1.24 To Order
Photo Part No Description Price (each) Stock
AYG500030 BOLT $0.59 To Order
Photo Part No Description Price (each) Stock
LR071347 CLIP $3.68 To Order
Photo Part No Description Price (each) Stock
LR067042 CLAMP - TUBE $3.69 To Order
Photo Part No Description Price (each) Stock
FN106042 NUT $1.03 IN STOCK
Photo Part No Description Price (each) Stock
FY106046 NUT - HEX. $0.68 IN STOCK
Photo Part No Description Price (each) Stock
LR045542 NUT $1.37 To Order
Photo Part No Description Price (each) Stock
LR003643 NUT - SPECIAL $0.61 To Order
Photo Part No Description Price (each) Stock
LR085284 PAD - RUBBER $11.82 To Order
Photo Part No Description Price (each) Stock
LR073584 HARNESS - DIESEL EXHAUST FLUID SYS. $97.51 To Order
Photo Part No Description Price (each) Stock
LR071241 CONTROL UNIT - AUXILIARY HEATER $139.93 To Order
LR117592 CONTROL UNIT - AUXILIARY HEATER $152.44 To Order
Photo Part No Description Price (each) Stock
LR085287 KIT - FIXING PARTS $47.24 To Order
Photo Part No Description Price (each) Stock
LR072192 TANK&SHIELD - DIESEL EXHAUST FLUID $1,243.59 To Order
LR084676 TANK&SENDER - DIESEL EXHAUST FLUID $1,048.72 To Order
Photo Part No Description Price (each) Stock
LR071856 HOSE - TANK $350.79 To Order
LR078772 HOSE - TANK $393.17 To Order
LR084637 HOSE - TANK $282.48 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR166795 INJECTOR - DIESEL EXHAUST FLUID $271.48 To Order
LR166795 INJECTOR - DIESEL EXHAUST FLUID $271.48 To Order
Photo Part No Description Price (each) Stock
LR084743 PUMP - DIESEL EXHAUST FLUID $557.92 To Order
Photo Part No Description Price (each) Stock
LR083307 BRACKET - FUEL TUBE SUPPORT $43.85 To Order
Photo Part No Description Price (each) Stock
LR138592 kIT - INJECTOR REFIT $23.35 To Order
LR138592 kIT - INJECTOR REFIT $23.35 To Order
Photo Part No Description Price (each) Stock
LR074066 CAP - FILLER $12.75 To Order
Photo Part No Description Price (each) Stock
LR085282 TUBE - BREATHER $27.02 To Order
Photo Part No Description Price (each) Stock
LR071857 PIPE - TANK VENT $60.83 To Order
Photo Part No Description Price (each) Stock
LR071769 BRACKET - FILLER PIPE $34.23 To Order
Photo Part No Description Price (each) Stock
LR071761 BRACKET - FILLER PIPE $18.00 To Order
Photo Part No Description Price (each) Stock
LR078797 BRACKET - FILLER $8.53 To Order
View All

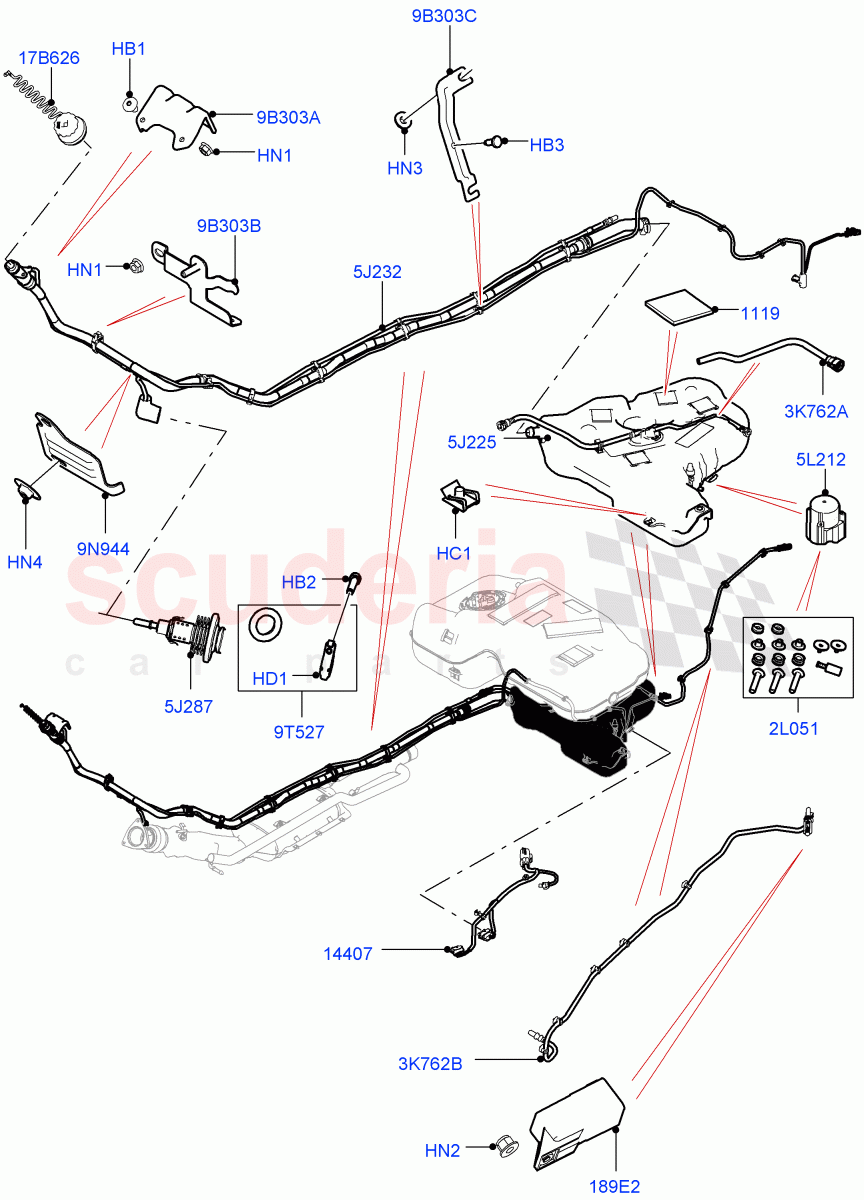

Exhaust Fluid Injection System (2.0L I4 DSL MID DOHC AJ200, With Diesel Exh Fluid Emission Tank, 2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMGH000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR038526
BOLT
M6 X 11MM / From: GH000001 		$1.41 2
HB2 LR067041
SCREW
M5 x 25 / From: GH000001 		$1.24 1
HB3 AYG500030
BOLT
M6 x 15 / From: GH000001 		$0.59 1
HC1 LR071347
CLIP
Additive Tank / From: GH000001 		$3.68 2
HD1 LR067042
CLAMP - TUBE 		$3.69 1
HN1 FN106042
NUT
Hexagonal Head, M6 / From: GH000001
IN STOCK 		$1.03 3
HN2 FY106046
NUT - HEX.
Hexagonal Head, M6 / From: GH000001
IN STOCK 		$0.68 2
HN3 LR045542
NUT
M6, Nut And Washer / From: GH000001 		$1.37 2
HN4 LR003643
NUT - SPECIAL
Heat Shield, M5 / From: GH000001 		$0.61 1
2L051 LR085287
KIT - FIXING PARTS
From: GH000001 		$47.24 1
3K762A LR085282
TUBE - BREATHER
From: GH000001 		$27.02 1
3K762B LR071857
PIPE - TANK VENT
From: GH000001 		$60.83 1
5J225 LR072192
TANK&SHIELD - DIESEL EXHAUST FLUID
From: GH000001 / To: GH589580 		$1,243.59 1
5J225 LR084676
TANK&SENDER - DIESEL EXHAUST FLUID
From: GH589581 		$1,048.72 1
5J232 LR071856
HOSE - TANK
From: GH000001 / To: GH546343 		$350.79 1
5J232 LR078772
HOSE - TANK
From: GH546344 / To: GH606908 		$393.17 1
5J232 LR084637
HOSE - TANK
From: GH606909 / To: JH728760 		$282.48 1
5J232 LR108933
HOSE - TANK
From: JH728761 		$313.30 1
5J287 LR166795
INJECTOR - DIESEL EXHAUST FLUID
From: GH000001 / To: KH823247 		$271.48 1
5J287 LR166795
INJECTOR - DIESEL EXHAUST FLUID
From: KH823248 		$271.48 1
5L212 LR084743
PUMP - DIESEL EXHAUST FLUID
Kit Includes Fitting Parts, Service Kit / From: GH000001 		$557.92 1
9B303A LR071769
BRACKET - FILLER PIPE
From: GH000001 		$34.23 1
9B303B LR071761
BRACKET - FILLER PIPE
From: GH000001 		$18.00 1
9B303C LR078797
BRACKET - FILLER
From: GH000001 		$8.53 1
9N944 LR083307
BRACKET - FUEL TUBE SUPPORT
Heat Shield / From: GH000001 		$43.85 1
9T527 LR138592
kIT - INJECTOR REFIT
Diesel Exhaust Fluid / From: GH000001 / To: KH823247 		$23.35 1
9T527 LR138592
kIT - INJECTOR REFIT
Diesel Exhaust Fluid / From: KH823248 		$23.35 1
17B626 LR074066
CAP - FILLER
From: GH000001 		$12.75 1
189E2 LR071241
CONTROL UNIT - AUXILIARY HEATER
Diesel Exhaust Fluid / From: GH000001 / To: JH769163 		$139.93 1
189E2 LR117592
CONTROL UNIT - AUXILIARY HEATER
Diesel Exhaust Fluid / From: JH769164 		$152.44 1
1119 LR085284
PAD - RUBBER
From: GH000001 		$11.82 4
14407 LR073584
HARNESS - DIESEL EXHAUST FLUID SYS.
From: GH000001 		$97.51 1
