Name: Exhaust Gas Recirculation (Low Pressure EGR) (2.0L AJ20D4 Diesel LF PTA, DPF + DE-SOX, Halewood (UK), EU6D Diesel + DPF Emissions, 2.0L AJ20D4 Diesel Mid PTA, Proconve L6 Emissions, Stage V Plus DPF, Japanese Emission + DPF, Bharat VI Emission)
Rating: 5.0 (1 reviews)

Exhaust Gas Recirculation (Low Pressure EGR) (2.0L AJ20D4 Diesel LF PTA, DPF + DE-SOX, Halewood (UK), EU6D Diesel + DPF Emissions, 2.0L AJ20D4 Diesel Mid PTA, Proconve L6 Emissions, Stage V Plus DPF, Japanese Emission + DPF, Bharat VI Emission) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] - Exhaust Gas Recirculation (Low Pressure EGR) (2.0L AJ20D4 Diesel LF PTA, DPF + DE-SOX, Halewood...

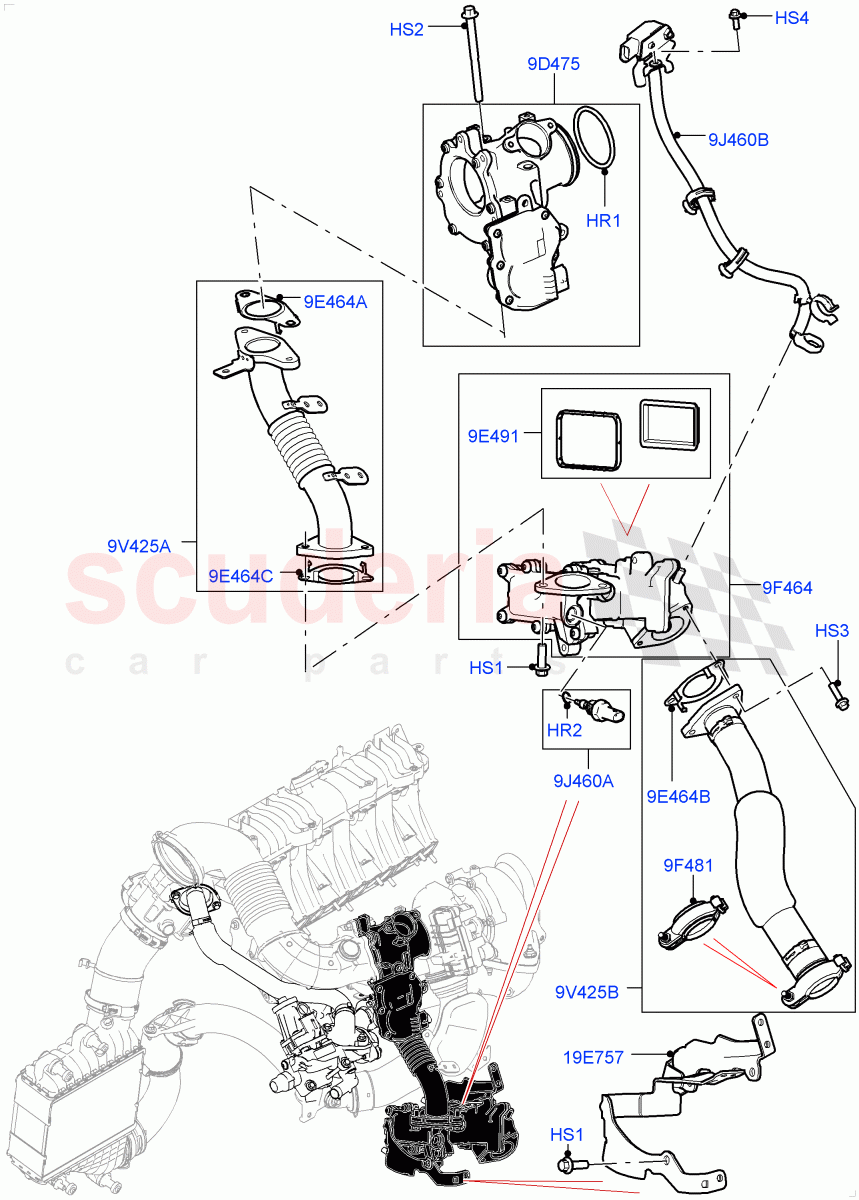

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR083962	O-RING	$5.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095785	O-RING	$5.13	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073724	SCREW	$2.05	To Order
	LR073724	SCREW	$2.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073738	SCREW	$3.88	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR071842	SCREW AND WASHER - HEX HEAD	$1.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073686	SCREW	$2.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087071	EGR VALVE - LOW PRESSURE	$347.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126126	FILTER - EGR COOLER	$24.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073730	COOLER - EGR	$437.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR168738	JOINT	$89.98	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR082666	BRACKET - SUPPORT	$36.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073734	GASKET - EGR COOLER	$10.14	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083961	GASKET - EGR INLET	$12.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095555	GASKET - EGR OUTLET	$14.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075629	SENSOR - TEMPERATURE	$48.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR108955	SENSOR	$154.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073733	TUBE - EXHAUST GAS RECIRCULATION	$91.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR097976	TUBE - EGR COOLER	$170.29	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR083962	O-RING	LR083962 O-RING 60MM / From: LH000001	$5.37	1
HR2	LR095785	O-RING IN STOCK	LR095785 O-RING 11.3 x 2.5MM, Sensor / From: LH000001 IN STOCK	$5.13	1
HS1	LR073724	SCREW	LR073724 SCREW EGR Cooler, M8 X 25MM / From: LH000001	$2.05	5
HS1	LR073724	SCREW	LR073724 SCREW Bracket, M8 X 25MM / From: LH000001	$2.05	3
HS2	LR073738	SCREW IN STOCK	LR073738 SCREW M8 x 100MM / From: LH000001 IN STOCK	$3.88	2
HS3	LR071842	SCREW AND WASHER - HEX HEAD	LR071842 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 X 25MM / From: LH000001	$1.35	2
HS4	LR073686	SCREW	LR073686 SCREW M6 X 16MM / From: LH000001	$2.49	1
9D475	LR087071	EGR VALVE - LOW PRESSURE	LR087071 EGR VALVE - LOW PRESSURE From: LH000001	$347.00	1
9E464A	LR073734	GASKET - EGR COOLER	LR073734 GASKET - EGR COOLER EGR Cooler To EGR Valve / From: LH000001	$10.14	1
9E464B	LR083961	GASKET - EGR INLET	LR083961 GASKET - EGR INLET EGR Cooler Inlet / From: LH000001	$12.76	1
9E464C	LR095555	GASKET - EGR OUTLET	LR095555 GASKET - EGR OUTLET EGR Cooler Outlet / From: LH000001	$14.19	1
9E491	LR126126	FILTER - EGR COOLER	LR126126 FILTER - EGR COOLER Filter And Gasket Kit / From: LH000001	$24.93	1
9F464	LR073730	COOLER - EGR	LR073730 COOLER - EGR From: LH000001	$437.16	1
9F481	LR168738	JOINT IN STOCK	LR168738 JOINT Joint / From: LH000001 IN STOCK	$89.98	1
9J460A	LR075629	SENSOR - TEMPERATURE	LR075629 SENSOR - TEMPERATURE Temperature / From: LH000001	$48.13	1
9J460B	LR108955	SENSOR	LR108955 SENSOR Exhaust Gas Pressure, Sensor And Tube Assy / From: LH000001	$154.46	1
9V425A	LR073733	TUBE - EXHAUST GAS RECIRCULATION	LR073733 TUBE - EXHAUST GAS RECIRCULATION EGR Cooler To EGR Valve / From: LH000001	$91.93	1
9V425B	LR097976	TUBE - EGR COOLER	LR097976 TUBE - EGR COOLER EGR Cooler Inlet / From: LH000001	$170.29	1
19E757	LR082666	BRACKET - SUPPORT	LR082666 BRACKET - SUPPORT From: LH000001	$36.10	1
