Tow Bar ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol] - Tow Bar ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
BTR2710 BOLT $3.62 IN STOCK
Photo Part No Description Price (each) Stock
SE105168L SCREW $1.15 To Order
SE105168L SCREW $1.15 To Order
Photo Part No Description Price (each) Stock
SE105358 SCREW $1.22 To Order
Photo Part No Description Price (each) Stock
VPLWY0084 PLUG - TRAILER HITCH $40.22 To Order
Photo Part No Description Price (each) Stock
VPLAY0060 Kit - Tow Bracket $429.30 To Order
Photo Part No Description Price (each) Stock
KNG500013 CAP - PROTECTIVE $6.26 To Order
Photo Part No Description Price (each) Stock
VSA500060 ADAPTOR - SCKT 13 TERM/PLUG 7 TERM $2.09 To Order
Photo Part No Description Price (each) Stock
VSA500110 ADAPTOR - SCKT 13 TERM/PLUG 7 TERM $18.55 To Order
Photo Part No Description Price (each) Stock
KNB500070 HOOK - TOWING - REAR $750.12 To Order
LR040247 HOOK - TOWING - REAR $714.10 To Order
LR071295 HOOK - TOWING - REAR $714.10 To Order
Photo Part No Description Price (each) Stock
LR040248 HOOK - TOWING - REAR $524.96 To Order
LR040248 HOOK - TOWING - REAR $524.96 To Order
Photo Part No Description Price (each) Stock
KNW500020 RETAINER $50.28 To Order
Photo Part No Description Price (each) Stock
VVO500020 RETAINER $120.93 To Order
View All

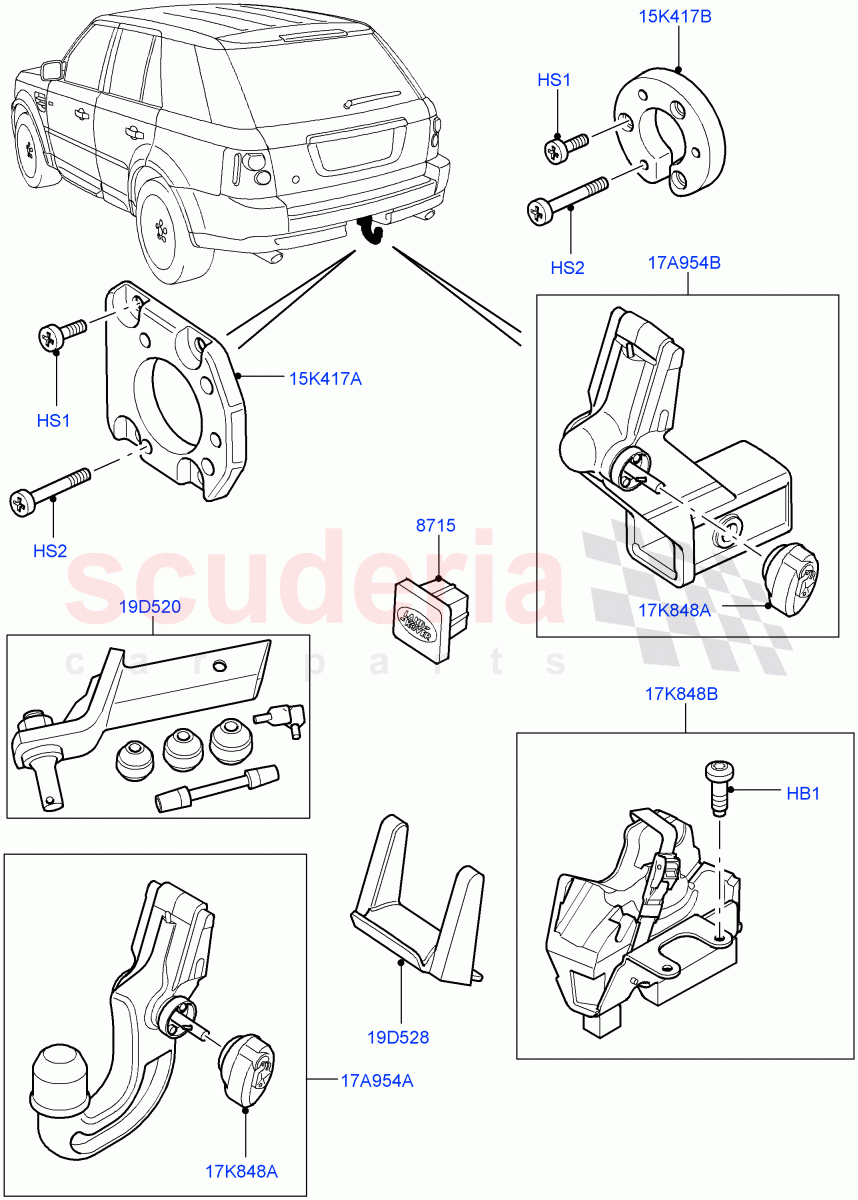

Tow Bar ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 BTR2710
BOLT
M10 X 1.5, Torx / From: AA000001
IN STOCK 		$3.62 2
HS1 SE105168L
SCREW
With 12N 7 PIN Elec Socket/Harness / M5 X 16MM / From: AA000001 		$1.15 4
HS1 SE105168L
SCREW
With 13 PIN Elec Socket And Harness / M5 X 16MM / From: AA000001 		$1.15 3
HS2 SE105358
SCREW
M5 x 35MM / From: AA000001 		$1.22 3
15K417A VSA500060
ADAPTOR - SCKT 13 TERM/PLUG 7 TERM
With 12N 7 PIN Elec Socket/Harness / From: AA000001 		$2.09 1
15K417B VSA500110
ADAPTOR - SCKT 13 TERM/PLUG 7 TERM
Tow Hitch Fixed Height Swan Neck, With 13 PIN Elec Socket And Harness / From: AA000001 		$18.55 1
17A954A KNB500070
HOOK - TOWING - REAR
(-)"CDN/USA", Tow Hitch Fixed Height Swan Neck / From: AA000001 / To: CA754770 		$750.12 1
17A954A LR040247
HOOK - TOWING - REAR
(-)"CDN/USA", Tow Hitch Fixed Height Swan Neck / From: CA754771 / To: CA954719 		$714.10 1
17A954A LR071295
HOOK - TOWING - REAR
(-)"CDN/USA", Tow Hitch Fixed Height Swan Neck / From: CA954720 		$714.10 1
17A954B LR040248
HOOK - TOWING - REAR
(+)"CDN/USA", Tow Hitch Receiver NAS / From: AA000001 / To: DA760366 		$524.96 1
17A954B LR040248
HOOK - TOWING - REAR
Tow Hitch Receiver NAS / From: DA760367 		$524.96 1
17K848A KNW500020
RETAINER
Handle, Key Only Supplied With Handle Assy, Lockable / From: AA000001 		$50.28 1
17K848B VVO500020
RETAINER
With Fixing Parts / From: AA000001 		$120.93 1
19D520 VPLAY0060
Kit - Tow Bracket
(+)"CDN/USA" / Procured Locally / From: AA000001 		$429.30 1
19D528 KNG500013
CAP - PROTECTIVE
From: AA000001 		$6.26 1
8715 VPLWY0084
PLUG - TRAILER HITCH
(+)"CDN/USA" / Land Rover Logo / From: AA000001 		$40.22 1
