Name: Floor Pan - Centre And Rear ((V) FROMAA000001)
Rating: 4.9 (1 reviews)

View All

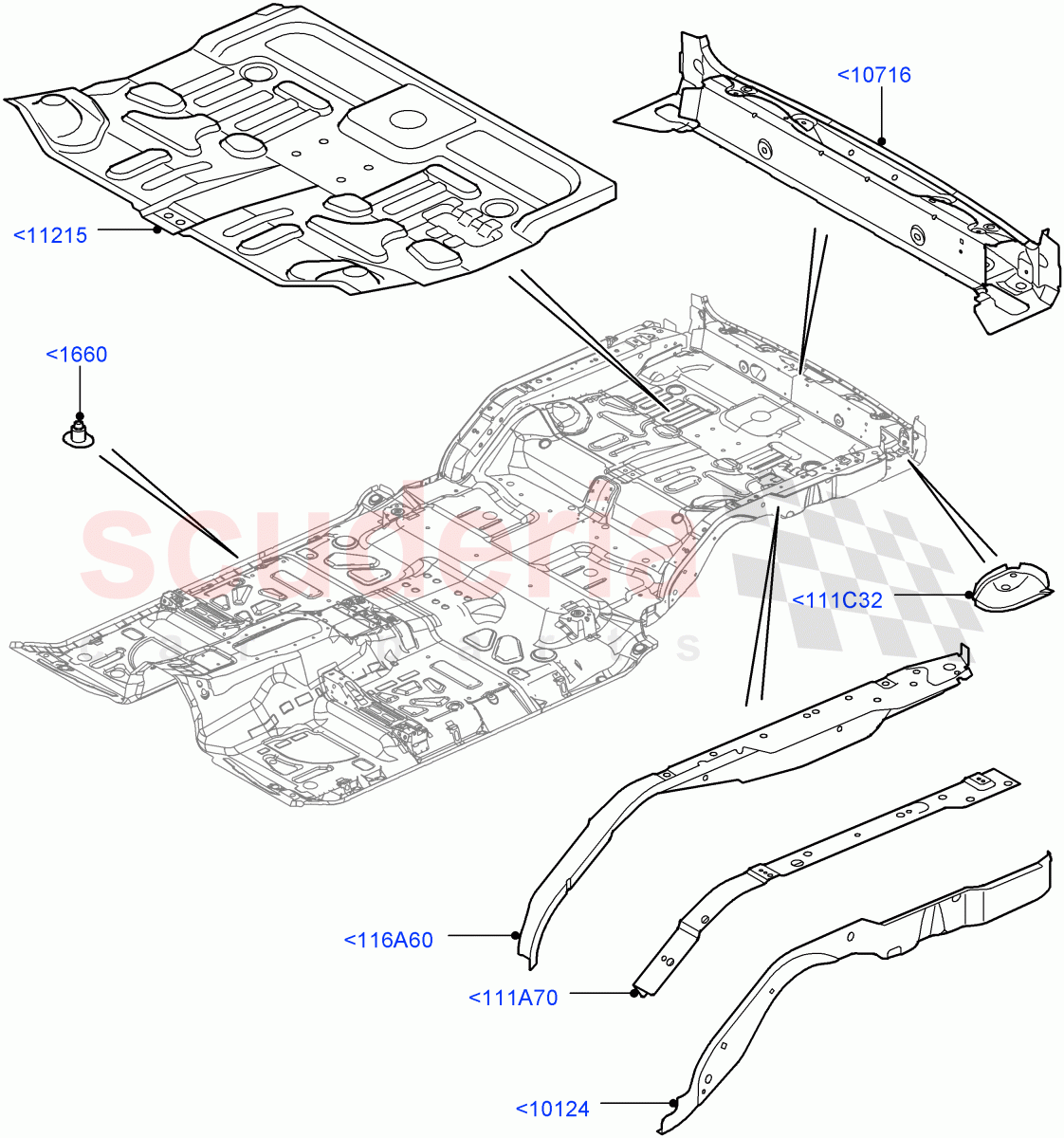

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AFS780031	SPACER	$6.88	To Order

Photo	Part No	Description	Price (each)	Stock
	AQA790100	CROSSMEMBER	$823.11	To Order

Photo	Part No	Description	Price (each)	Stock
	AFD780011	PAN - FLOOR - REAR	$161.24	To Order

Photo	Part No	Description	Price (each)	Stock
	AFR780040	REINFORCEMENT - REAR FLOOR PAN	$7.69	To Order
	AFR780050	REINFORCEMENT - REAR FLOOR PAN	$8.58	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<111A70	AFR780502	REINFORCEMENT - FLOOR PAN	AFR780502 REINFORCEMENT - FLOOR PAN RH / From: AA000001	$66.12	1
<111A70	AFR780512	REINFORCEMENT - FLOOR PAN	AFR780512 REINFORCEMENT - FLOOR PAN LH / From: AA000001	$66.12	1
<111C32	AFR780040	REINFORCEMENT - REAR FLOOR PAN	AFR780040 REINFORCEMENT - REAR FLOOR PAN RH / From: AA000001	$7.69	1
<111C32	AFR780050	REINFORCEMENT - REAR FLOOR PAN	AFR780050 REINFORCEMENT - REAR FLOOR PAN LH / From: AA000001	$8.58	1
<116A60	AFD780080	PAN - FLOOR SIDE	AFD780080 PAN - FLOOR SIDE RH / From: AA000001	$40.25	1
<116A60	AFD780090	PAN - FLOOR SIDE	AFD780090 PAN - FLOOR SIDE LH / From: AA000001	$40.66	1
<1660	AFS780031	SPACER	AFS780031 SPACER M12 / From: AA000001	$6.88	2
<10124	AGA780021	MEMBER - FLOOR CROSS - REAR	AGA780021 MEMBER - FLOOR CROSS - REAR RH / From: AA000001	$96.81	1
<10124	AGA780031	MEMBER - FLOOR CROSS - REAR	AGA780031 MEMBER - FLOOR CROSS - REAR LH / From: AA000001	$92.59	1
<10716	AQA790100	CROSSMEMBER	AQA790100 CROSSMEMBER Lower Rear / From: AA000001	$823.11	1
<11215	AFD780011	PAN - FLOOR - REAR	AFD780011 PAN - FLOOR - REAR From: AA000001	$161.24	1

Floor Pan - Centre And Rear ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol]
