Name: Side Panels - Outer ((V) FROMAA000001)
Rating: 4.6 (1 reviews)

View All

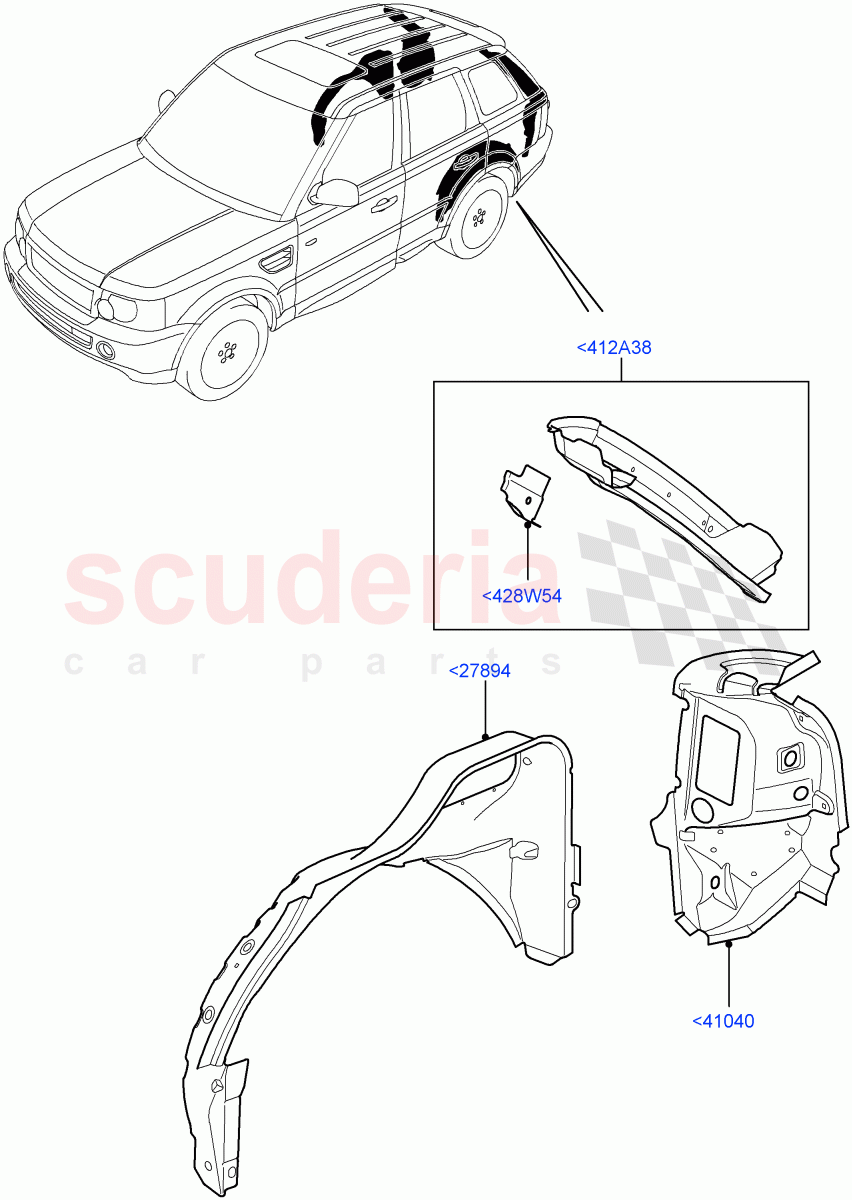

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

...and 1 more part variants. See table on right for more details.

...and 1 more part variants. See table on right for more details.

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<412A38	AMA790040	PANEL - "D" PILLAR - OUTER	AMA790040 PANEL - "D" PILLAR - OUTER RH / From: AA000001 / To: BA999999	$82.02	1
<412A38	AMA790050	PANEL - "D" PILLAR - OUTER	AMA790050 PANEL - "D" PILLAR - OUTER LH / From: AA000001 / To: BA999999	$82.02	1
<412A38	LR030803	PANEL - "D" PILLAR WATER DRAIN	LR030803 PANEL - "D" PILLAR WATER DRAIN LH / From: CA000001	$28.28	1
<412A38	LR030802	PANEL - "D" PILLAR WATER DRAIN	LR030802 PANEL - "D" PILLAR WATER DRAIN RH / From: CA000001	$28.28	1
<428W54	ALR790921	REINFORCEMENT	ALR790921 REINFORCEMENT RH / From: AA000001 / To: BA999999	$4.02	1
<428W54	ALR790931	REINFORCEMENT	ALR790931 REINFORCEMENT LH / From: AA000001 / To: BA999999	$3.98	1
<428W54	LR030024	REINFORCEMENT - PILLAR TRIM	LR030024 REINFORCEMENT - PILLAR TRIM RH / From: CA000001	$30.26	1
<428W54	LR030026	REINFORCEMENT - PILLAR TRIM	LR030026 REINFORCEMENT - PILLAR TRIM LH / From: CA000001	$30.26	1
<27894	ALK790120	PANEL - WHEELHOUSE - OUTER	ALK790120 PANEL - WHEELHOUSE - OUTER RH, Rear / From: AA000001	$592.41	1
<27894	ALK790130	PANEL - WHEELHOUSE - OUTER	ALK790130 PANEL - WHEELHOUSE - OUTER LH, Rear / From: AA000001	$592.41	1
<41040	AME790263	PILLAR - REAR	AME790263 PILLAR - REAR RH, Middle / From: AA000001	$402.21	1
<41040	AME790273	PILLAR - REAR	AME790273 PILLAR - REAR LH, Middle / From: AA000001	$394.79	1

Side Panels - Outer ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol]
