Hood And Related Parts ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol] - Hood And Related Parts ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
WYC100880 CLIP $1.36 To Order
Photo Part No Description Price (each) Stock
ADU7048 NUT - FLANGED $13.36 To Order
Photo Part No Description Price (each) Stock
RYP501010 SCREW $0.65 To Order
Photo Part No Description Price (each) Stock
EHV500021 SCREW $1.04 To Order
Photo Part No Description Price (each) Stock
AYP500190 SCREW $1.17 To Order
Photo Part No Description Price (each) Stock
KYG500380 SCREW AND WASHER - HEX HEAD $0.36 IN STOCK
Photo Part No Description Price (each) Stock
DYF500280 SPACER - HOOD LATCH $4.30 To Order
Photo Part No Description Price (each) Stock
BKA790050 HOOD $2,484.88 To Order
Photo Part No Description Price (each) Stock
FPS500020 LATCH - HOOD $57.79 To Order
LR125366 LATCH - HOOD $43.94 To Order
Photo Part No Description Price (each) Stock
CJM500010 BUMPER - BONNET $1.15 To Order
LR023025 BUMPER - BONNET $5.74 To Order
Photo Part No Description Price (each) Stock
LR018696 HINGE - HOOD $62.69 To Order
LR018697 HINGE - HOOD $62.69 To Order
LR040747 HINGE - HOOD $117.90 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
FPD500050 CATCH - SAFETY $40.39 To Order
Photo Part No Description Price (each) Stock
LR013914 BRACKET $4.89 To Order
Photo Part No Description Price (each) Stock
BKY760011 GUIDE $6.77 To Order
Photo Part No Description Price (each) Stock
LR012868 RETAINER - WEATHERSTRIP $1.25 To Order
Photo Part No Description Price (each) Stock
LR013889 CABLE - HOOD CONTROL $30.83 To Order
Photo Part No Description Price (each) Stock
LR013888 CABLE - HOOD CONTROL $27.99 To Order
Photo Part No Description Price (each) Stock
FSC500010PVJ LEVER - BONNET RELEASE $11.41 To Order
LR050752 LEVER - BONNET RELEASE $12.09 To Order
Photo Part No Description Price (each) Stock
LR054366 SEAL - HOOD $132.61 To Order
Photo Part No Description Price (each) Stock
LR009106 LIFT - GAS $42.28 To Order
Photo Part No Description Price (each) Stock
BKF780030 PIVOT $2.90 IN STOCK
View All

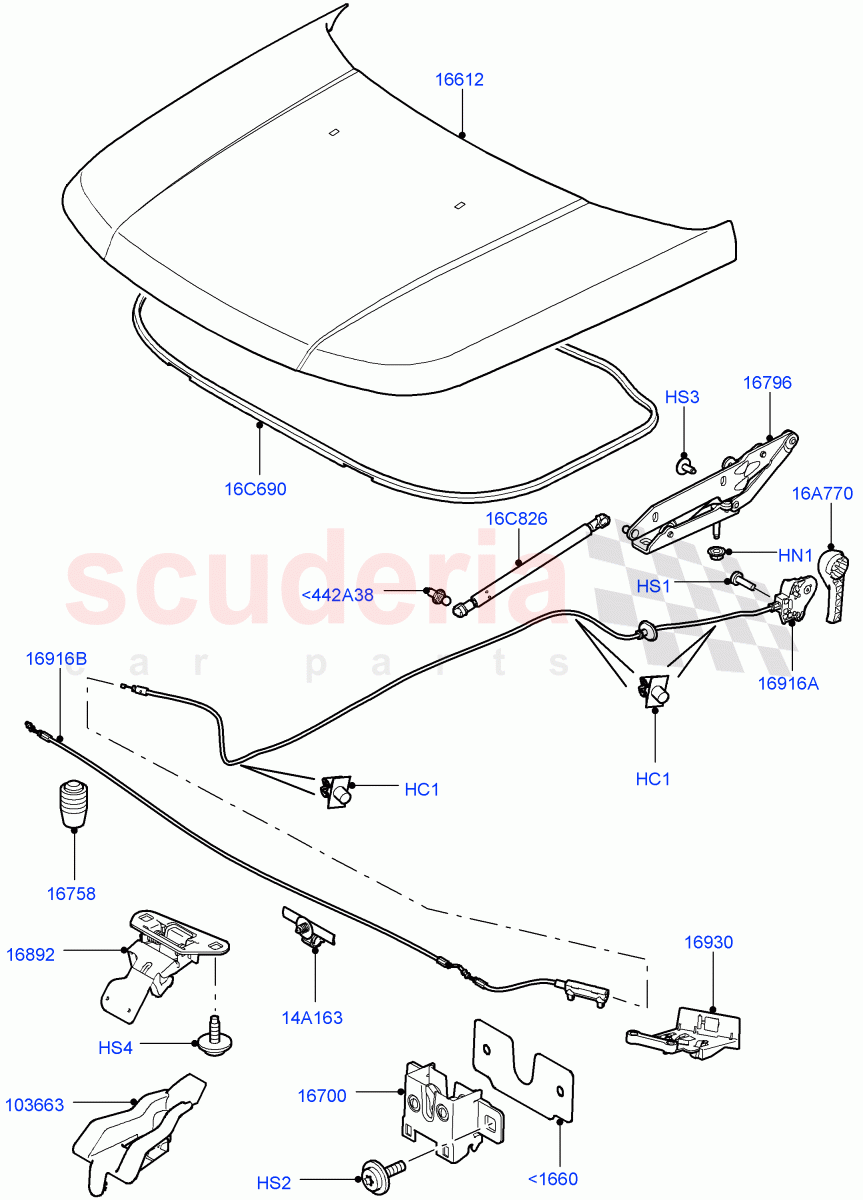

Hood And Related Parts ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<442A38 BKF780030
PIVOT
Lift Assy Gas / From: AA000001
IN STOCK 		$2.90 2
<1660 DYF500280
SPACER - HOOD LATCH
Aluminium, Hood Latch / From: AA000001 		$4.30 2
HC1 WYC100880
CLIP
Cable Assy / From: AA000001 		$1.36 2
HN1 ADU7048
NUT - FLANGED
Hinge, M8 / From: AA000001 		$13.36 4
HS1 RYP501010
SCREW
"A" Pillar, M6 X 20MM, Torx / From: AA000001 		$0.65 1
HS2 EHV500021
SCREW
Hood Latch / From: AA000001 		$1.04 4
HS3 AYP500190
SCREW
Hinge, M8X25 / From: AA000001 		$1.17 4
HS4 KYG500380
SCREW AND WASHER - HEX HEAD
Hexagonal Head, M6 X 13.5MM, Safety Latch / From: AA000001
IN STOCK 		$0.36 2
14A163 LR012868
RETAINER - WEATHERSTRIP
Cable Assy, Mounting Bracket / From: AA000001 		$1.25 1
16A770 FSC500010PVJ
LEVER - BONNET RELEASE
From: AA000001 / To: DA810668 		$11.41 1
16A770 LR050752
LEVER - BONNET RELEASE
From: DA810669 		$12.09 1
16C690 LR054366
SEAL - HOOD
Hood Assy / From: AA000001 		$132.61 1
16C826 LR009106
LIFT - GAS
From: AA000001 		$42.28 2
16612 BKA790050
HOOD
From: AA000001 		$2,484.88 1
16700 FPS500020
LATCH - HOOD
Less Sensor, RH/LH, Switch - Body Electric 1901/20A Included Latch / From: AA000001 		$57.79 2
16700 LR125366
LATCH - HOOD
RH/LH, With Sensor / From: AA000001 		$43.94 2
16758 CJM500010
BUMPER - BONNET
From: AA000001 / To: CA728722 		$1.15 2
16758 LR023025
BUMPER - BONNET
From: CA728723 		$5.74 2
16796 LR018696
HINGE - HOOD
RH / From: AA000001 / To: CA759361 		$62.69 1
16796 LR018697
HINGE - HOOD
LH / From: AA000001 / To: CA759361 		$62.69 1
16796 LR040747
HINGE - HOOD
RH / From: CA759362 		$117.90 1
16796 LR040748
HINGE - HOOD
LH / From: CA759362 		$117.90 1
16892 FPD500050
CATCH - SAFETY
From: AA000001 		$40.39 1
16916A LR013889
CABLE - HOOD CONTROL
From: AA000001 		$30.83 1
16916B LR013888
CABLE - HOOD CONTROL
From: AA000001 		$27.99 1
16930 LR013914
BRACKET
From: AA000001 		$4.89 1
103663 BKY760011
GUIDE
Safety Latch / From: AA000001 		$6.77 1
