Name: Fuel Tank Filler Door And Controls ((V) FROMAA000001)
Rating: 5.0 (1 reviews)

View All

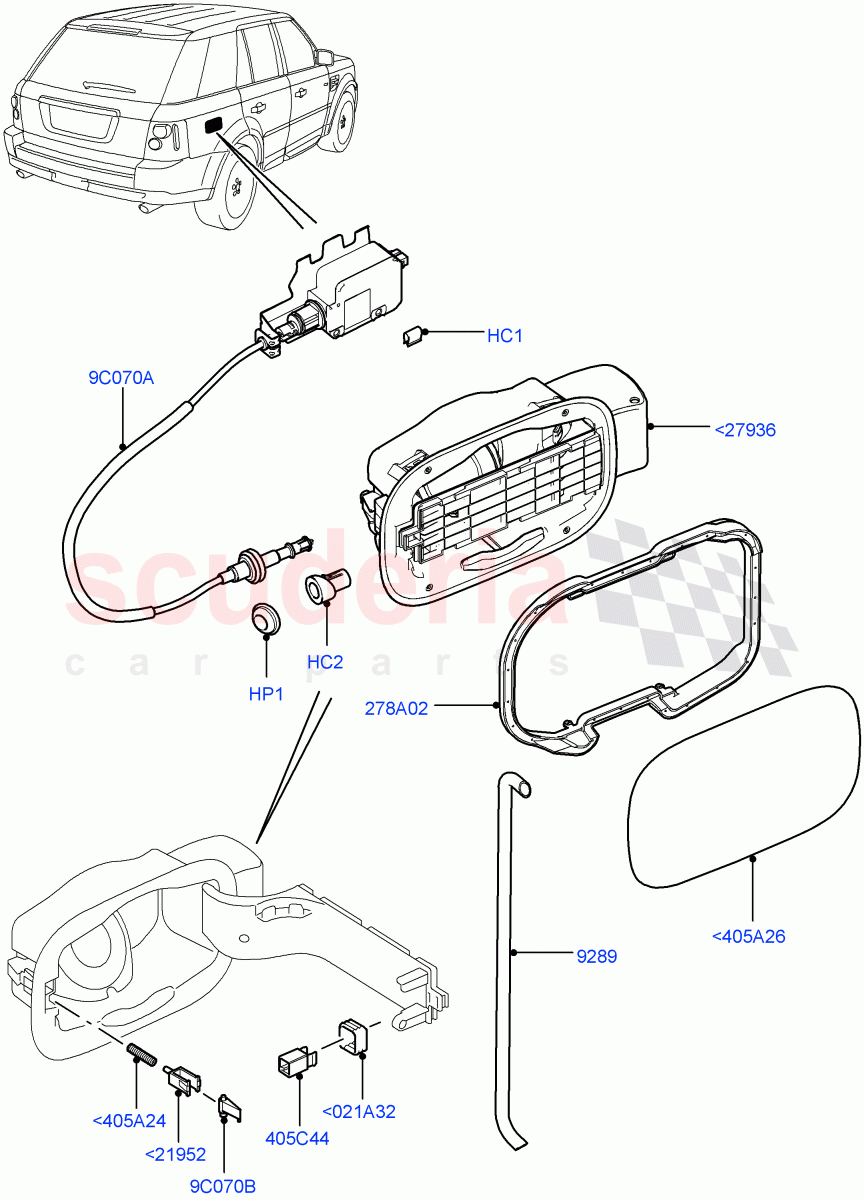

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	IPN500030	CLIP	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019152	CLIP	$2.89	To Order

Photo	Part No	Description	Price (each)	Stock
	ALR5073	PLUG - BLANKING	$1.03	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	BZX500010	TUBE	$6.16	To Order

Photo	Part No	Description	Price (each)	Stock
	BPA780110	RETAINER - LATCH	$3.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014044	HOUSING - FUEL TANK FILLER PIPE	$97.11	To Order

Photo	Part No	Description	Price (each)	Stock
	ARY780040	GASKET	$10.07	To Order

Photo	Part No	Description	Price (each)	Stock
	ARV780020	BEZEL	$3.95	To Order

Photo	Part No	Description	Price (each)	Stock
	FSG500030	ACTUATOR	$114.37	To Order

Photo	Part No	Description	Price (each)	Stock
	BPA780101	ACTUATOR	$3.85	To Order

Photo	Part No	Description	Price (each)	Stock
	CAL500070	SEAL	$5.60	To Order

Photo	Part No	Description	Price (each)	Stock
	BPA780120	SPRING	$2.60	To Order

Photo	Part No	Description	Price (each)	Stock
	BPA790040	DOOR - FUEL TANK FILLER ACCESS	$29.07	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<021A32	CAL500070	SEAL	CAL500070 SEAL From: AA000001	$5.60	1
<405A24	BPA780120	SPRING	BPA780120 SPRING From: AA000001	$2.60	1
<405A26	BPA790040	DOOR - FUEL TANK FILLER ACCESS	BPA790040 DOOR - FUEL TANK FILLER ACCESS From: AA000001	$29.07	1
<21952	BPA780110	RETAINER - LATCH	BPA780110 RETAINER - LATCH From: AA000001	$3.85	1
<27936	LR014044	HOUSING - FUEL TANK FILLER PIPE	LR014044 HOUSING - FUEL TANK FILLER PIPE From: AA000001	$97.11	1
HC1	IPN500030	CLIP	IPN500030 CLIP Fuel Tank Flap - Locking / Actuator / From: AA000001	$0.47	1
HC2	LR019152	CLIP	LR019152 CLIP Fuel Tank Flap - Locking / Actuator / From: AA000001	$2.89	1
HP1	ALR5073	PLUG - BLANKING IN STOCK	ALR5073 PLUG - BLANKING Fuel Tank Flap - Non Locking / On Body / From: AA000001 IN STOCK	$1.03	1
9C070A	FSG500030	ACTUATOR	FSG500030 ACTUATOR Fuel Tank Flap - Locking / From: AA000001	$114.37	1
9C070B	BPA780101	ACTUATOR	BPA780101 ACTUATOR From: AA000001	$3.85	1
278A02	ARY780040	GASKET	ARY780040 GASKET From: AA000001	$10.07	1
405C44	ARV780020	BEZEL	ARV780020 BEZEL From: AA000001	$3.95	1
9289	BZX500010	TUBE	BZX500010 TUBE From: AA000001	$6.16	1

Fuel Tank Filler Door And Controls ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol]
