Name: Vacuum Control And Air Injection (Engine Vacuum Harness, Solihull Plant Build) (3.0 V6 Diesel) ((V) FROMAA000001)
Rating: 5.0 (1 reviews)

Vacuum Control And Air Injection (Engine Vacuum Harness, Solihull Plant Build) (3.0 V6 Diesel) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] - Vacuum Control And Air Injection (Engine Vacuum Harness, Solihull Plant Build) (3.0 V6 Diesel) ((V)...

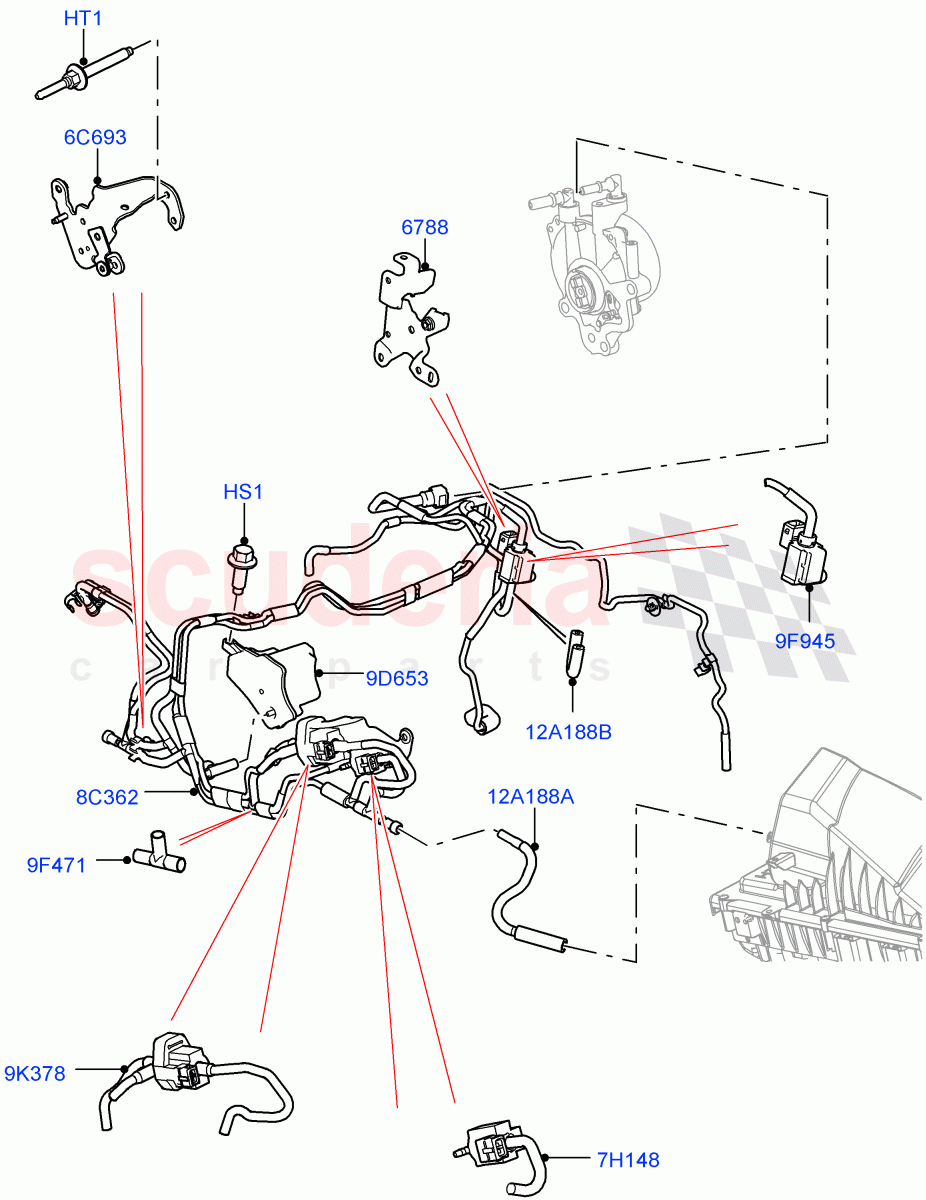

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4364422	SCREW	$1.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR009320	STUD	$2.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015439	BRACKET - HOSE	$30.74	To Order
	LR073587	BRACKET - HOSE	$30.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR042666	BRACKET - AIR DUCT SUPPORT	$39.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR116598	SOLENOID - CSOV	$289.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041270	HOSE - VACUUM CONTROL HARNESS	$351.62	To Order
	LR061348	HOSE - VACUUM CONTROL HARNESS	$533.05	To Order
	LR063126	HOSE - VACUUM CONTROL HARNESS	$165.84	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR013570	RESERVOIR - VACUUM	$40.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR029415	CONNECTOR - 3-WAY	$16.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR116599	SOLENOID - EGR	$254.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR076235	SOLENOID - TURBO CONTROL	$233.82	To Order
	LR076235	SOLENOID - TURBO CONTROL	$233.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037779	HOSE - VACUUM	$46.53	To Order
	LR071242	HOSE - VACUUM	$26.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075844	HOSE - VACUUM	$27.36	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	4364422	SCREW	4364422 SCREW M6 X 16MM, Reservoir	$1.36	1
HT1	LR009320	STUD	LR009320 STUD Bracket, M6 X 39 / 4.5 X 24.5	$2.27	3
6C693	LR042666	BRACKET - AIR DUCT SUPPORT	LR042666 BRACKET - AIR DUCT SUPPORT Vacuum Control Harness	$39.99	1
7H148	LR116598	SOLENOID - CSOV	LR116598 SOLENOID - CSOV From: JA000001	$289.50	1
8C362	LR041270	HOSE - VACUUM CONTROL HARNESS	LR041270 HOSE - VACUUM CONTROL HARNESS 3.0L 24V V6 Turbo Diesel Std Flow / Includes Valves, Vacuum Control Harness / To: EA308270	$351.62	1
8C362	LR061348	HOSE - VACUUM CONTROL HARNESS	LR061348 HOSE - VACUUM CONTROL HARNESS 3.0L 24V DOHC V6 TC Diesel / Includes Valves, Vacuum Control Harness / From: EA308271 / To: FA512614	$533.05	1
8C362	LR063126	HOSE - VACUUM CONTROL HARNESS	LR063126 HOSE - VACUUM CONTROL HARNESS 3.0 V6 D Gen2 Mono Turbo / Includes Valves, Vacuum Control Harness / From: FA000001 / To: FA516687	$165.84	1
8C362	LR063124	HOSE - VACUUM CONTROL HARNESS	LR063124 HOSE - VACUUM CONTROL HARNESS 3.0 V6 D Gen2 Twin Turbo / Includes Valves, Vacuum Control Harness / From: FA000001 / To: GA660650	$301.11	1
8C362	LR078895	HOSE - VACUUM CONTROL HARNESS	LR078895 HOSE - VACUUM CONTROL HARNESS 3.0 V6 D Gen2 Twin Turbo / Includes Valves, Vacuum Control Harness / From: GA660651 / To: GA670650	$382.94	1
8C362	LR078841	HOSE - VACUUM CONTROL HARNESS	LR078841 HOSE - VACUUM CONTROL HARNESS 3.0 V6 D Gen2 Mono Turbo / Includes Valves, Vacuum Control Harness / From: FA516688	$509.23	1
8C362	LR082318	HOSE - VACUUM CONTROL HARNESS	LR082318 HOSE - VACUUM CONTROL HARNESS 3.0 V6 D Low MT ROW / Includes Valves, Vacuum Control Harness / From: HA000001	$188.18	1
8C362	LR104352	HOSE	LR104352 HOSE 3.0L 24V V6 Turbo Diesel Std Flow / Includes Valves, Vacuum Control Harness / From: GA568375	$322.87	1
8C362	LR076236	HOSE - VACUUM CONTROL HARNESS	LR076236 HOSE - VACUUM CONTROL HARNESS 3.0 V6 Diesel Electric Hybrid Eng / Includes Valves, Vacuum Control Harness / From: FA512615 / To: GA568374	$324.55	1
8C362	LR095366	HOSE - VACUUM CONTROL HARNESS	LR095366 HOSE - VACUUM CONTROL HARNESS 3.0 V6 D Gen2 Twin Turbo / Includes Valves, Vacuum Control Harness / From: GA670651	$414.28	1
9D653	LR013570	RESERVOIR - VACUUM	LR013570 RESERVOIR - VACUUM To Vacuum	$40.85	1
9F471	LR029415	CONNECTOR - 3-WAY	LR029415 CONNECTOR - 3-WAY To Vacuum Hose	$16.34	5
9F945	LR116599	SOLENOID - EGR	LR116599 SOLENOID - EGR From: JA000001	$254.11	1
9K378	LR076235	SOLENOID - TURBO CONTROL	LR076235 SOLENOID - TURBO CONTROL To: FA999999	$233.82	1
9K378	LR076235	SOLENOID - TURBO CONTROL	LR076235 SOLENOID - TURBO CONTROL From: GA000001	$233.82	1
12A188A	LR037779	HOSE - VACUUM	LR037779 HOSE - VACUUM To Air Cleaner Box / To: FA999999	$46.53	1
12A188A	LR071242	HOSE - VACUUM	LR071242 HOSE - VACUUM To Air Cleaner Box / From: GA000001	$26.73	1
12A188B	LR075844	HOSE - VACUUM	LR075844 HOSE - VACUUM U-Type	$27.36	1
6788	LR015439	BRACKET - HOSE	LR015439 BRACKET - HOSE To Vacuum Hose / To: EA999999	$30.74	1
6788	LR073587	BRACKET - HOSE	LR073587 BRACKET - HOSE To Vacuum Hose / From: FA000001	$30.59	1
