Exhaust Fluid Injection System (Injector And Control Unit) (3.0 V6 Diesel, With Diesel Exh Fluid...

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] - Exhaust Fluid Injection System (Injector and Control Unit) (3.0 V6 Diesel, With Diesel Exh Fluid...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR067041 SCREW $1.24 To Order
Photo Part No Description Price (each) Stock
LR067042 CLAMP - TUBE $3.69 To Order
Photo Part No Description Price (each) Stock
FX106046 NUT - FLANGED $0.60 IN STOCK
Photo Part No Description Price (each) Stock
RYG500190 SCREW $0.73 IN STOCK
Photo Part No Description Price (each) Stock
LR071241 CONTROL UNIT - AUXILIARY HEATER $139.61 To Order
LR117592 CONTROL UNIT - AUXILIARY HEATER $152.09 To Order
Photo Part No Description Price (each) Stock
LR062819 INJECTOR - DIESEL EXHAUST FLUID $230.37 To Order
LR062819 INJECTOR - DIESEL EXHAUST FLUID $230.37 To Order
LR134710 INJECTOR - DIESEL EXHAUST FLUID $268.29 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR138592 kIT - INJECTOR REFIT $23.30 To Order
LR138592 kIT - INJECTOR REFIT $23.30 To Order
Photo Part No Description Price (each) Stock
LR062818 BRACKET - MODULE $10.56 To Order
LR125947 BRACKET - MODULE $10.42 To Order
View All

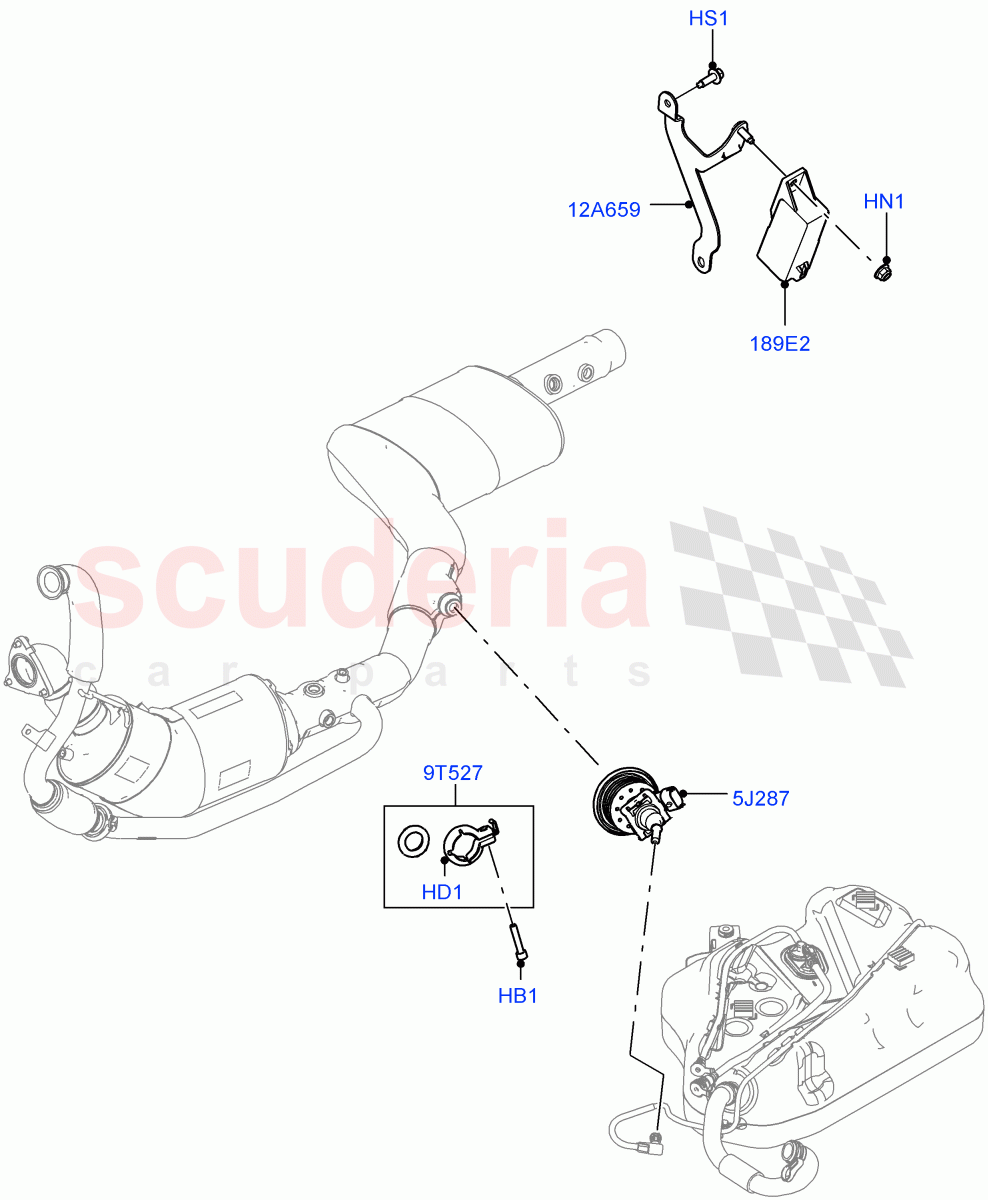

Exhaust Fluid Injection System (Injector and Control Unit) (3.0 V6 Diesel, With Diesel Exh Fluid Emission Tank) ((V) FROMGA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR067041
SCREW
Clamp, M5 x 25 		$1.24 1
HD1 LR067042
CLAMP - TUBE 		$3.69 1
HN1 FX106046
NUT - FLANGED
Control Module, Hexagonal Head, M6
IN STOCK 		$0.60 1
HS1 RYG500190
SCREW
Hexagonal Head, M6 X 16MM
IN STOCK 		$0.73 2
5J287 LR062819
INJECTOR - DIESEL EXHAUST FLUID
To: KA999999 		$230.37 1
5J287 LR062819
INJECTOR - DIESEL EXHAUST FLUID
From: LA800000 / To: LA894525 		$230.37 1
5J287 LR134710
INJECTOR - DIESEL EXHAUST FLUID
From: LA894526 / To: LA899999 		$268.29 1
5J287 LR134710
INJECTOR - DIESEL EXHAUST FLUID
From: LA700000 / To: LA799999 		$268.29 1
5J287 LR134710
INJECTOR - DIESEL EXHAUST FLUID
From: MA000001 		$268.29 1
9T527 LR138592
kIT - INJECTOR REFIT
Diesel Exhaust Fluid / To: LA894575 		$23.30 1
9T527 LR138592
kIT - INJECTOR REFIT
Diesel Exhaust Fluid / From: LA894576 		$23.30 1
12A659 LR062818
BRACKET - MODULE
To: JA999999 		$10.56 1
12A659 LR125947
BRACKET - MODULE
From: KA000001 		$10.42 1
189E2 LR071241
CONTROL UNIT - AUXILIARY HEATER
Diesel Exhaust Fluid / To: JA803200 		$139.61 1
189E2 LR117592
CONTROL UNIT - AUXILIARY HEATER
Diesel Exhaust Fluid / From: JA803201 		$152.09 1
