Name: Vacuum Control And Air Injection (Vacuum Pump And Hoses) (3.0 V6 D Gen2 Mono Turbo, 8 Speed Auto Trans ZF 8HP70 HEV 4WD, RHD, 3.0 V6 Diesel Electric Hybrid Eng, 3.0 V6 D Gen2 Twin Turbo) ((V) FROMFA000001, (V) TOGA999999)
Rating: 4.9 (1 reviews)

Vacuum Control And Air Injection (Vacuum Pump And Hoses) (3.0 V6 D Gen2 Mono Turbo, 8 Speed Auto Trans ZF 8HP70 HEV 4WD, RHD, 3.0 V6 Diesel Electric Hybrid Eng, 3.0 V6 D Gen2 Twin Turbo) ((V) FROMFA000001, (V) TOGA999999) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] - Vacuum Control And Air Injection (Vacuum Pump And Hoses) (3.0 V6 D Gen2 Mono Turbo, 8 Speed Auto...

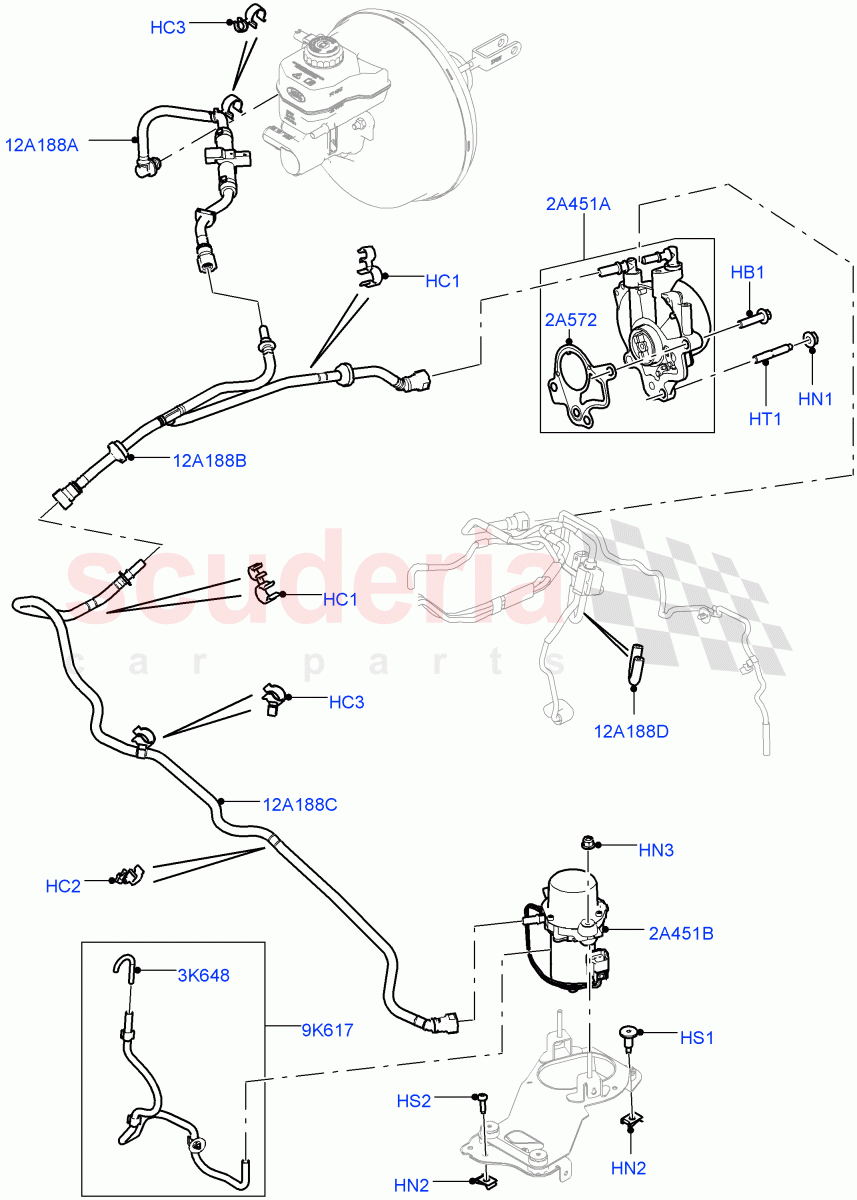

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR006708	BOLT	$0.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049401	CLIP - DOUBLE	$2.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049397	CLIP - SPECIAL	$2.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049402	CLIP - DOUBLE	$2.75	To Order

Photo	Part No	Description	Price (each)	Stock
	FN108046	NUT - HEX.	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027995	NUT	$1.01	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FY106046	NUT - HEX.	$0.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR011889	SCREW	$3.99	To Order

Photo	Part No	Description	Price (each)	Stock
	4648959	SCREW	$4.24	To Order

Photo	Part No	Description	Price (each)	Stock
	1331241	STUD	$1.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013619	GASKET - VACUUM PUMP	$47.83	To Order
	LR096060	GASKET - VACUUM PUMP	$14.73	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR031127	TUBE - BREATHER	$4.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048853	TUBE - BREATHER	$62.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044962	PUMP - VACUUM	$421.32	To Order
	LR077839	PUMP - VACUUM	$454.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048845	PUMP - VACUUM	$499.54	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048846	HOSE - VACUUM	$155.87	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048847	HOSE - VACUUM	$83.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048848	HOSE - VACUUM	$46.17	To Order
	LR072146	HOSE - VACUUM	$153.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075844	HOSE - VACUUM	$27.32	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR006708	BOLT	LR006708 BOLT M8 x 55MM, Pump - Vacuum / From: EA000001	$0.67	2
HC1	LR049401	CLIP - DOUBLE	LR049401 CLIP - DOUBLE Double, To Vacuum Hose / From: EA000001	$2.36	2
HC2	LR049397	CLIP - SPECIAL	LR049397 CLIP - SPECIAL 11 - 13 x 1.0 - 3.5, To Vacuum Hose / From: EA000001	$2.70	1
HC3	LR049402	CLIP - DOUBLE	LR049402 CLIP - DOUBLE Double, To Vacuum Hose / From: EA000001	$2.75	1
HN1	FN108046	NUT - HEX.	FN108046 NUT - HEX. Hexagonal Head, M8 / From: EA000001	$1.97	1
HN2	LR027995	NUT IN STOCK	LR027995 NUT M6 X 0.7 - 4, Nut "U" Spring / From: EA000001 IN STOCK	$1.01	3
HN3	FY106046	NUT - HEX. IN STOCK	FY106046 NUT - HEX. Auxiliary, Hexagonal Head, M6, Pump - Vacuum / From: EA000001 IN STOCK	$0.68	2
HS1	LR011889	SCREW	LR011889 SCREW Bracket, M6 x 29MM, Torx / From: EA000001	$3.99	3
HS2	4648959	SCREW	4648959 SCREW Bracket, M6 X 20MM, Torx / From: EA000001	$4.24	2
HT1	1331241	STUD	1331241 STUD M8 X 15 + M8 X 35 / From: EA000001	$1.10	1
2A451A	LR044962	PUMP - VACUUM	LR044962 PUMP - VACUUM Main / To: FA542149	$421.32	1
2A451A	LR077839	PUMP - VACUUM	LR077839 PUMP - VACUUM Main / From: FA542150	$454.15	1
2A451B	LR048845	PUMP - VACUUM	LR048845 PUMP - VACUUM Auxiliary / From: EA000001	$499.54	1
2A572	LR013619	GASKET - VACUUM PUMP	LR013619 GASKET - VACUUM PUMP To: FA999999	$47.83	1
2A572	LR096060	GASKET - VACUUM PUMP IN STOCK	LR096060 GASKET - VACUUM PUMP From: GA000001 IN STOCK	$14.73	1
3K648	LR031127	TUBE - BREATHER	LR031127 TUBE - BREATHER Top / From: EA000001	$4.55	1
9K617	LR048853	TUBE - BREATHER	LR048853 TUBE - BREATHER Complete / From: EA000001	$62.12	1
12A188A	LR048846	HOSE - VACUUM	LR048846 HOSE - VACUUM Includes Vacuum Sensor, To Brake Booster / From: EA000001	$155.87	1
12A188B	LR048847	HOSE - VACUUM	LR048847 HOSE - VACUUM To Vacuum Pump / From: EA000001	$83.53	1
12A188C	LR048848	HOSE - VACUUM	LR048848 HOSE - VACUUM To Vacuum Pump / To: FA999999	$46.17	1
12A188C	LR072146	HOSE - VACUUM	LR072146 HOSE - VACUUM To Vacuum Pump / From: GA000001	$153.26	1
12A188D	LR075844	HOSE - VACUUM	LR075844 HOSE - VACUUM U-Type	$27.32	1

Vacuum Control And Air Injection (Vacuum Pump And Hoses) (3.0 V6 D Gen2 Mono Turbo, 8 Speed Auto...

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC]

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] - Vacuum Control And Air Injection (Vacuum Pump And Hoses) (3.0 V6 D Gen2 Mono Turbo, 8 Speed Auto...

Add to Shopping Cart
