Vacuum Control And Air Injection (Vacuum Pump And Hoses) (3.0 V6 D Gen2 Mono Turbo, 8 Speed Auto...

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] - Vacuum Control And Air Injection (Vacuum Pump And Hoses) (3.0 V6 D Gen2 Mono Turbo, 8 Speed Auto...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR006708 BOLT $0.67 To Order
Photo Part No Description Price (each) Stock
LR049402 CLIP - DOUBLE $2.76 To Order
Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. $1.97 To Order
Photo Part No Description Price (each) Stock
1331241 STUD $1.11 To Order
Photo Part No Description Price (each) Stock
LR044962 PUMP - VACUUM $422.07 To Order
LR077839 PUMP - VACUUM $454.96 To Order
Photo Part No Description Price (each) Stock
LR013619 GASKET - VACUUM PUMP $47.92 To Order
LR096060 GASKET - VACUUM PUMP $14.76 IN STOCK
Photo Part No Description Price (each) Stock
LR048192 HOSE - VACUUM $42.79 To Order
LR048197 HOSE - VACUUM $165.36 To Order
LR067249 HOSE - VACUUM $61.07 To Order
Photo Part No Description Price (each) Stock
LR048196 HOSE - VACUUM $70.60 To Order
Photo Part No Description Price (each) Stock
LR075844 HOSE - VACUUM $27.36 To Order
View All

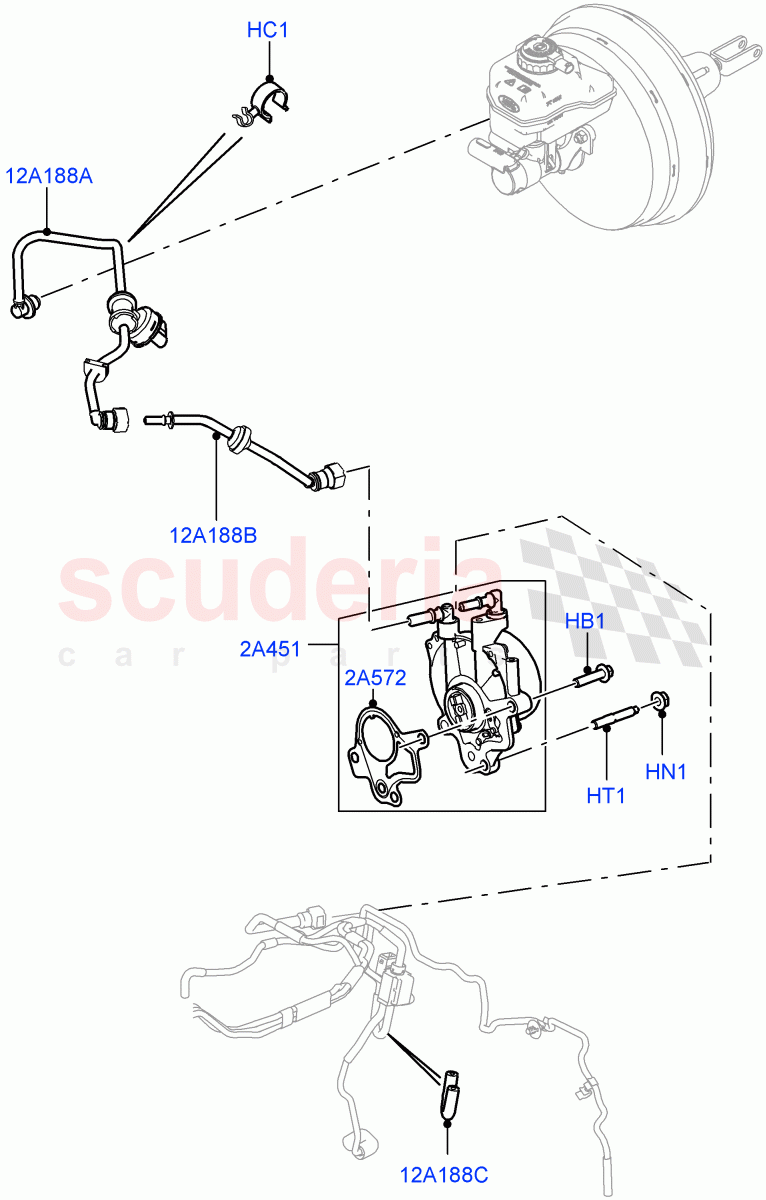

Vacuum Control And Air Injection (Vacuum Pump And Hoses) (3.0 V6 D Gen2 Mono Turbo, 8 Speed Auto Trans ZF 8HP70 4WD, RHD, 3.0L 24V V6 Turbo Diesel Std Flow, 3.0 V6 D Gen2 Twin Turbo, 3.0L 24V DOHC V6 TC Diesel) ((V) TOGA999999) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR006708
BOLT
M8 x 55MM, Pump - Vacuum 		$0.67 2
HC1 LR049402
CLIP - DOUBLE
Double, To Vacuum Hose 		$2.76 1
HN1 FN108046
NUT - HEX.
Hexagonal Head, M8 		$1.97 1
HT1 1331241
STUD
M8 X 15 + M8 X 35 		$1.11 1
2A451 LR044962
PUMP - VACUUM
To: FA542149 		$422.07 1
2A451 LR077839
PUMP - VACUUM
From: FA542150 		$454.96 1
2A572 LR013619
GASKET - VACUUM PUMP
To: FA999999 		$47.92 1
2A572 LR096060
GASKET - VACUUM PUMP
From: GA000001
IN STOCK 		$14.76 1
12A188A LR048192
HOSE - VACUUM
Standard Electric Starter Motor / To Brake Booster 		$42.79 1
12A188A LR048197
HOSE - VACUUM
Starter - Stop/Start System / Includes Vacuum Sensor, To Brake Booster / To: EA389110 		$165.36 1
12A188A LR067249
HOSE - VACUUM
Starter - Stop/Start System / Includes Vacuum Sensor, To Brake Booster / From: EA389111 		$61.07 1
12A188B LR048196
HOSE - VACUUM
To Vacuum Pump 		$70.60 1
12A188C LR075844
HOSE - VACUUM
U-Type 		$27.36 1
