Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] - Exhaust Fluid Injection System (Tank and Lines) (3.0 V6 Diesel, With Diesel Exh Fluid Emission...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FB108086 BOLT $1.97 IN STOCK
Photo Part No Description Price (each) Stock
LR034354 BOLT - PAN - TORX $1.07 To Order
Photo Part No Description Price (each) Stock
LR078393 BOLT AND WASHER - HEX.HEAD $1.55 To Order
Photo Part No Description Price (each) Stock
RYG500200 BOLT $0.67 To Order
Photo Part No Description Price (each) Stock
LR036382 CLIP $0.59 To Order
Photo Part No Description Price (each) Stock
AYP500110 SCREW $0.96 IN STOCK
Photo Part No Description Price (each) Stock
LR101817 GROMMET - WIRING $4.12 To Order
Photo Part No Description Price (each) Stock
LR104346 BOLT - HEX. HEAD - FLANGED $6.04 To Order
Photo Part No Description Price (each) Stock
LR062388 TANK&SHIELD - DIESEL EXHAUST FLUID $1,262.18 To Order
LR081708 TANK&SHIELD - DIESEL EXHAUST FLUID $1,138.06 To Order
LR096827 TANK&SHIELD - DIESEL EXHAUST FLUID $1,035.25 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR104347 TUBE $240.39 To Order
109123535 TUBE - DIESEL EXHAUST FLUID FEED $181.72 IN STOCK
Photo Part No Description Price (each) Stock
LR160433 TANK&SHIELD - DIESEL EXHAUST FLUID $1,137.94 To Order
Photo Part No Description Price (each) Stock
LR084743 PUMP - DIESEL EXHAUST FLUID $557.92 To Order
Photo Part No Description Price (each) Stock
LR071248 SHIELD - TANK $165.09 To Order
LR083484 SHIELD - TANK $150.91 To Order
Photo Part No Description Price (each) Stock
LR104348 TUBE - FUEL $111.85 To Order
Photo Part No Description Price (each) Stock
LR078768 CAP - FILLER $27.13 To Order
Photo Part No Description Price (each) Stock
LR071246 PIPE - FILLER $167.74 To Order
Photo Part No Description Price (each) Stock
LR062403 HOSE - TANK $37.95 To Order
Photo Part No Description Price (each) Stock
LR071756 TUBE - BREATHER $47.41 To Order
LR088517 TUBE - BREATHER $74.52 To Order
Photo Part No Description Price (each) Stock
LR062395 TUBE - BREATHER $39.98 To Order
LR071240 TUBE - BREATHER $63.72 To Order
Photo Part No Description Price (each) Stock
LR071236 PIPE - TANK VENT $29.03 To Order
LR095779 PIPE - TANK VENT $40.65 To Order
Photo Part No Description Price (each) Stock
LR071891 HOSE - TANK $68.72 IN STOCK
Photo Part No Description Price (each) Stock
LR071243 HOSE - TANK $52.82 To Order
View All

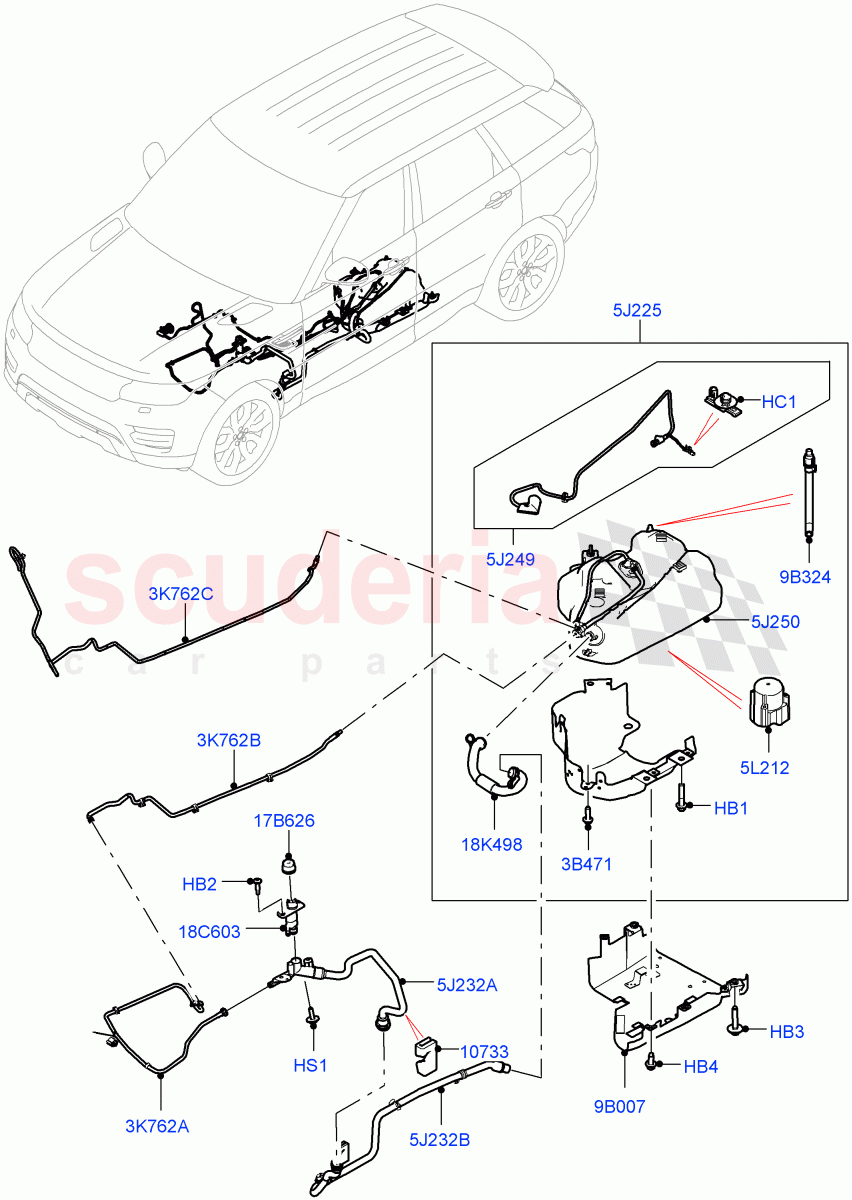

Exhaust Fluid Injection System (Tank and Lines) (3.0 V6 Diesel, With Diesel Exh Fluid Emission Tank) ((V) FROMGA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FB108086
BOLT
Cradle To Body, Hexagonal Head, M8 x 40MM
IN STOCK 		$1.97 3
HB2 LR034354
BOLT - PAN - TORX
Filler Neck, M6 x 19MM, Torx 		$1.07 2
HB3 LR078393
BOLT AND WASHER - HEX.HEAD
Cradle To Body, M8 x 40MM 		$1.55 2
HB4 RYG500200
BOLT
Cradle To Body, Hexagonal Head, M8 X 16MM 		$0.67 1
HC1 LR036382
CLIP
6.5 x 5MM 		$0.59 1
HS1 AYP500110
SCREW
Bolt And Washer, Hexagonal Head, M6 X 20MM
IN STOCK 		$0.96 1
3B471 LR104346
BOLT - HEX. HEAD - FLANGED
From: GA000001 		$6.04 1
3K762A LR071756
TUBE - BREATHER
Front / To: GA999999 		$47.41 1
3K762A LR088517
TUBE - BREATHER
Front / From: HA000001 		$74.52 1
3K762B LR062395
TUBE - BREATHER
Centre / To: FA999999 		$39.98 1
3K762B LR071240
TUBE - BREATHER
Centre / From: GA000001 		$63.72 1
3K762C LR071236
PIPE - TANK VENT
To: GA999999 		$29.03 1
3K762C LR095779
PIPE - TANK VENT
From: HA000001 		$40.65 1
5J225 LR062388
TANK&SHIELD - DIESEL EXHAUST FLUID
Complete Assembly / To: GA000009 		$1,262.18 1
5J225 LR081708
TANK&SHIELD - DIESEL EXHAUST FLUID
Complete Assembly / From: GA000010 / To: HA127797 		$1,138.06 1
5J225 LR096827
TANK&SHIELD - DIESEL EXHAUST FLUID
Complete Assembly / From: HA127798 / To: JA182244 		$1,035.25 1
5J225 LR112101
TANK&SHIELD - DIESEL EXHAUST FLUID
Complete Assembly / From: JA182245 / To: MA794086 		$1,053.66 1
5J225 LR160433
TANK&SHIELD - DIESEL EXHAUST FLUID
Complete Assembly / From: MA794087 		$1,137.94 1
5J232A LR071891
HOSE - TANK
Front, Pipe
IN STOCK 		$68.72 1
5J232B LR071243
HOSE - TANK
Centre, Pipe 		$52.82 1
5J249 LR104347
TUBE
Feed / From: GA000001 / To: JA182244 		$240.39 1
5J249 109123535
TUBE - DIESEL EXHAUST FLUID FEED
Feed / From: JA182245
IN STOCK 		$181.72 1
5J250 LR160433
TANK&SHIELD - DIESEL EXHAUST FLUID
With Pump 		$1,137.94 1
5L212 LR084743
PUMP - DIESEL EXHAUST FLUID
Service Kit 		$557.92 1
9B007 LR071248
SHIELD - TANK
With Fixing Parts / To: GA561530 		$165.09 1
9B007 LR083484
SHIELD - TANK
With Fixing Parts / From: GA561531 		$150.91 1
9B324 LR104348
TUBE - FUEL
From: GA000001 		$111.85 1
17B626 LR078768
CAP - FILLER
Filler Neck 		$27.13 1
18C603 LR071246
PIPE - FILLER
Filler Neck 		$167.74 1
18K498 LR062403
HOSE - TANK
To Tank 		$37.95 1
10733 LR101817
GROMMET - WIRING
From: GA000001 		$4.12 1
