Anti-Theft Alarm Systems (Changsu (China))

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] - Anti-Theft Alarm Systems (Changsu (China))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AYG500030 BOLT $0.59 To Order
Photo Part No Description Price (each) Stock
RYQ500040 FASTENER $0.61 IN STOCK
Photo Part No Description Price (each) Stock
FN106042 NUT $1.03 IN STOCK
Photo Part No Description Price (each) Stock
RYH500950 NUT - ADJUSTING $1.23 To Order
Photo Part No Description Price (each) Stock
VYP500060 SCREW $0.47 IN STOCK
Photo Part No Description Price (each) Stock
LR026428 SCREW $0.59 To Order
Photo Part No Description Price (each) Stock
LR066957 SCREW AND WASHER $4.44 To Order
Photo Part No Description Price (each) Stock
LR068413 HORN $73.73 To Order
LR158548 HORN $73.73 To Order
Photo Part No Description Price (each) Stock
LR033377 WIRE - SCANNING MODULE $28.02 To Order
Photo Part No Description Price (each) Stock
LR094021 FOAM PAD - ENERGY ABSORBING $13.98 To Order
Photo Part No Description Price (each) Stock
LR031729 HEAT SHIELD - EXHAUST $19.14 To Order
Photo Part No Description Price (each) Stock
LR117362 BRACKET - HORN $16.27 To Order
Photo Part No Description Price (each) Stock
LR128870 MOUNTING - ANTENNA $18.83 To Order
Photo Part No Description Price (each) Stock
LR110282 BRACKET - SUPPORT $25.00 To Order
Photo Part No Description Price (each) Stock
LR115229 TRANSCEIVER - ANTI THEFT $51.30 To Order
Photo Part No Description Price (each) Stock
LR115231 TRANSCEIVER - ANTI THEFT $48.87 To Order
Photo Part No Description Price (each) Stock
LR117928 MODULE - PASSIVE START $284.58 To Order
LR117932 MODULE $284.58 To Order
Photo Part No Description Price (each) Stock
LR117933 RECEIVER - RADIO REMOTE CONTROL $103.51 To Order
LR117934 RECEIVER - RADIO REMOTE CONTROL $96.53 To Order
LR149754 RECEIVER - RADIO REMOTE CONTROL $93.27 To Order
Photo Part No Description Price (each) Stock
LR106725 SENSOR AND BRACKET - INTERIOR SCAN $180.02 To Order
Photo Part No Description Price (each) Stock
LR099137 ANTENNA - LF $58.94 To Order
Photo Part No Description Price (each) Stock
LR067841 SIREN - ANTI-THEFT ALARM SYSTEM $181.63 To Order
Photo Part No Description Price (each) Stock
LR133253 TRANSCEIVER $301.85 To Order
Photo Part No Description Price (each) Stock
LR138727 TRANSCEIVER $290.64 To Order
View All

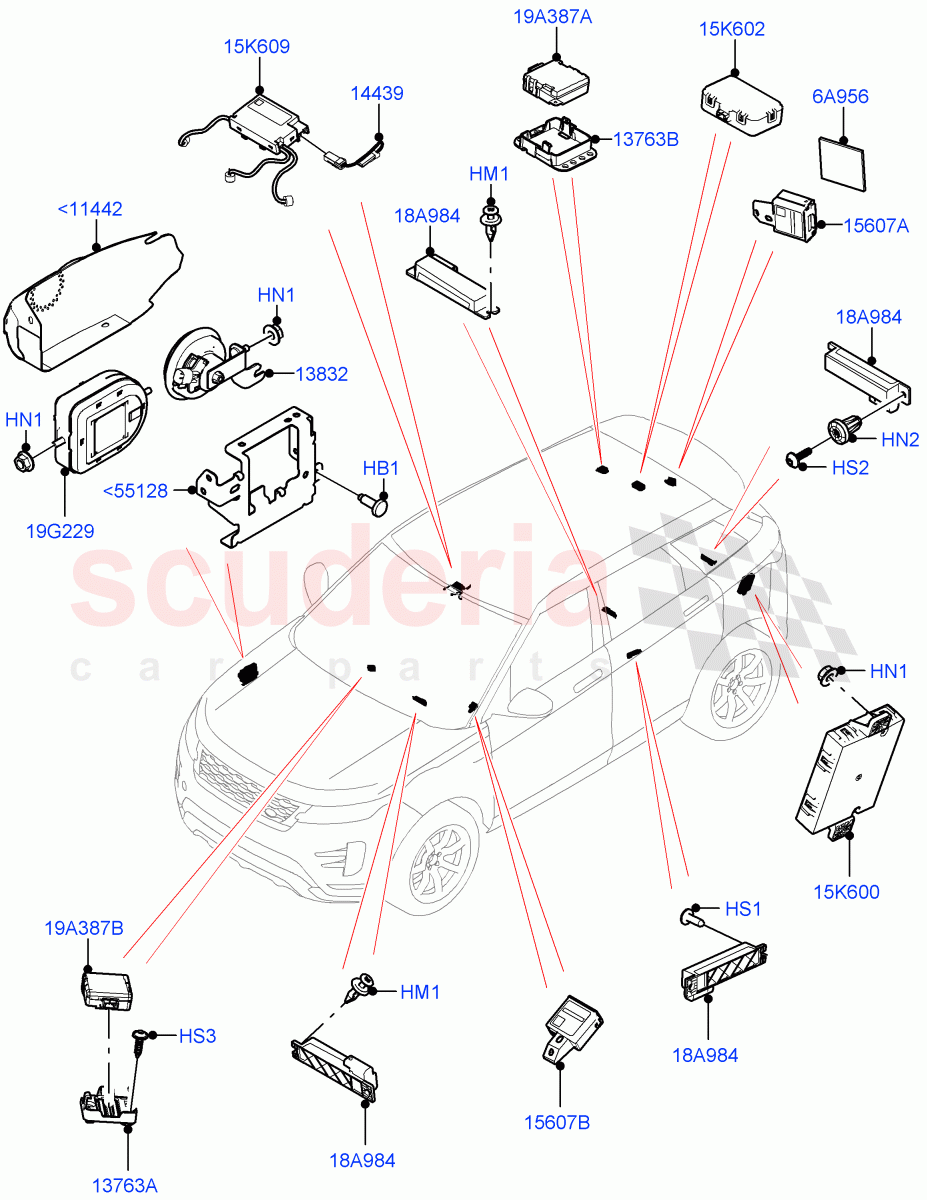

Anti-Theft Alarm Systems (Changsu (China)) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<11442 LR031729
HEAT SHIELD - EXHAUST 		$19.14 1
<55128 LR117362
BRACKET - HORN 		$16.27 1
HB1 AYG500030
BOLT
M6 x 15 		$0.59 2
HM1 RYQ500040
FASTENER
6.25 x 1.6/6MM
IN STOCK 		$0.61 4
HN1 FN106042
NUT
Hexagonal Head, M6
IN STOCK 		$1.03 6
HN2 RYH500950
NUT - ADJUSTING
4.8 X 8 X 8 X 0.7, Expanding Rivet, Includes Seal 		$1.23 4
HS1 VYP500060
SCREW
Keyless Entry/Start - Passive / 4.8 X 16MM, Torx
IN STOCK 		$0.47 4
HS2 LR026428
SCREW
Keyless Entry/Start - Passive / M4 x 16MM 		$0.59 2
HS3 LR066957
SCREW AND WASHER
Keyless Entry/Start - Passive / 4.2 x 16MM, Mounting Bracket 		$4.44 2
6A956 LR094021
FOAM PAD - ENERGY ABSORBING
Vehicle Access-Leisure Activity Key 		$13.98 1
15K600 LR117928
MODULE - PASSIVE START
With Keyless Start 		$284.58 1
15K600 LR117932
MODULE
Keyless Entry/Start - Passive 		$284.58 1
15K602 LR117933
RECEIVER - RADIO REMOTE CONTROL
315 MHZ Door Lock Frequency 		$103.51 1
15K602 LR117934
RECEIVER - RADIO REMOTE CONTROL
433 MHZ Door Lock Frequency / To: MG575834 		$96.53 1
15K602 LR149754
RECEIVER - RADIO REMOTE CONTROL
433 MHZ Door Lock Frequency / From: MG575835 		$93.27 1
15K609 LR106725
SENSOR AND BRACKET - INTERIOR SCAN
Perimeter / Volume Theft System / Front, Located In The Headliner 		$180.02 1
18A984 LR099137
ANTENNA - LF
Remote Keyless Antenna 		$58.94 1
19A387A LR133253
TRANSCEIVER
Keyless Entry/Start - Passive / Rear 		$301.85 1
19A387B LR138727
TRANSCEIVER
Keyless Entry/Start - Passive / Front 		$290.64 1
19G229 LR067841
SIREN - ANTI-THEFT ALARM SYSTEM
BBU With Tilt Sensor 		$181.63 1
13763A LR128870
MOUNTING - ANTENNA
Keyless Entry/Start - Passive / Attaches Antenna, Front 		$18.83 1
13763B LR110282
BRACKET - SUPPORT
Keyless Entry/Start - Passive / Attaches Antenna, Rear 		$25.00 1
13832 LR068413
HORN
Securty Siren - Less Battery Backup / To: MG575834 		$73.73 1
13832 LR158548
HORN
Securty Siren - Less Battery Backup / From: MG575835 		$73.73 1
14439 LR033377
WIRE - SCANNING MODULE
Perimeter / Volume Theft System 		$28.02 1
15607A LR115229
TRANSCEIVER - ANTI THEFT
Vehicle Access-Leisure Activity Key / Rear 		$51.30 1
15607B LR115231
TRANSCEIVER - ANTI THEFT
Front, With Engine Immobiliser 		$48.87 1
