Headlamps And Front Flasher Lamps (Halewood (Uk))

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] - Headlamps And Front Flasher Lamps (Halewood (UK))

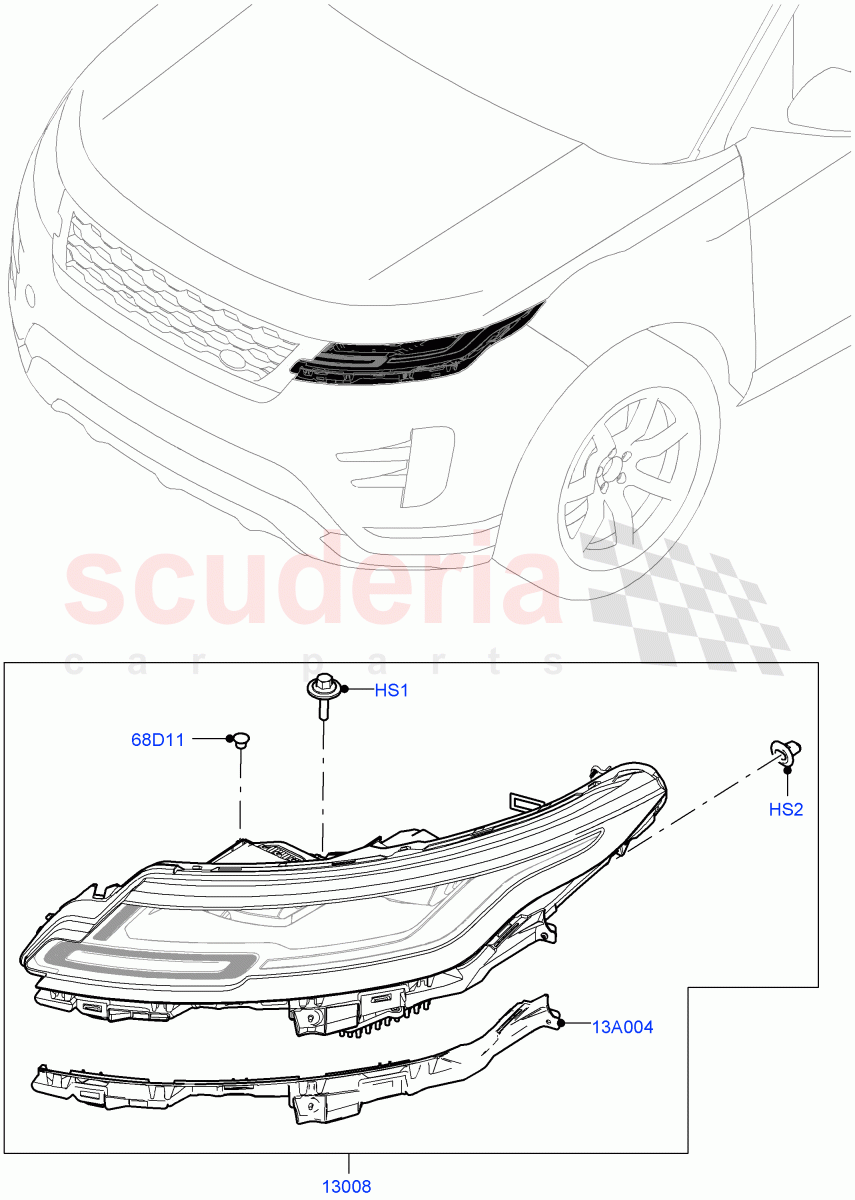

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR117860 SCREW $1.58 IN STOCK
Photo Part No Description Price (each) Stock
LR117858 RETAINER $0.96 IN STOCK
Photo Part No Description Price (each) Stock
LR116006 HEADLAMP AND FLASHER $1,431.29 To Order
LR116007 HEADLAMP AND FLASHER $1,599.89 To Order
LR116008 HEADLAMP AND FLASHER $1,725.65 To Order
...and 87 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR025160 CAP - SCREW $1.00 To Order
Photo Part No Description Price (each) Stock
LR124533 BRACKET - HEADLAMP MOUNTING $23.35 To Order
LR124534 BRACKET - HEADLAMP MOUNTING $23.35 To Order
View All
Headlamps And Front Flasher Lamps (Halewood (UK)) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 LR117860
SCREW
Bolt And Washer, Hexagonal Head, M6 x 27MM
IN STOCK 		$1.58 6
HS2 LR117858
RETAINER
Retainer
IN STOCK 		$0.96 1
13A004 LR124533
BRACKET - HEADLAMP MOUNTING
RH 		$23.35 1
13A004 LR124534
BRACKET - HEADLAMP MOUNTING
LH 		$23.35 1
68D11 LR025160
CAP - SCREW
H/Lamp Operation FM VSS 108 Pattern 		$1.00 2
13008 LR116006
HEADLAMP AND FLASHER
H/Lamp Operation RHD - Left Justify, Headlamps - LED / RH / To: LH022166 		$1,431.29 1
13008 LR116007
HEADLAMP AND FLASHER
H/Lamp Operation LHD-Right Justify, Headlamps - LED / RH / To: LH021689 		$1,599.89 1
13008 LR116008
HEADLAMP AND FLASHER
H/Lamp Operation RHD - Left Justify, Headlamps - LED Premium / RH / To: LH022166 		$1,725.65 1
13008 LR116009
HEADLAMP AND FLASHER
H/Lamp Operation LHD-Right Justify, Headlamps - LED Premium / RH / To: LH021689 		$1,928.94 1
13008 LR116010
HEADLAMP AND FLASHER
H/Lamp Operation RHD - Left Justify, Headlamps - LED Matrix / RH / To: LH022589 		$2,309.22 1
13008 LR116011
HEADLAMP AND FLASHER
H/Lamp Operation LHD-Right Justify, Headlamps - LED Matrix / RH / To: LH022166 		$2,581.24 1
13008 LR116012
HEADLAMP AND FLASHER
H/Lamp Operation RHD - Left Justify, Headlamps - LED / LH / To: LH022166 		$1,431.29 1
13008 LR116013
HEADLAMP AND FLASHER
H/Lamp Operation LHD-Right Justify, Headlamps - LED / LH / To: LH021689 		$1,599.89 1
13008 LR116014
HEADLAMP AND FLASHER
H/Lamp Operation RHD - Left Justify, Headlamps - LED Premium / LH / To: LH022166 		$1,725.65 1
13008 LR116015
HEADLAMP AND FLASHER
H/Lamp Operation LHD-Right Justify, Headlamps - LED Premium / LH / To: LH021689 		$1,786.07 1
13008 LR116016
HEADLAMP AND FLASHER
H/Lamp Operation RHD - Left Justify, Headlamps - LED Matrix / LH / To: LH022589 		$2,309.22 1
13008 LR116017
HEADLAMP AND FLASHER
H/Lamp Operation LHD-Right Justify, Headlamps - LED Matrix / LH / To: LH022166 		$2,581.24 1
13008 LR122698
HEADLAMP AND FLASHER
H/Lamp Operation FM VSS 108 Pattern, Headlamps - LED / RH / To: MH127123 		$1,523.71 1
13008 LR122699
HEADLAMP AND FLASHER
H/Lamp Operation FM VSS 108 Pattern, Headlamps - LED Premium / RH / To: MH127123 		$2,116.52 1
13008 LR122700
HEADLAMP AND FLASHER
H/Lamp Operation FM VSS 108 Pattern, Headlamps - LED Matrix / RH / To: MH127123 		$2,458.31 1
13008 LR122701
HEADLAMP AND FLASHER
H/Lamp Operation FM VSS 108 Pattern, Headlamps - LED / LH / To: MH127123 		$1,523.71 1
13008 LR122702
HEADLAMP AND FLASHER
H/Lamp Operation FM VSS 108 Pattern, Headlamps - LED Premium / LH / To: MH127123 		$2,116.52 1
13008 LR122703
HEADLAMP AND FLASHER
H/Lamp Operation FM VSS 108 Pattern, Headlamps - LED Matrix / LH / To: MH127123 		$2,458.31 1
13008 LR133650
HEADLAMP AND FLASHER
H/Lamp Operation RHD - Left Justify, Headlamps - LED / RH / From: LH022167 / To: LH217158 		$1,973.24 1
13008 LR133651
HEADLAMP AND FLASHER
H/Lamp Operation LHD-Right Justify, Headlamps - LED / RH / From: LH021690 / To: LH217158 		$1,973.24 1
13008 LR135955
HEADLAMP AND FLASHER
H/Lamp Operation RHD - Left Justify, Headlamps - LED Premium / RH / From: LH022167 / To: LH217158 		$2,379.09 1
13008 LR135968
HEADLAMP AND FLASHER
H/Lamp Operation LHD-Right Justify, Headlamps - LED Premium / RH / From: LH021690 / To: LH217158 		$2,202.86 1
13008 LR133652
HEADLAMP AND FLASHER
H/Lamp Operation RHD - Left Justify, Headlamps - LED Matrix / RH / From: LH022590 / To: LH217158 		$3,183.65 1
13008 LR133653
HEADLAMP AND FLASHER
H/Lamp Operation LHD-Right Justify, Headlamps - LED Matrix / RH / From: LH022167 / To: LH217158 		$3,183.65 1
13008 LR133655
HEADLAMP AND FLASHER
H/Lamp Operation LHD-Right Justify, Headlamps - LED / LH / From: LH021690 / To: LH217158 		$1,410.85 1
13008 LR135971
HEADLAMP AND FLASHER
H/Lamp Operation RHD - Left Justify, Headlamps - LED Premium / LH / From: LH022167 / To: LH217158 		$2,202.86 1
13008 LR135969
HEADLAMP AND FLASHER
H/Lamp Operation LHD-Right Justify, Headlamps - LED Premium / LH / From: LH021690 / To: LH217158 		$2,128.36 1
13008 LR133656
HEADLAMP AND FLASHER
H/Lamp Operation RHD - Left Justify, Headlamps - LED Matrix / LH / From: LH022590 / To: LH217158 		$3,075.99 1
13008 LR133657
HEADLAMP AND FLASHER
H/Lamp Operation LHD-Right Justify, Headlamps - LED Matrix / LH / From: LH022167 / To: LH217158 		$3,183.65 1
13008 LR135953
HEADLAMP AND FLASHER
H/Lamp Operation RHD - Left Justify, Headlamps - LED / RH / From: LH217159 / To: MH127350 		$1,363.13 1
13008 LR135954
HEADLAMP AND FLASHER
H/Lamp Operation LHD-Right Justify, Headlamps - LED / RH / From: LH217159 / To: MH127350 		$1,523.71 1
13008 LR135966
HEADLAMP AND FLASHER
H/Lamp Operation RHD - Left Justify, Headlamps - LED Premium / RH / From: LH217159 / To: MH127350 		$1,643.49 1
13008 LR135967
HEADLAMP AND FLASHER
H/Lamp Operation LHD-Right Justify, Headlamps - LED Premium / RH / From: LH217159 / To: MH127350 		$1,837.07 1
13008 LR135956
HEADLAMP AND FLASHER
H/Lamp Operation RHD - Left Justify, Headlamps - LED Matrix / RH / From: LH217159 / To: MH127350 		$2,199.24 1
13008 LR135957
HEADLAMP AND FLASHER
H/Lamp Operation LHD-Right Justify, Headlamps - LED Matrix / RH / From: LH217159 / To: MH127350 		$2,458.31 1
13008 LR138398
HEADLAMP AND FLASHER
H/Lamp Operation RHD - Left Justify, Headlamps - LED / LH / From: LH217159 / To: MH127350 		$1,973.24 1
13008 LR138399
HEADLAMP AND FLASHER
H/Lamp Operation LHD-Right Justify, Headlamps - LED / LH / From: LH217159 / To: MH127350 		$1,973.24 1
13008 LR135972
HEADLAMP AND FLASHER
H/Lamp Operation RHD - Left Justify, Headlamps - LED Premium / LH / From: LH217159 / To: MH127350 		$1,643.49 1
13008 LR135970
HEADLAMP AND FLASHER
H/Lamp Operation LHD-Right Justify, Headlamps - LED Premium / LH / From: LH217159 / To: MH127350 		$1,837.07 1
13008 LR135958
HEADLAMP AND FLASHER
H/Lamp Operation RHD - Left Justify, Headlamps - LED Matrix / LH / From: LH217159 / To: MH127350 		$2,199.24 1
13008 LR135959
HEADLAMP AND FLASHER
H/Lamp Operation LHD-Right Justify, Headlamps - LED Matrix / LH / From: LH217159 / To: MH127350 		$2,458.31 1
13008 LR154875
HEADLAMP AND FLASHER
H/Lamp Operation RHD - Left Justify, Headlamps - LED / RH / From: MH127983 		$1,739.49 1
13008 LR154878
HEADLAMP AND FLASHER
H/Lamp Operation LHD-Right Justify, Headlamps - LED / RH / From: MH127983 		$1,739.49 1
13008 LR154881
HEADLAMP AND FLASHER
H/Lamp Operation RHD - Left Justify, Headlamps - LED Premium / RH / From: MH127983 		$2,147.33 1
13008 LR154883
HEADLAMP AND FLASHER
H/Lamp Operation LHD-Right Justify, Headlamps - LED Premium / RH / From: MH127983 		$2,147.33 1
13008 LR154885
HEADLAMP AND FLASHER
H/Lamp Operation RHD - Left Justify, Headlamps - LED Matrix / RH / From: MH127983 		$2,821.48 1
13008 LR154887
HEADLAMP AND FLASHER
H/Lamp Operation LHD-Right Justify, Headlamps - LED Matrix / RH / From: MH127983 		$2,821.48 1
13008 LR154876
HEADLAMP AND FLASHER
H/Lamp Operation RHD - Left Justify, Headlamps - LED / LH / From: MH127983 		$1,739.49 1
13008 LR154879
HEADLAMP AND FLASHER
H/Lamp Operation LHD-Right Justify, Headlamps - LED / LH / From: MH127983 		$1,739.49 1
13008 LR154882
HEADLAMP AND FLASHER
H/Lamp Operation RHD - Left Justify, Headlamps - LED Premium / LH / From: MH127983 		$2,147.33 1
13008 LR154884
HEADLAMP AND FLASHER
H/Lamp Operation LHD-Right Justify, Headlamps - LED Premium / LH / From: MH127983 		$2,147.33 1
13008 LR154886
HEADLAMP AND FLASHER
H/Lamp Operation RHD - Left Justify, Headlamps - LED Matrix / LH / From: MH127983 		$2,821.48 1
13008 LR154888
HEADLAMP AND FLASHER
H/Lamp Operation LHD-Right Justify, Headlamps - LED Matrix / LH / From: MH127983 		$2,821.48 1
13008 LR154858
HEADLAMP AND FLASHER
H/Lamp Operation FM VSS 108 Pattern, Headlamps - LED / RH / From: MH127983 		$1,739.49 1
13008 LR154859
HEADLAMP AND FLASHER
H/Lamp Operation FM VSS 108 Pattern, Headlamps - LED Premium / RH / From: MH127983 		$2,480.25 1
13008 LR154860
HEADLAMP AND FLASHER
H/Lamp Operation FM VSS 108 Pattern, Headlamps - LED Matrix / RH / From: MH127983 		$3,032.01 1
13008 LR154861
HEADLAMP AND FLASHER
H/Lamp Operation FM VSS 108 Pattern, Headlamps - LED / LH / From: MH127983 		$1,739.49 1
13008 LR154862
HEADLAMP AND FLASHER
H/Lamp Operation FM VSS 108 Pattern, Headlamps - LED Premium / LH / From: MH127983 		$2,480.25 1
13008 LR154863
HEADLAMP AND FLASHER
H/Lamp Operation FM VSS 108 Pattern, Headlamps - LED Matrix / LH / From: MH127983 		$3,032.01 1
13008 LR133654
HEADLAMP AND FLASHER
H/Lamp Operation RHD - Left Justify, Headlamps - LED / LH / From: LH022167 / To: LH217158 		$1,363.13 1
13008 LR159594
HEADLAMP AND FLASHER
H/Lamp Operation FM VSS 108 Pattern, Headlamps - LED / RH / From: MH127124 / To: MH127982 		$1,689.57 1
13008 LR159599
HEADLAMP AND FLASHER
H/Lamp Operation FM VSS 108 Pattern, Headlamps - LED Premium / RH / From: MH127124 / To: MH127727 		$2,441.61 1
13008 LR159601
HEADLAMP AND FLASHER
H/Lamp Operation FM VSS 108 Pattern, Headlamps - LED Matrix / RH / From: MH127124 / To: MH127727 		$2,935.16 1
13008 LR159596
HEADLAMP AND FLASHER
H/Lamp Operation FM VSS 108 Pattern, Headlamps - LED / LH / From: MH127124 / To: MH127982 		$1,689.57 1
13008 LR159600
HEADLAMP AND FLASHER
H/Lamp Operation FM VSS 108 Pattern, Headlamps - LED Premium / LH / From: MH127124 / To: MH127727 		$2,527.07 1
13008 LR159602
HEADLAMP AND FLASHER
H/Lamp Operation FM VSS 108 Pattern, Headlamps - LED Matrix / LH / From: MH127124 / To: MH127727 		$2,935.16 1
13008 LR159604
HEADLAMP
H/Lamp Operation RHD - Left Justify, Headlamps - LED / RH / From: MH127351 / To: MH127982 		$1,689.57 1
13008 LR159605
HEADLAMP
H/Lamp Operation LHD-Right Justify, Headlamps - LED / RH / From: MH127351 / To: MH127982 		$1,689.57 1
13008 LR159606
HEADLAMP
H/Lamp Operation RHD - Left Justify, Headlamps - LED Premium / RH / From: MH127351 / To: MH127727 		$2,193.39 1
13008 LR159607
HEADLAMP
H/Lamp Operation LHD-Right Justify, Headlamps - LED Premium / RH / From: MH127351 / To: MH127727 		$2,193.39 1
13008 LR159608
HEADLAMP
H/Lamp Operation RHD - Left Justify, Headlamps - LED Matrix / RH / From: MH127351 / To: MH127727 		$2,935.16 1
13008 LR159609
HEADLAMP
H/Lamp Operation LHD-Right Justify, Headlamps - LED Matrix / RH / From: MH127351 / To: MH127727 		$2,935.16 1
13008 LR159610
HEADLAMP
H/Lamp Operation RHD - Left Justify, Headlamps - LED / LH / From: MH127351 / To: MH127982 		$1,689.57 1
13008 LR159611
HEADLAMP
H/Lamp Operation LHD-Right Justify, Headlamps - LED / LH / From: MH127351 / To: MH127982 		$1,689.57 1
13008 LR159612
HEADLAMP
H/Lamp Operation RHD - Left Justify, Headlamps - LED Premium / LH / From: MH127351 / To: MH127727 		$2,193.39 1
13008 LR159613
HEADLAMP
H/Lamp Operation LHD-Right Justify, Headlamps - LED Premium / LH / From: MH127351 / To: MH127727 		$2,193.39 1
13008 LR159614
HEADLAMP
H/Lamp Operation RHD - Left Justify, Headlamps - LED Matrix / LH / From: MH127351 / To: MH127727 		$2,835.89 1
13008 LR159615
HEADLAMP
H/Lamp Operation LHD-Right Justify, Headlamps - LED Matrix / LH / From: MH127351 / To: MH127727 		$2,935.16 1
13008 LR170970
HEADLAMP AND FLASHER
H/Lamp Operation FM VSS 108 Pattern, Headlamps - LED Premium / RH / From: MH127728 / To: MH127982 		$2,293.63 1
13008 LR170973
HEADLAMP AND FLASHER
H/Lamp Operation FM VSS 108 Pattern, Headlamps - LED Matrix / RH / From: MH127728 / To: MH127982 		$2,664.06 1
13008 LR170971
HEADLAMP AND FLASHER
H/Lamp Operation FM VSS 108 Pattern, Headlamps - LED Premium / LH / From: MH127728 / To: MH127982 		$2,293.63 1
13008 LR170972
HEADLAMP AND FLASHER
H/Lamp Operation FM VSS 108 Pattern, Headlamps - LED Matrix / LH / From: MH127728 / To: MH127982 		$2,664.06 1
13008 LR170974
HEADLAMP
H/Lamp Operation RHD - Left Justify, Headlamps - LED Premium / RH / From: MH127728 / To: MH127982 		$1,990.79 1

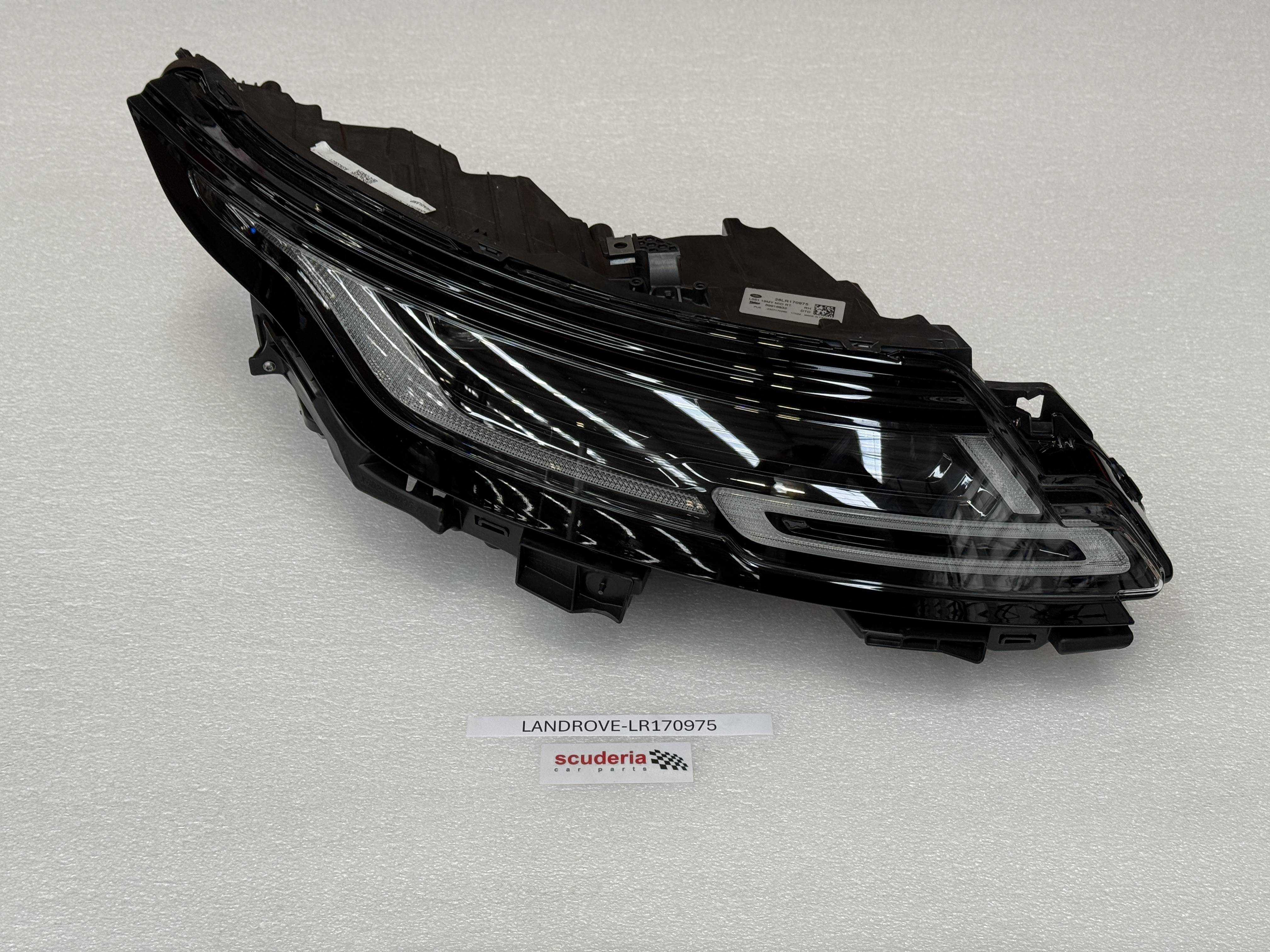

13008 LR170975
HEADLAMP
H/Lamp Operation LHD-Right Justify, Headlamps - LED Premium / RH / From: MH127728 / To: MH127982
IN STOCK 		$1,359.83 1
13008 LR170977
HEADLAMP
H/Lamp Operation RHD - Left Justify, Headlamps - LED Matrix / RH / From: MH127728 / To: MH127982 		$2,664.06 1
13008 LR170978
HEADLAMP
H/Lamp Operation LHD-Right Justify, Headlamps - LED Matrix / RH / From: MH127728 / To: MH127982 		$2,664.06 1
13008 LR170982
HEADLAMP
H/Lamp Operation RHD - Left Justify, Headlamps - LED Premium / LH / From: MH127728 / To: MH127982 		$1,990.79 1
13008 LR170981
HEADLAMP
H/Lamp Operation LHD-Right Justify, Headlamps - LED Premium / LH / From: MH127728 / To: MH127982 		$1,989.20 1
13008 LR170980
HEADLAMP
H/Lamp Operation RHD - Left Justify, Headlamps - LED Matrix / LH / From: MH127728 / To: MH127982 		$2,664.06 1
13008 LR170979
HEADLAMP
H/Lamp Operation LHD-Right Justify, Headlamps - LED Matrix / LH / From: MH127728 / To: MH127982 		$2,664.06 1

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout
