Name: Hybrid Electrical Modules (MHEV Battery Housing, Cooling Ducts and Fans) (Halewood (UK), Electric Engine Battery-MHEV)
Rating: 4.5 (1 reviews)

Hybrid Electrical Modules (MHEV Battery Housing, Cooling Ducts and Fans) (Halewood (UK), Electric Engine Battery-MHEV) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] - Hybrid Electrical Modules (MHEV Battery Housing, Cooling Ducts and Fans) (Halewood (UK), Electric...

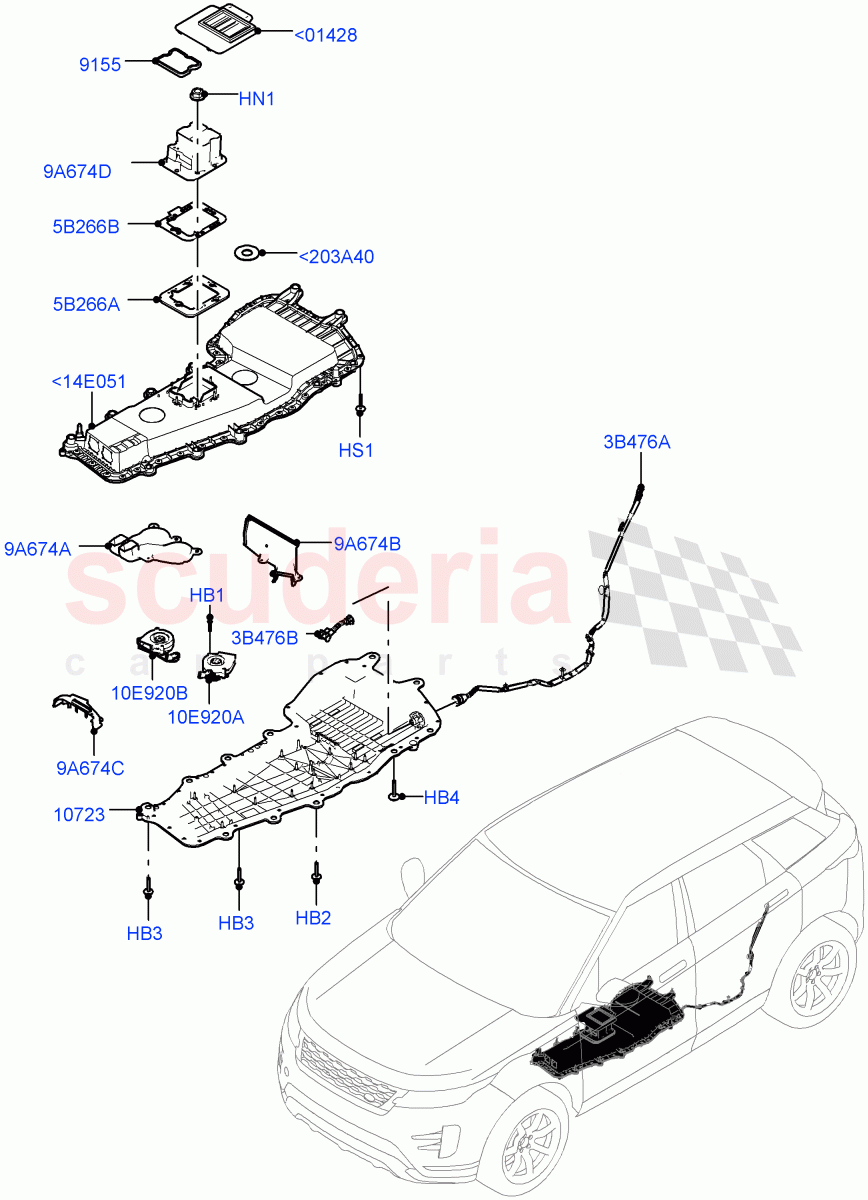

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR073735	BOLT	$1.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR118799	BOLT AND WASHER - HEX.HEAD	$3.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR118800	BOLT AND WASHER - HEX.HEAD	$3.07	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR140065	BOLT AND WASHER - HEX.HEAD	$2.60	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR139570	SCREW	$1.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115526	FOAM - SEALING	$11.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115330	TRAY - BATTERY	$149.21	To Order
	LR128845	TRAY - BATTERY	$150.32	To Order
	LR167901	TRAY - BATTERY	$138.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115321	DUCT - CABIN	$81.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115333	HOSE - VENT	$48.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115334	HOSE - VENT	$14.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115509	GASKET - BATTERY	$9.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115510	GASKET - BATTERY	$1.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115516	DUCT - COOLING	$85.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115517	DUCT - COOLING	$73.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115519	DUCT - COOLING	$73.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115518	DUCT - COOLING	$72.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115329	TRAY - BATTERY	$146.01	To Order
	LR128844	TRAY - BATTERY	$136.94	To Order
	LR167906	COVER - CONVERTER HOUSING	$116.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115524	FOAM - SEALING	$0.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115521	FAN - AUXILIARY COOLING	$202.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115522	FAN - AUXILIARY COOLING	$202.27	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<14E051	LR115329	TRAY - BATTERY	LR115329 TRAY - BATTERY Upper / To: LH002097	$146.01	1
<14E051	LR128844	TRAY - BATTERY	LR128844 TRAY - BATTERY Upper / From: LH002098 / To: NH999999	$136.94	1
<14E051	LR167906	COVER - CONVERTER HOUSING	LR167906 COVER - CONVERTER HOUSING Upper / From: PH000001	$116.84	1
<203A40	LR115524	FOAM - SEALING	LR115524 FOAM - SEALING	$0.80	2
<01428	LR115321	DUCT - CABIN	LR115321 DUCT - CABIN	$81.81	1
HB1	LR073735	BOLT	LR073735 BOLT Cooling Fan to Battery Tray, M6 X 40MM	$1.40	4
HB2	LR118799	BOLT AND WASHER - HEX.HEAD	LR118799 BOLT AND WASHER - HEX.HEAD Battery Tray To Main Body, M8 x 55MM, Washer - 30 mm	$3.07	7
HB3	LR118800	BOLT AND WASHER - HEX.HEAD IN STOCK	LR118800 BOLT AND WASHER - HEX.HEAD Battery Tray To Main Body, M8 x 55MM, Washer - 24 mm IN STOCK	$3.07	2
HB4	LR140065	BOLT AND WASHER - HEX.HEAD	LR140065 BOLT AND WASHER - HEX.HEAD Hexagonal Head, M10 x 40MM	$2.60	2
HN1	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 IN STOCK	$1.47	6
HS1	LR139570	SCREW	LR139570 SCREW Hexagonal Head, M6 X 20MM	$1.63	39
3B476A	LR115333	HOSE - VENT	LR115333 HOSE - VENT Outer	$48.36	1
3B476B	LR115334	HOSE - VENT	LR115334 HOSE - VENT Inner	$14.17	1
5B266A	LR115509	GASKET - BATTERY	LR115509 GASKET - BATTERY Battery Tray	$9.86	1
5B266B	LR115510	GASKET - BATTERY	LR115510 GASKET - BATTERY Air Duct	$1.81	1
9A674A	LR115516	DUCT - COOLING	LR115516 DUCT - COOLING Inlet, Inner	$85.86	1
9A674B	LR115517	DUCT - COOLING	LR115517 DUCT - COOLING Directional Duct, Inner	$73.56	1
9A674C	LR115519	DUCT - COOLING	LR115519 DUCT - COOLING Inner	$73.84	1
9A674D	LR115518	DUCT - COOLING	LR115518 DUCT - COOLING Inlet, Outer	$72.89	1
10E920A	LR115521	FAN - AUXILIARY COOLING	LR115521 FAN - AUXILIARY COOLING EV Battery Cooling	$202.27	1
10E920B	LR115522	FAN - AUXILIARY COOLING	LR115522 FAN - AUXILIARY COOLING Converter Cooling	$202.27	1
9155	LR115526	FOAM - SEALING	LR115526 FOAM - SEALING Air Inlet (Recirculation)	$11.18	1
10723	LR115330	TRAY - BATTERY	LR115330 TRAY - BATTERY Lower / To: LH002102	$149.21	1
10723	LR128845	TRAY - BATTERY	LR128845 TRAY - BATTERY Lower / From: LH002103 / To: NH999999	$150.32	1
10723	LR167901	TRAY - BATTERY	LR167901 TRAY - BATTERY Lower / From: PH000001	$138.27	1

Hybrid Electrical Modules (Mhev Battery Housing, Cooling Ducts And Fans) (Halewood (Uk), Electric...

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel]

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] - Hybrid Electrical Modules (MHEV Battery Housing, Cooling Ducts and Fans) (Halewood (UK), Electric...
