Hybrid Electrical Modules (Onboard Battery Charger And Charge Inlet) (Itatiaia (Brazil), Electric...

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] - Hybrid Electrical Modules (Onboard Battery Charger And Charge Inlet) (Itatiaia (Brazil), Electric...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR139125 BOLT $1.05 To Order
Photo Part No Description Price (each) Stock
RYG500160 SCREW $0.64 To Order
Photo Part No Description Price (each) Stock
LR135351 WIRING - TRACTION BATTERY $28.60 To Order
Photo Part No Description Price (each) Stock
LR135608 TUBE - BREATHER $86.04 To Order
Photo Part No Description Price (each) Stock
LR135604 TUBE - BREATHER $42.82 To Order
Photo Part No Description Price (each) Stock
LR149546 PLUG - BLANKING $38.78 To Order
Photo Part No Description Price (each) Stock
LR143238 JUNCTION BOX $2,739.17 To Order
Photo Part No Description Price (each) Stock
LR135613 BRACKET - INTEGRATED BOX $133.81 To Order
Photo Part No Description Price (each) Stock
LR147020 BRACKET - INTEGRATED BOX $39.76 To Order
Photo Part No Description Price (each) Stock
LR147019 BRACKET - INTEGRATED BOX $26.49 To Order
View All

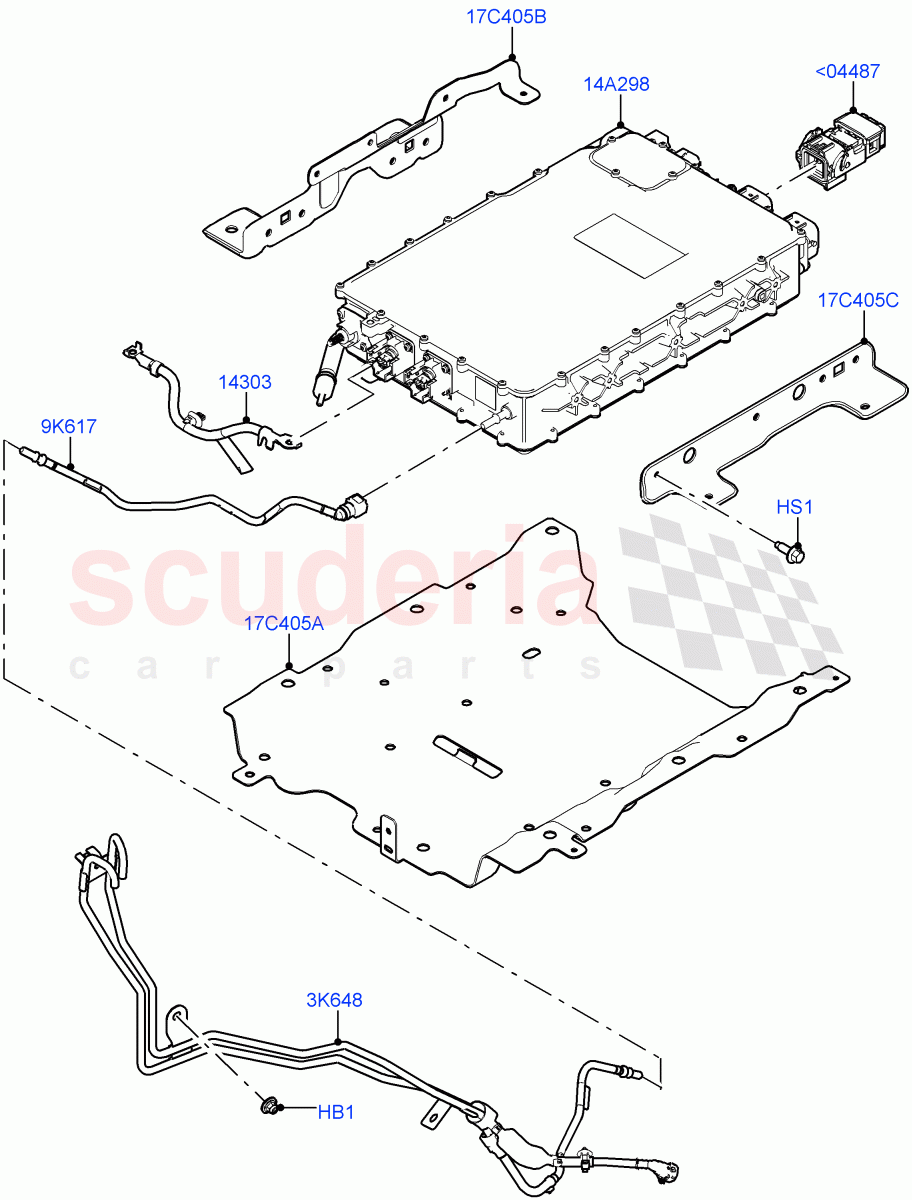

Hybrid Electrical Modules (Onboard Battery Charger And Charge Inlet) (Itatiaia (Brazil), Electric Engine Battery-PHEV) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<04487 LR149546
PLUG - BLANKING
Charge Socket AC + Chademo DC, RHD 		$38.78 1
HB1 LR139125
BOLT
M6X16 		$1.05 3
HS1 RYG500160
SCREW
Hexagonal Head, M6 X 14MM 		$0.64 8
3K648 LR135608
TUBE - BREATHER
Inverter, To Engine Bay 		$86.04 1
9K617 LR135604
TUBE - BREATHER
Battery Charger Inlet, Front 		$42.82 1
14A298 LR143238
JUNCTION BOX
Incorporates Battery Charging Control Module and DC-DC (EPIC-D) 		$2,739.17 1
17C405A LR135613
BRACKET - INTEGRATED BOX
Lower 		$133.81 1
17C405B LR147020
BRACKET - INTEGRATED BOX
Right Side 		$39.76 1
17C405C LR147019
BRACKET - INTEGRATED BOX
Left Side 		$26.49 1
14303 LR135351
WIRING - TRACTION BATTERY
Ground Wire 		$28.60 1
