Name: Hybrid Electrical Modules (MHEV Charging Cables and Fixings) (Changsu (China), Electric Engine Battery-MHEV)
Rating: 5.0 (1 reviews)

Hybrid Electrical Modules (MHEV Charging Cables and Fixings) (Changsu (China), Electric Engine Battery-MHEV) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] - Hybrid Electrical Modules (MHEV Charging Cables and Fixings) (Changsu (China), Electric Engine...

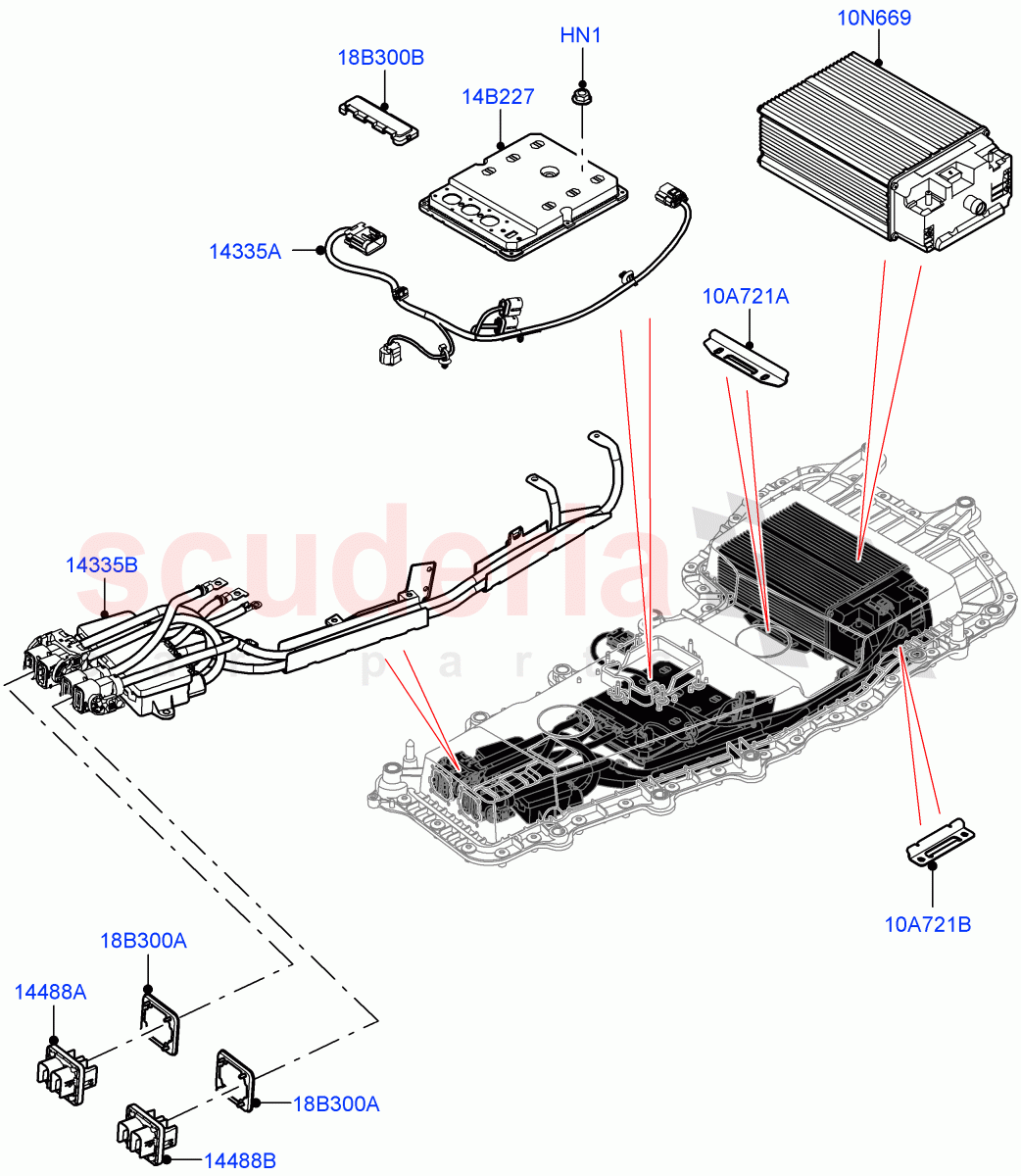

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR115327	LITHIUM ION BATTERY	$1,306.22	To Order
	LR139593	LITHIUM ION BATTERY	$1,109.79	To Order
	LR137929	LITHIUM ION BATTERY	$1,221.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115643	LINK LEAD - COOLING	$92.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR118014	CABLE - TRUNK	$233.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128988	CONNECTOR - CABLE	$9.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128992	CONNECTOR - CABLE	$26.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135617	CONVERTER - VOLTAGE	$820.92	To Order
	LR131043	CONVERTER - VOLTAGE	$818.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115506	CLAMP - BATTERY	$19.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115507	CLAMP - BATTERY	$19.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117838	COVER - WIRING	$6.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR118777	COVER - PWR SUPPLY DISTRIBUTION BOX	$15.13	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HN1	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 / From: KG006088 IN STOCK	$1.45	3
10A721A	LR115506	CLAMP - BATTERY	LR115506 CLAMP - BATTERY Front / From: KG006088	$19.73	1
10A721B	LR115507	CLAMP - BATTERY	LR115507 CLAMP - BATTERY Side / From: KG006088	$19.53	1
10N669	LR115327	LITHIUM ION BATTERY	LR115327 LITHIUM ION BATTERY From: KG006088 / To: LG560565	$1,306.22	1
10N669	LR139593	LITHIUM ION BATTERY	LR139593 LITHIUM ION BATTERY From: LG560566 / To: MG575834	$1,109.79	1
10N669	LR137929	LITHIUM ION BATTERY	LR137929 LITHIUM ION BATTERY From: MG575835	$1,221.62	1
14B227	LR135617	CONVERTER - VOLTAGE	LR135617 CONVERTER - VOLTAGE From: KG006088 / To: MG575834	$820.92	1
14B227	LR131043	CONVERTER - VOLTAGE	LR131043 CONVERTER - VOLTAGE From: MG575835	$818.04	1
18B300A	LR117838	COVER - WIRING	LR117838 COVER - WIRING Inner, Outer / From: KG006088	$6.84	2
18B300B	LR118777	COVER - PWR SUPPLY DISTRIBUTION BOX	LR118777 COVER - PWR SUPPLY DISTRIBUTION BOX Terminal Cover / From: KG006088	$15.13	1
14335A	LR115643	LINK LEAD - COOLING	LR115643 LINK LEAD - COOLING Cooling Fan Link Lead / From: KG006088	$92.44	1
14335B	LR118014	CABLE - TRUNK	LR118014 CABLE - TRUNK Harnes - Battery to Converter / From: KG006088	$233.67	1
14488A	LR128988	CONNECTOR - CABLE	LR128988 CONNECTOR - CABLE Code A / From: KG006088	$9.72	1
14488B	LR128992	CONNECTOR - CABLE	LR128992 CONNECTOR - CABLE Code B / From: KG006088	$26.45	1

Hybrid Electrical Modules (Mhev Charging Cables And Fixings) (Changsu (China), Electric Engine...
