Name: Fuel Tank & Related Parts (1.5L AJ20P3 Petrol High, Halewood (UK)) ((V) FROMMH000001)
Rating: 4.6 (1 reviews)

Fuel Tank & Related Parts (1.5L AJ20P3 Petrol High, Halewood (UK)) ((V) FROMMH000001) of Land Rover Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

View All

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Fuel Tank & Related Parts (1.5L AJ20P3 Petrol High, Halewood (UK)) ((V) FROMMH000001)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR088949	BOLT	$3.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR055988	CLIP - CABLE	$1.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061655	CLAMP - FUEL SUPPLY TUBE	$6.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006025	BOLT	$1.38	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR115125	RETAINER - RIVET	$1.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153412	TANK - FUEL	$965.86	To Order
	LR153413	TANK - FUEL	$999.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR138718	CAP - FUEL TANK FILLER	$39.22	To Order
	LR138720	CAP - FUEL TANK FILLER	$39.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115294	PIPE - FUEL FILLER	$111.62	To Order
	LR134934	PIPE - FUEL FILLER	$135.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125676	HOSE - FILLER PIPE	$47.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115407	STRAP - FUEL TANK	$58.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115796	HOSE - VENT	$89.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115342	TUBE - FUEL	$39.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128791	SHIELD - FUEL TANK	$154.86	To Order

View All

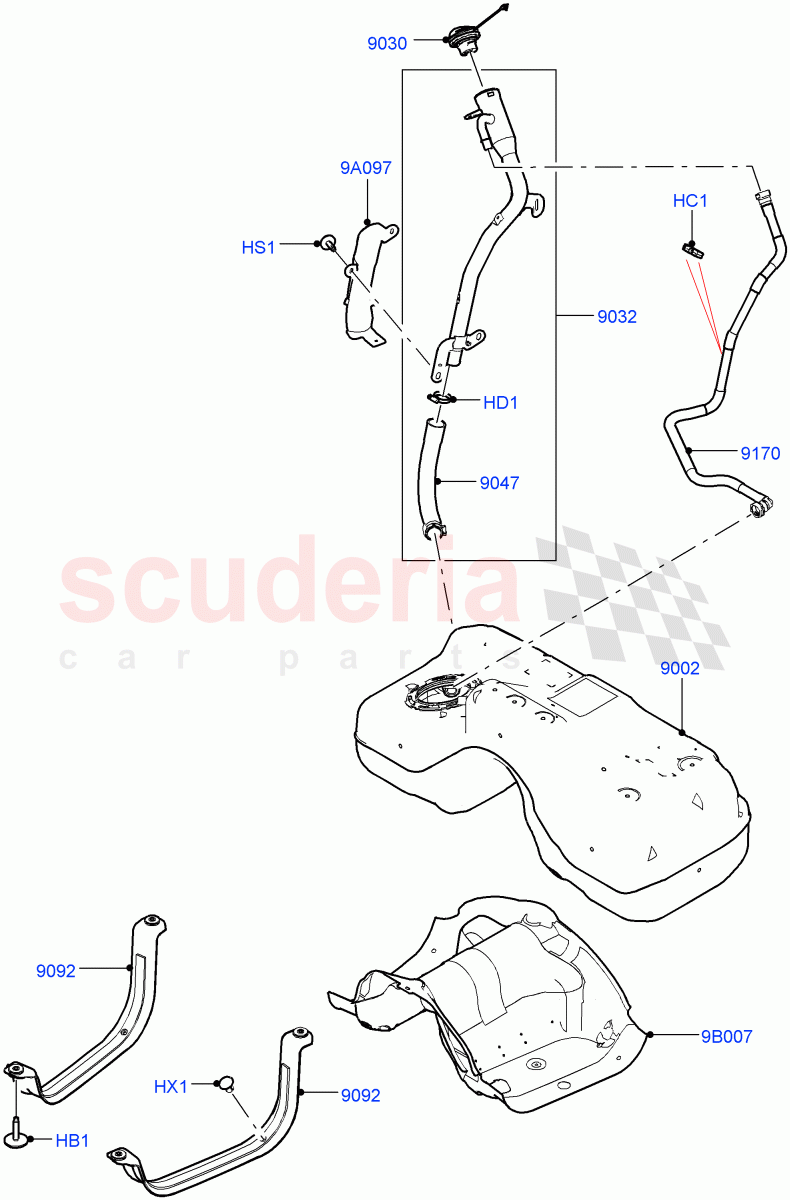

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR088949	BOLT	LR088949 BOLT Fuel Tank Strap, M6 X 40MM / From: MH000001	$3.95	4
HC1	LR055988	CLIP - CABLE	LR055988 CLIP - CABLE 16-22X6.4-7X0.7-4 / From: MH000001	$1.48	3
HD1	LR061655	CLAMP - FUEL SUPPLY TUBE	LR061655 CLAMP - FUEL SUPPLY TUBE 35-50 x 9 / From: MH000001	$6.11	1
HS1	LR006025	BOLT IN STOCK	LR006025 BOLT Bolt And Washer, M6 X 15 Hex / From: MH000001 IN STOCK	$1.38	3
HX1	LR115125	RETAINER - RIVET	LR115125 RETAINER - RIVET Fuel Tank Strap, Rivet Push Pin 7.8 - 8.8 X 0.8 - 9.5 Nylon / From: MH000001	$1.02	2
9A097	LR115342	TUBE - FUEL	LR115342 TUBE - FUEL Filler Pipe / From: MH000001	$39.21	1
9B007	LR128791	SHIELD - FUEL TANK	LR128791 SHIELD - FUEL TANK Fuel Tank / From: MH000001	$154.86	1
9002	LR153412	TANK - FUEL	LR153412 TANK - FUEL Petrol Tank With Leak Detection / From: MH000001	$965.86	1
9002	LR153413	TANK - FUEL	LR153413 TANK - FUEL Pet Tank W/O Leak Det - Std Filter / From: MH000001	$999.66	1
9030	LR138718	CAP - FUEL TANK FILLER	LR138718 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - Unleaded / From: MH000001	$39.22	1
9030	LR138720	CAP - FUEL TANK FILLER	LR138720 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - DMTL / From: MH000001	$39.22	1
9032	LR115294	PIPE - FUEL FILLER	LR115294 PIPE - FUEL FILLER Fuel Tank Filler Neck - DMTL / From: MH000001	$111.62	1
9032	LR134934	PIPE - FUEL FILLER	LR134934 PIPE - FUEL FILLER Fuel Tank Filler Neck - Unleaded / From: MH000001	$135.47	1
9047	LR125676	HOSE - FILLER PIPE	LR125676 HOSE - FILLER PIPE From: MH000001	$47.17	1
9092	LR115407	STRAP - FUEL TANK	LR115407 STRAP - FUEL TANK RH/LH / From: MH000001	$58.89	2
9170	LR115796	HOSE - VENT	LR115796 HOSE - VENT Fuel Tank Filler Neck - Unleaded / From: MH000001	$89.72	1

Fuel Tank & Related Parts (1.5L Aj20P3 Petrol High, Halewood (Uk)) ((V) Frommh000001)

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Fuel Tank & Related Parts (1.5L AJ20P3 Petrol High, Halewood (UK)) ((V) FROMMH000001)
