Carbon Canister (1.5L Aj20P3 Petrol High Phev, Halewood (Uk), Tank Phev) ((V) Fromlh000001)

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

Find Your Part

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Carbon Canister (1.5L AJ20P3 Petrol High PHEV, Halewood (UK), Tank PHEV) ((V) FROMLH000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR055988 CLIP - CABLE $1.48 To Order
Photo Part No Description Price (each) Stock
LR060351 CLIP - HOSE $4.44 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.47 IN STOCK
Photo Part No Description Price (each) Stock
RYG500160 SCREW $0.63 To Order
Photo Part No Description Price (each) Stock
RYQ500070 PIN - RETAINING 6.3 X 22MM $1.51 IN STOCK
Photo Part No Description Price (each) Stock
LR135806 TUBE - FUEL VAPOUR SEPARATOR $113.77 To Order
LR146707 TUBE - FUEL VAPOUR SEPARATOR $114.62 To Order
Photo Part No Description Price (each) Stock
LR135251 HOSE - FUEL VAPOUR $552.58 To Order
LR146543 HOSE - FUEL VAPOUR $556.84 To Order
Photo Part No Description Price (each) Stock
LR135258 BRACKET $8.57 To Order
Photo Part No Description Price (each) Stock
LR135254 TUBE - VENTILATION $99.88 To Order
Photo Part No Description Price (each) Stock
LR135255 TUBE - FUEL VAPOUR $48.42 To Order
Photo Part No Description Price (each) Stock
LR166426 WIRE - JUMPER $29.08 To Order
Photo Part No Description Price (each) Stock
LR135805 CANNISTER - FUEL VAPOUR STORE $496.03 To Order
Photo Part No Description Price (each) Stock
LR027061 RESERVOIR - FUEL VAPOUR SYSTEM $253.87 To Order
View All

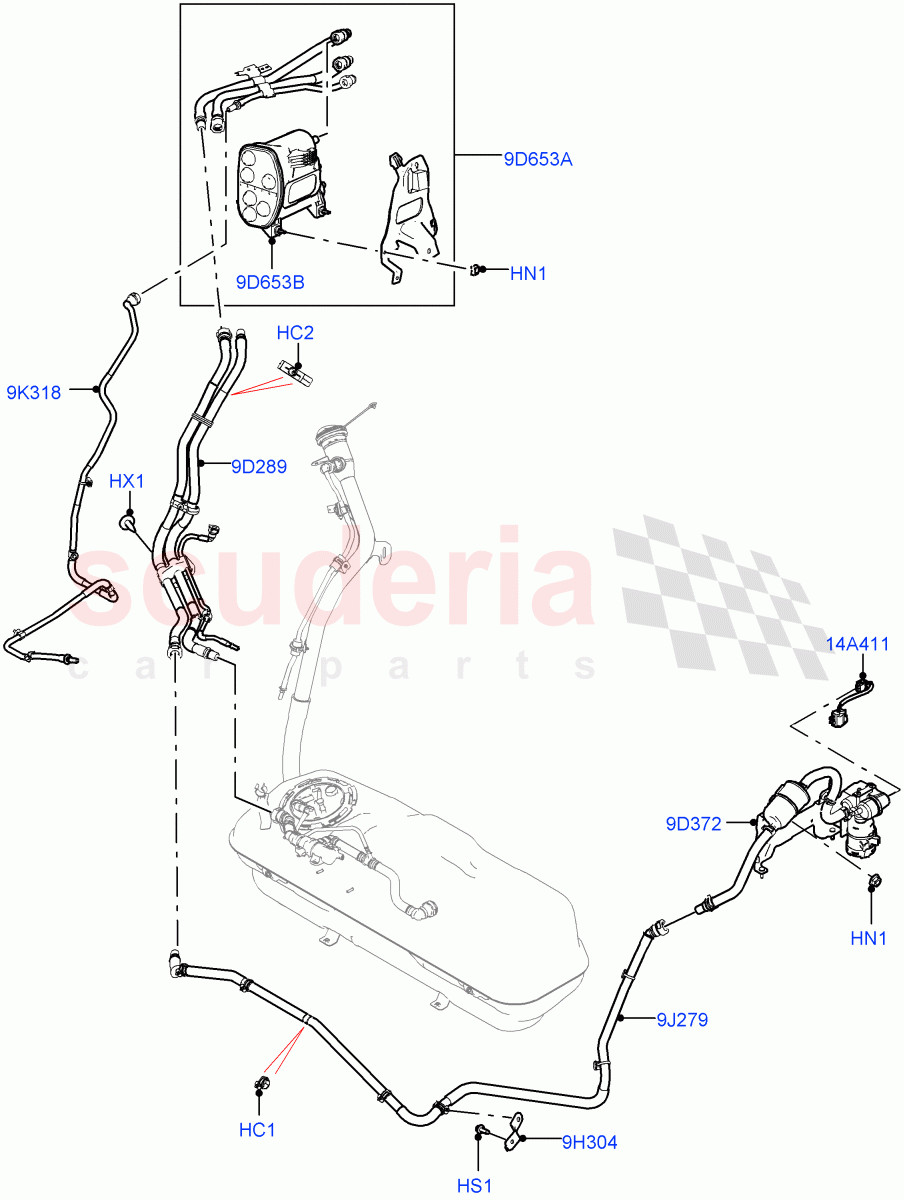

Carbon Canister (1.5L AJ20P3 Petrol High PHEV, Halewood (UK), Tank PHEV) ((V) FROMLH000001) of Land Rover Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR055988
CLIP - CABLE
16-22X6.4-7X0.7-4, Fuel Vapor Hose / From: LH000001 		$1.48 5
HC2 LR060351
CLIP - HOSE
From: LH000001 		$4.44 1
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: LH000001
IN STOCK 		$1.47 7
HS1 RYG500160
SCREW
Bracket, Hexagonal Head, M6 X 14MM / From: LH000001 		$0.63 1
HX1 RYQ500070
PIN - RETAINING 6.3 X 22MM
6.3 X 22MM, Push Pin / From: LH000001
IN STOCK 		$1.51 1
9D289 LR135806
TUBE - FUEL VAPOUR SEPARATOR
From: LH000001 / To: LH110392 		$113.77 1
9D289 LR146707
TUBE - FUEL VAPOUR SEPARATOR
From: LH110393 		$114.62 1
9D372 LR135251
HOSE - FUEL VAPOUR
Complete Assembly / From: LH000001 / To: MH123296 		$552.58 1
9D372 LR146543
HOSE - FUEL VAPOUR
Complete Assembly / From: MH123297 		$556.84 1
9D653A LR135805
CANNISTER - FUEL VAPOUR STORE
Complete Assembly / From: LH000001 		$496.03 1
9D653B LR027061
RESERVOIR - FUEL VAPOUR SYSTEM
Charcoal Cannister / From: LH000001 		$253.87 1
9H304 LR135258
BRACKET
Fuel Vapor Hose / From: LH000001 		$8.57 1
9J279 LR135254
TUBE - VENTILATION
Fuel Vapor Hose / From: LH000001 		$99.88 1
9K318 LR135255
TUBE - FUEL VAPOUR
From: LH000001 		$48.42 1
14A411 LR166426
WIRE - JUMPER
From: LH000001 		$29.08 1
