Name: Carbon Canister (1.5L AJ20P3 Petrol High PHEV, Changsu (China))
Rating: 5.0 (1 reviews)

Carbon Canister (1.5L AJ20P3 Petrol High PHEV, Changsu (China)) of Land Rover Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

View All

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Carbon Canister (1.5L AJ20P3 Petrol High PHEV, Changsu (China))

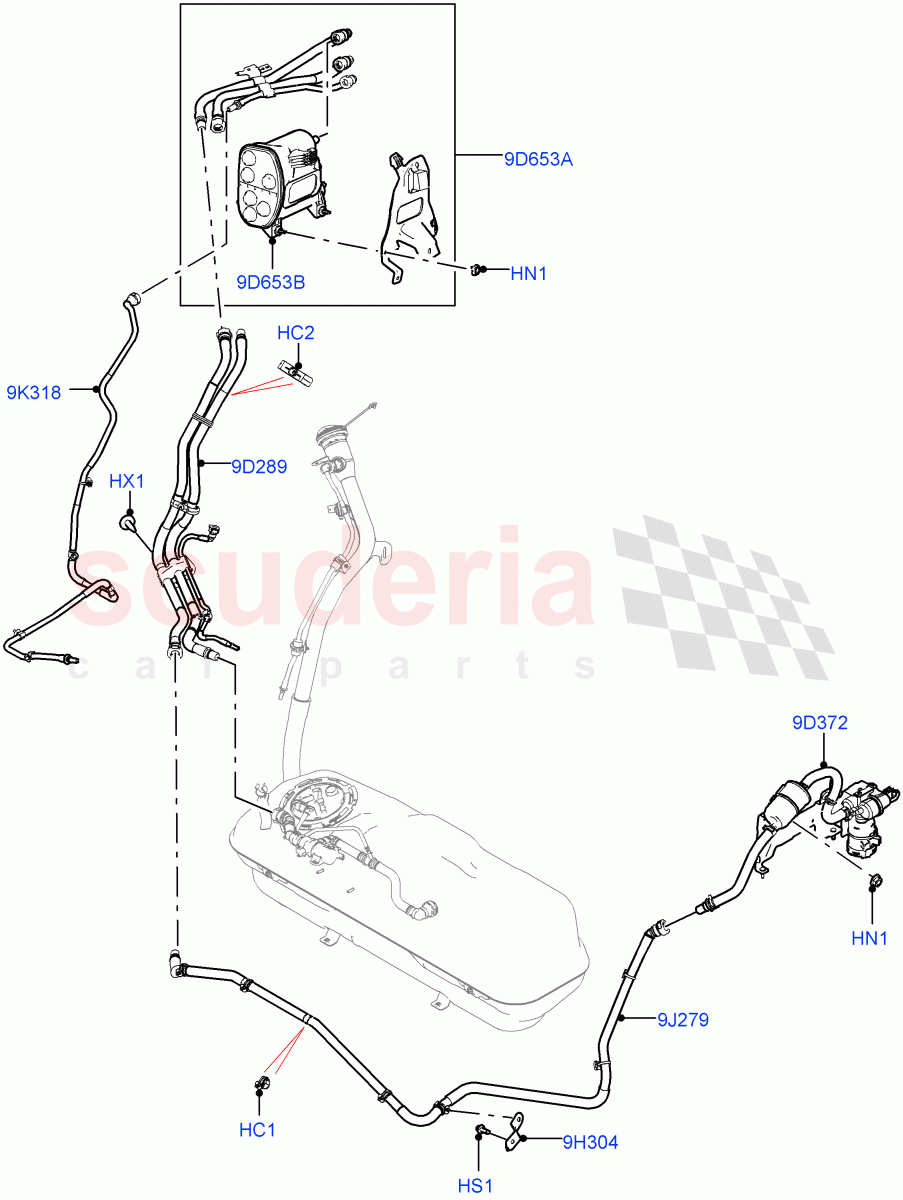

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR055988	CLIP - CABLE	$1.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060351	CLIP - HOSE	$4.43	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.46	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500160	SCREW	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	RYQ500070	PIN - RETAINING 6.3 X 22MM	$1.50	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR155681	TUBE - FUEL VAPOUR SEPARATOR	$176.04	To Order
	LR146707	TUBE - FUEL VAPOUR SEPARATOR	$114.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR146543	HOSE - FUEL VAPOUR	$556.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135258	BRACKET	$8.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR155682	TUBE - VENTILATION	$95.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR155684	TUBE - FUEL VAPOUR	$65.14	To Order
	LR135255	TUBE - FUEL VAPOUR	$48.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135253	CANNISTER - FUEL VAPOUR STORE	$528.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR145278	RESERVOIR	$253.83	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR055988	CLIP - CABLE	LR055988 CLIP - CABLE 16-22X6.4-7X0.7-4, Fuel Vapor Hose / From: MG575835	$1.48	5
HC2	LR060351	CLIP - HOSE	LR060351 CLIP - HOSE From: MG575835	$4.43	1
HN1	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 / From: MG575835 IN STOCK	$1.46	7
HS1	RYG500160	SCREW	RYG500160 SCREW Bracket, Hexagonal Head, M6 X 14MM / From: MG575835	$0.63	1
HX1	RYQ500070	PIN - RETAINING 6.3 X 22MM IN STOCK	RYQ500070 PIN - RETAINING 6.3 X 22MM 6.3 X 22MM, Push Pin / From: MG575835 IN STOCK	$1.50	1
9D289	LR155681	TUBE - FUEL VAPOUR SEPARATOR	LR155681 TUBE - FUEL VAPOUR SEPARATOR Long Wheelbase / From: MG575835	$176.04	1
9D289	LR146707	TUBE - FUEL VAPOUR SEPARATOR	LR146707 TUBE - FUEL VAPOUR SEPARATOR Standard Wheelbase / From: MG575835	$114.53	1
9D372	LR146543	HOSE - FUEL VAPOUR	LR146543 HOSE - FUEL VAPOUR Complete Assembly / From: MG575835	$556.42	1
9D653A	LR135253	CANNISTER - FUEL VAPOUR STORE	LR135253 CANNISTER - FUEL VAPOUR STORE Complete Assembly / From: MG575835	$528.25	1
9D653B	LR145278	RESERVOIR	LR145278 RESERVOIR Charcoal Cannister / From: MG575835	$253.83	1
9H304	LR135258	BRACKET	LR135258 BRACKET Fuel Vapor Hose / From: MG575835	$8.56	1
9J279	LR155682	TUBE - VENTILATION	LR155682 TUBE - VENTILATION Fuel Vapor Hose / From: MG575835	$95.30	1
9K318	LR155684	TUBE - FUEL VAPOUR	LR155684 TUBE - FUEL VAPOUR Long Wheelbase / From: MG575835	$65.14	1
9K318	LR135255	TUBE - FUEL VAPOUR	LR135255 TUBE - FUEL VAPOUR Standard Wheelbase / From: MG575835	$48.38	1

Carbon Canister (1.5L Aj20P3 Petrol High Phev, Changsu (China))

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Carbon Canister (1.5L AJ20P3 Petrol High PHEV, Changsu (China))
