Fuel Tank & Related Parts (1.5L Aj20P3 Petrol High Phev, Halewood (Uk)) ((V) Fromlh000001)

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

Find Your Part

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Fuel Tank & Related Parts (1.5L AJ20P3 Petrol High PHEV, Halewood (UK)) ((V) FROMLH000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR114228 BOLT AND WASHER - HEX.HEAD $1.76 To Order
Photo Part No Description Price (each) Stock
LR139168 BOLT $9.82 To Order
Photo Part No Description Price (each) Stock
LR006655 CLIP $1.23 To Order
Photo Part No Description Price (each) Stock
LR061655 CLAMP - FUEL SUPPLY TUBE $6.12 To Order
Photo Part No Description Price (each) Stock
RYH500420 NUT AND WASHER - HEX. $0.44 IN STOCK
Photo Part No Description Price (each) Stock
LR042472 SCREW $0.99 To Order
Photo Part No Description Price (each) Stock
LR006025 BOLT $1.39 IN STOCK
Photo Part No Description Price (each) Stock
LR135216 TANK - FUEL $1,175.85 To Order
LR146459 TANK - FUEL $1,314.35 To Order
Photo Part No Description Price (each) Stock
LR138720 CAP - FUEL TANK FILLER $39.29 To Order
Photo Part No Description Price (each) Stock
LR135201 PIPE - FUEL FILLER $283.65 To Order
LR147250 PIPE - FUEL FILLER $320.30 To Order
LR156353 PIPE - FUEL FILLER $312.95 To Order
Photo Part No Description Price (each) Stock
LR135200 HOSE - FILLER PIPE $93.36 To Order
Photo Part No Description Price (each) Stock
LR135214 VALVE - NON RETURN $279.97 To Order
Photo Part No Description Price (each) Stock
LR139164 STRAP - FUEL TANK $58.99 To Order
LR146461 STRAP - FUEL TANK $149.81 To Order
Photo Part No Description Price (each) Stock
LR139165 STRAP - FUEL TANK $98.36 To Order
LR146460 STRAP - FUEL TANK $149.81 To Order
Photo Part No Description Price (each) Stock
LR115342 TUBE - FUEL $39.28 To Order
Photo Part No Description Price (each) Stock
LR137829 LINK $182.35 To Order
Photo Part No Description Price (each) Stock
LR135819 FOAM PAD - ENERGY ABSORBING $32.15 To Order
Photo Part No Description Price (each) Stock
LR135818 FOAM PAD - ENERGY ABSORBING $23.24 To Order
Photo Part No Description Price (each) Stock
LR135211 TUBE - VENTILATION $138.80 To Order
Photo Part No Description Price (each) Stock
LR135213 TUBE - VENTILATION $63.76 To Order
View All

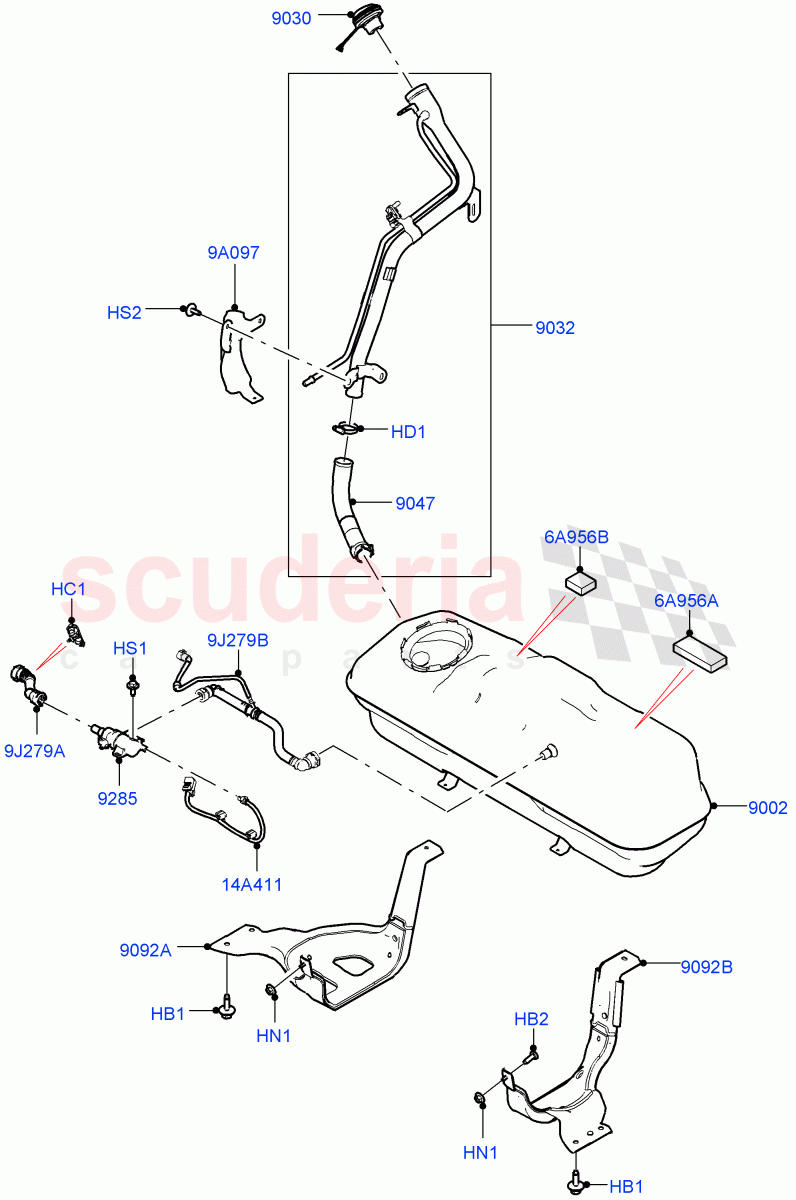

Fuel Tank & Related Parts (1.5L AJ20P3 Petrol High PHEV, Halewood (UK)) ((V) FROMLH000001) of Land Rover Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR114228
BOLT AND WASHER - HEX.HEAD
Fuel Tank Strap, M8 x 27MM / From: LH000001 		$1.76 6
HB2 LR139168
BOLT
Fuel Tank To Shield, M6 X 16MM / From: LH000001 		$9.82 2
HC1 LR006655
CLIP
14+12-20.5 X 7.5 X 1-3 / From: LH000001 		$1.23 1
HD1 LR061655
CLAMP - FUEL SUPPLY TUBE
35-50 x 9 / From: LH000001 		$6.12 1
HN1 RYH500420
NUT AND WASHER - HEX.
Fuel Tank Strap, Hexagonal Head, M6, Nut And Washer / From: LH000001
IN STOCK 		$0.44 1
HS1 LR042472
SCREW
Hexagonal Head, M6 X 16MM, To Valve / From: LH000001 		$0.99 1
HS2 LR006025
BOLT
Bolt And Washer, M6 X 15 Hex, Shield / From: LH000001
IN STOCK 		$1.39 3
6A956A LR135819
FOAM PAD - ENERGY ABSORBING
120 x 50 x 20 mm / From: LH000001 		$32.15 4
6A956B LR135818
FOAM PAD - ENERGY ABSORBING
50 x 45 x 20 mm / From: LH000001 		$23.24 3
9A097 LR115342
TUBE - FUEL
Filler Pipe / From: LH000001 		$39.28 1
9J279A LR135211
TUBE - VENTILATION
To Valve / From: LH000001 		$138.80 1
9J279B LR135213
TUBE - VENTILATION
To Tank / From: LH000001 		$63.76 1
14A411 LR137829
LINK
From: LH000001 		$182.35 1
9002 LR135216
TANK - FUEL
From: LH000001 / To: MH152985 		$1,175.85 1
9002 LR146459
TANK - FUEL
From: MH152986 		$1,314.35 1
9030 LR138720
CAP - FUEL TANK FILLER
From: LH000001 		$39.29 1
9032 LR135201
PIPE - FUEL FILLER
From: LH000001 / To: LH999999 		$283.65 1
9032 LR147250
PIPE - FUEL FILLER
From: MH000001 / To: MH158368 		$320.30 1
9032 LR156353
PIPE - FUEL FILLER
From: MH158369 		$312.95 1
9047 LR135200
HOSE - FILLER PIPE
Fuel Tank, Inlet / From: LH000001 		$93.36 1
9092A LR139164
STRAP - FUEL TANK
RH / From: LH000001 / To: MH152985 		$58.99 1
9092A LR146461
STRAP - FUEL TANK
RH / From: MH152986 		$149.81 1
9092B LR139165
STRAP - FUEL TANK
LH / From: LH000001 / To: MH152985 		$98.36 1
9092B LR146460
STRAP - FUEL TANK
LH / From: MH152986 		$149.81 1
9285 LR135214
VALVE - NON RETURN
From: LH000001 		$279.97 1
