Fuel Lines (1.5L Aj20P3 Petrol High, 8 Speed Automatic Trans 8G30, Changsu (China))

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

Find Your Part

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Fuel Lines (1.5L AJ20P3 Petrol High, 8 Speed Automatic Trans 8G30, Changsu (China))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500200 BOLT $0.66 To Order
Photo Part No Description Price (each) Stock
RYG500470 SCREW $0.61 To Order
Photo Part No Description Price (each) Stock
LR126054 SCREW $5.35 To Order
Photo Part No Description Price (each) Stock
LR133032 SHIELD - FUEL TUBES $80.23 To Order
Photo Part No Description Price (each) Stock
LR115335 PIPE - FUEL $187.56 To Order
LR139134 PIPE - FUEL $222.60 To Order
Photo Part No Description Price (each) Stock
LR115399 SHIELD - FUEL TUBES $44.13 To Order
Photo Part No Description Price (each) Stock
LR117831 CLIP $3.59 To Order
Photo Part No Description Price (each) Stock
LR115401 TUBE - FUEL SUPPLY AND VAPOUR $215.83 To Order
LR135720 TUBE - FUEL SUPPLY AND VAPOUR $217.36 To Order
Photo Part No Description Price (each) Stock
LR125411 TUBE - FUEL VAPOUR $214.14 To Order
View All

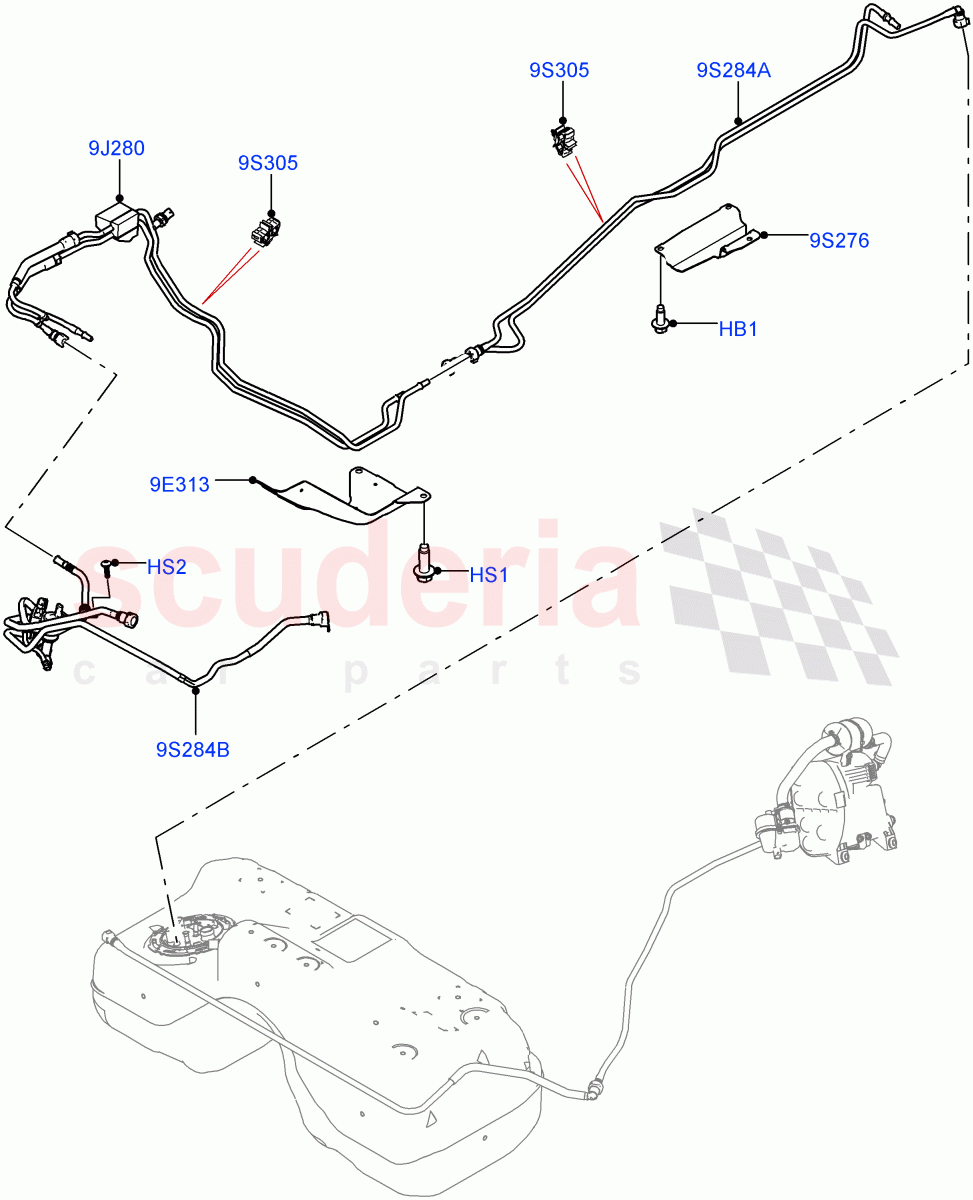

Fuel Lines (1.5L AJ20P3 Petrol High, 8 Speed Automatic Trans 8G30, Changsu (China)) of Land Rover Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYG500200
BOLT
Hexagonal Head, M8 X 16MM, Rear, Shield 		$0.66 3
HS1 RYG500470
SCREW
Front, Hexagonal Head, M10 X 25MM, Shield 		$0.61 3
HS2 LR126054
SCREW
M6 X 20MM 		$5.35 1
9E313 LR133032
SHIELD - FUEL TUBES
Front / From: KG006088 		$80.23 1
9J280 LR115335
PIPE - FUEL
Front / To: LG566155 		$187.56 1
9J280 LR139134
PIPE - FUEL
Front / From: LG566156 		$222.60 1
9S276 LR115399
SHIELD - FUEL TUBES
Rear 		$44.13 1
9S284A LR115401
TUBE - FUEL SUPPLY AND VAPOUR
Rear 		$215.83 1
9S284A LR135720
TUBE - FUEL SUPPLY AND VAPOUR
Rear / From: KG101870 		$217.36 1
9S284B LR125411
TUBE - FUEL VAPOUR
Front, With Vapour Purge Valve 		$214.14 1
9S305 LR117831
CLIP
Clip-Fuel Tube(Dual Latch) 		$3.59 8
